KLD805 80G FM Radar Level Sensor
Introduction
Apure radar level meter is operating at 76-81 GHz, which has a maximum measuring range of 100m and a minimum blind zone of 10cm. It supports 4-wire and 2-wire applications.
Higher operating frequency and shorter wavelength make it ideal for solid applications, including those with extreme dust and high temperature to + 200℃. The radar consists of an electronic circuit coupled to a lens antenna and flange for quick and easy positioning.
Feature
PTFE material:Being hydrophobic, non-wetting, high density and resistant to high temperatures.
ADVANTAGES OF USING PTFE FILLED COMPOUNDS
• Excellent chemical resistance
• Wide range of service temperature
• Excellent dielectric properties
• Non stick, low friction
• No embrittlement or ageing
• Smooth surface finish can be achieved
• Non wetting
• Outstanding corrosion protection
• Electrical insulation
• High thermal stability and flame resistance
• Resistance to weathering
• Food grade compliancy
|

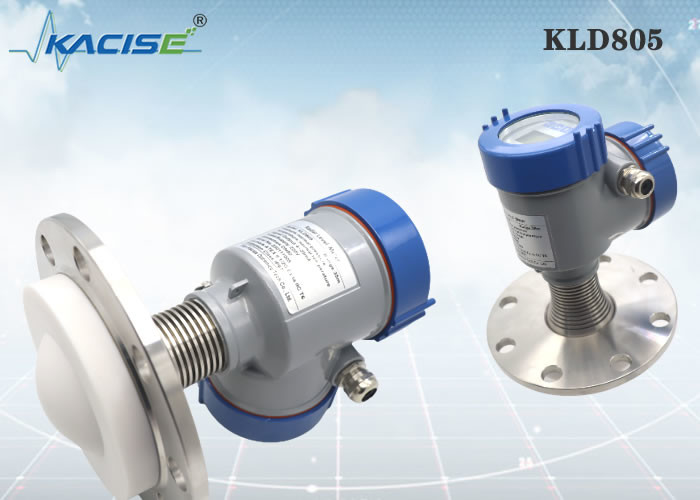

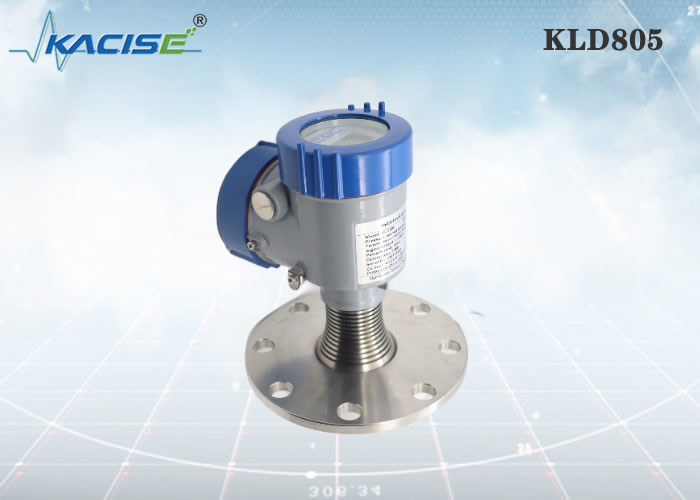

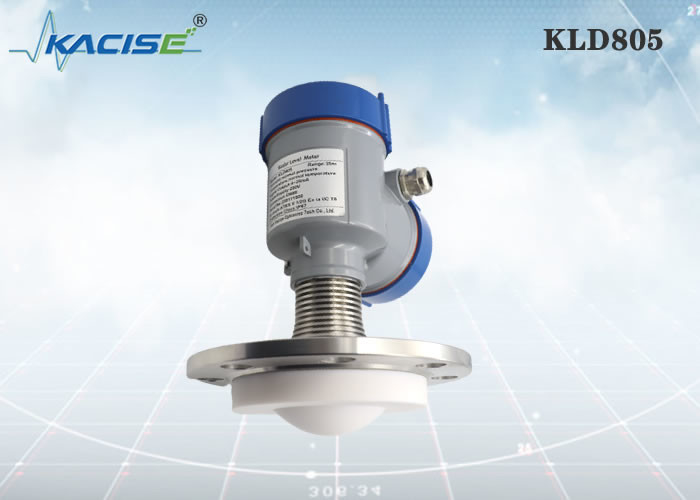

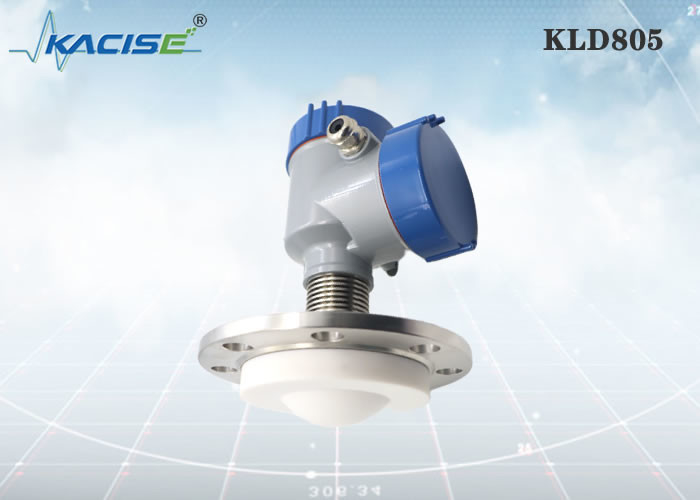

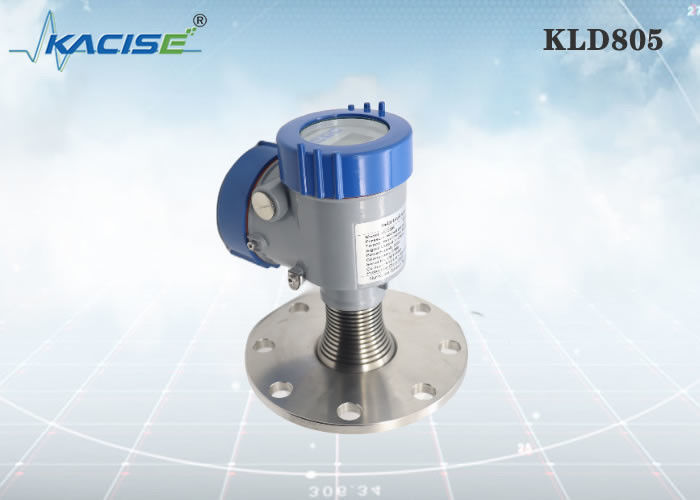

KLD805
|
Medium: strong corrosive liquid, steam, foam,
high temperature. and high pressure
Measuring range: 0.1m~10/20/30/60/100m
Process connection: flange ≥ DN80
Process temperature: -40～200℃
Process pressure: -0.1～2.5MPa
Antenna size: 76mm lens antenna (according to flange size)
Antenna material: PTFE/overall filling
Accuracy: ±1mm
Protection class: IP67
Center frequency: 80GHz
Launch angle: 3°
Power supply: two-wire /DC24V
four-wire /DC12~24V
four-wire /AC220V
Casing: aluminum / plastic / stainless steel
Signal output: two-wire /4...20mA/HART protocol
four-wire 4...20mA/ RS485 Modbus
|
Installation
1.Flange Installation
When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.
① datum plane
② vessel center or axis of symmetry
2.Hoisting Installation
Installation Requirements
When installing the instrument, avoid installing it above the material inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.
Under extremely complex working conditions, the instrument can work normally if there is no obstacle in the area with a radius of 20cm centered on the installation point.
Installation connection diagram:
The maximum installation spool height H max depends on the installation spool diameter D and the size of the product launch angle.
Too long installation connection will affect the radar performance.
Dimensions
Casing Dimension
Unit in mm:
