Fuel / Urea Solution / Water Submersible Pressure Level Sensor Suitable For Petrochemical Metallurgy

Water Submersible Pressure Level Sensor

Introduction

GXPS series liquid submersible pressure level transmitter normal level transmitter is a special structure and use of products, high precision, small size, good stability, which with abrasion, oil, acid and alkali resistant, high-intensity air conductivity cable to meet a variety of special-purpose level measurement site.Widely use sewage river water processing, ditch large rivers reservoir lakes coast geology hydrological monitoring

Passed the intrinsically safe mold, explosion proof certificate, and CE

Measuring various fluid for the user choice.

Application field

• Deep well level measuring
• Hydrologic measurement for river, lake, sea
• Sewage treatment
• Muddy level measuring
• Fluid reservoir level measuring
• Water-saving irrigation
• Circulating liquid consumption monitoring
• Diversion works

Parameter of water submersible pressure level sensor

Electronic interface and signals definition

Ordering information of water submersible pressure level sensor

GXType-Range-Output-Accuracy-Power-Structure-Cable length-Package-Others

1. Type: PS400 normal level transmitter
2. Range: 1m.500m= the upper limitation of the range
3. Output: A=4~20mA, V0=0~5Vdc. V1=0~10Vdc
4. Accuracy: 0.25=±0.25%F.S, 0.5=±0.5%F.S, 1.0=±1.0%F.S
5. Power: 24VDC,
6. Structure:S1 =universal type, S2=thread mounted, S3=Submersible & thread type, S4=Sediment prevention, S5=minor diameter, S6=antifouling, S7 =High density
7. Cable length: XXm=XX meter 1-150m
8. Package: Bb, Foam
9. Others: C=common grade(-40°C~85°C) , A=advanced grade(-40 °C~125 °C)

In order to choose the suitable products for you, please send us below information with the feedback.

1. pressure range
2. accuracy
3. output signal
4. power supply voltage
5. pressure port
6. elec. connection
7. medium
8. temperature range

9.cable length

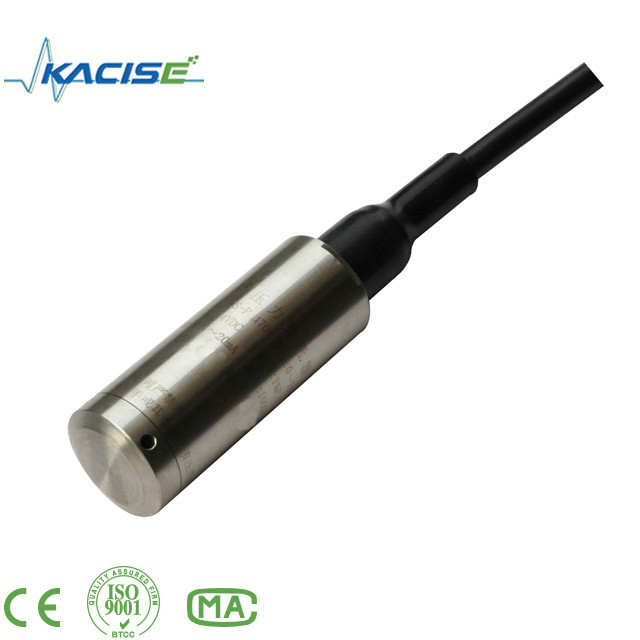

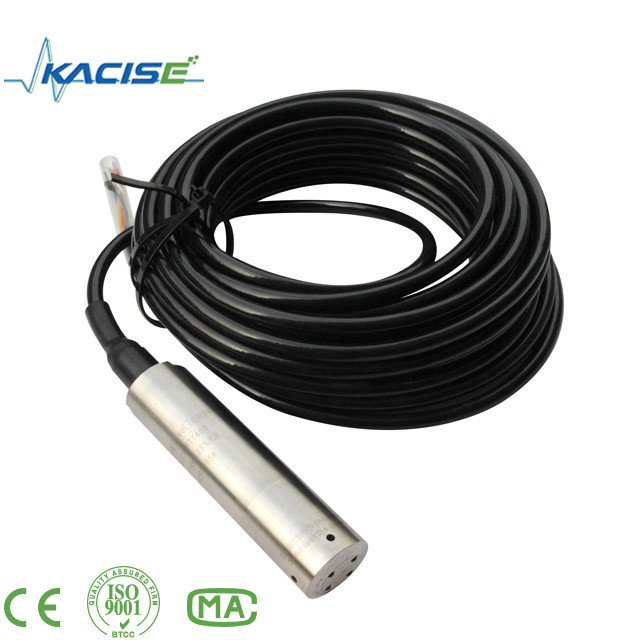

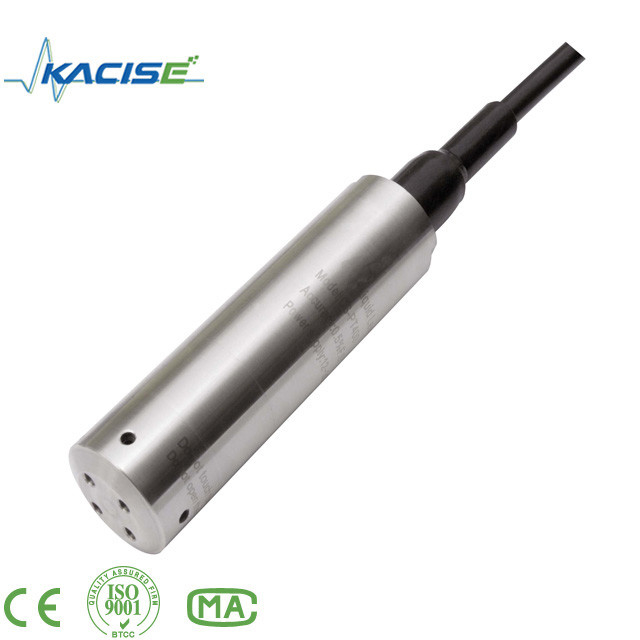

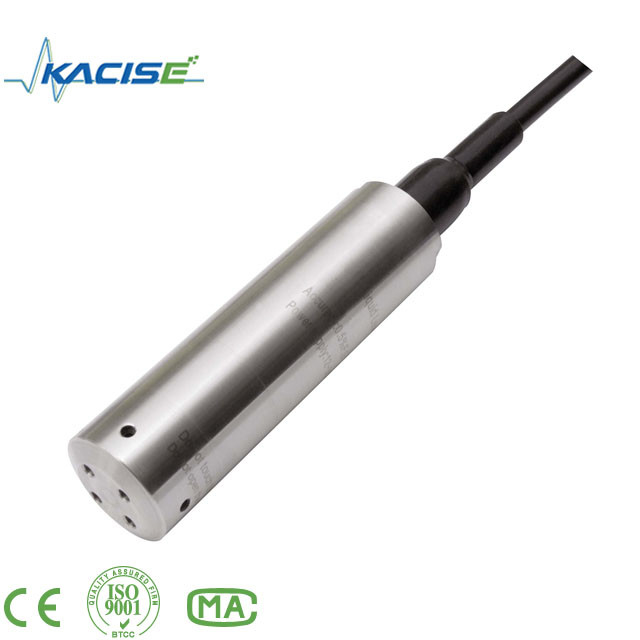

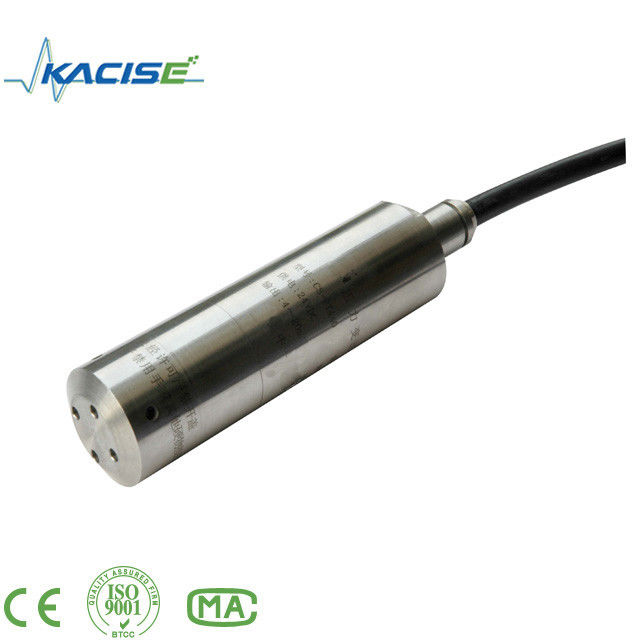

Product Picture of water submersible pressure level sensor
