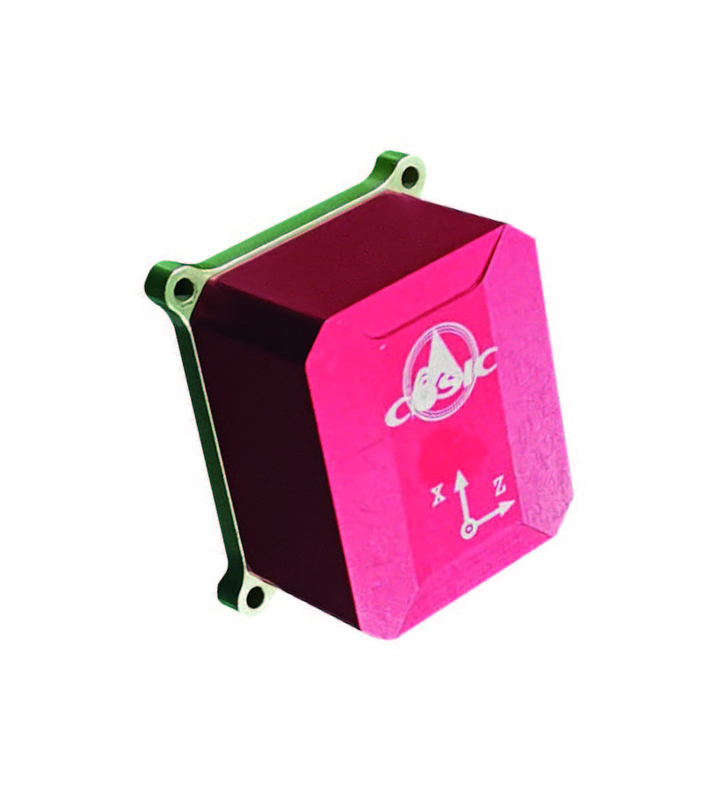

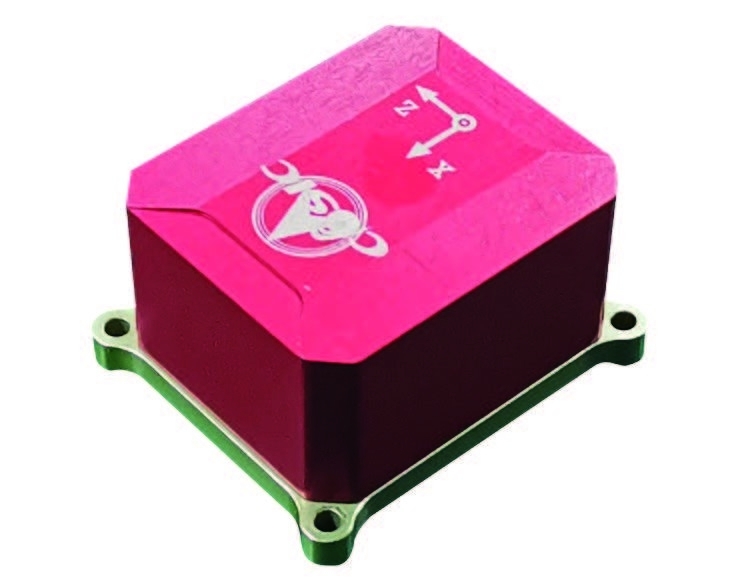

KsINS-W72 MEMS inertial/satellite integrated navigation system
product description:
KsINS-W72 is a small high-precision MEMS serialized product. It consists of 3 high-precision MEMS gyroscopes, 3 high-precision MEMS accelerometers, a microprocessor, and a satellite receiver. It is suitable for various types of integrated navigation and short-term pure navigation. Inertial navigation, guidance and control application fields.
The basic functions of the integrated navigation system are as follows:
● With self-test function, it automatically enters the working mode after the self-test is completed.
● The working mode has integrated navigation and inertial navigation capabilities, and can output position, speed, attitude, angular rate and acceleration information
Ability
● With service mode, it has functions such as uploading and downloading programs and parameters, changing configurations, and self-diagnosis.
Features:
● Small size, light weight, low power consumption, flexible application
● Serialized products, gyroscope, accelerometer, satellite receiver optional
Application fields and application modes:
Used in various types of drones, unmanned vehicles, guided munitions, surveying and mapping and other fields.
Performance indicators :
| |
High precision |
Medium precision |
| Alignment time (min) |
1min~5min |
|
Navigation
(1σ)
|
Position accuracy (m) |
Horizontal 10; Vertical 15 |
| Speed accuracy (m/s) |
Horizontal 0.1; vertical 0.2 |
| Attitude accuracy (°) |
Level<0.3; heading binding + maneuver<0.4 |
|
Satellite outage for 1 minute
(1σ)
|
Position accuracy (m) |
45 |
60 |
| Speed accuracy (m/s) |
1.5 |
2.5 |
| Heading accuracy (°) |
0.5 |
0.6 |
| Horizontal attitude accuracy (°) |
0.4 |
0.5 |
Application environment :
| Working/storage temperature(℃) |
-40～+60 |
| MTBF(h) |
2000 |
| Dynamic Range |
|
| Mechanical properties |
Vibration 6.06g, shock 80g/1ms |
Physical properties:
| Dimensions |
60.6mm×51.6mm×33m (including installation) |
| Installation dimensions |
53.6mm×44.6mm |
| weight |
≤ 130g (excluding antenna ) |
External Interface:
| powered by |
+4.5V~+36V |
| Power consumption |
≤ 4.5W
(Antenna not included, antenna power consumption
Not more than 0.5W)
|
|
Input/output interface
|
RS422A |
| Data output frequency |
200Hz |
