Product Description:

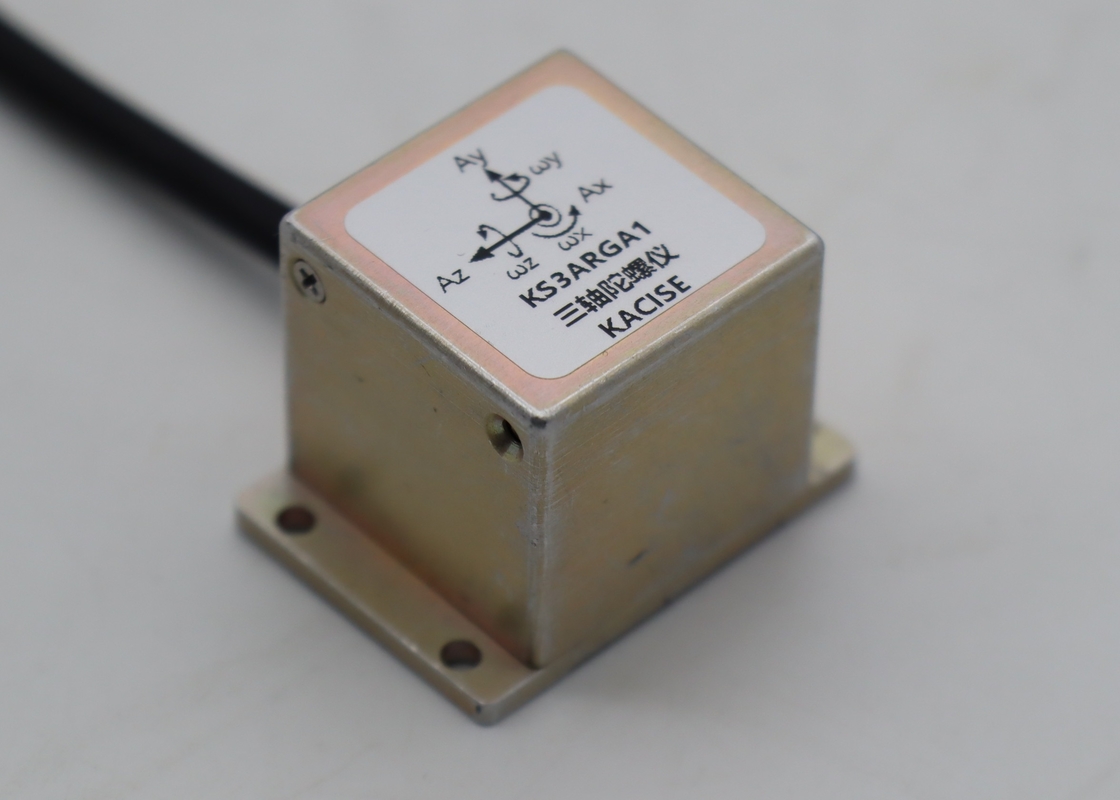

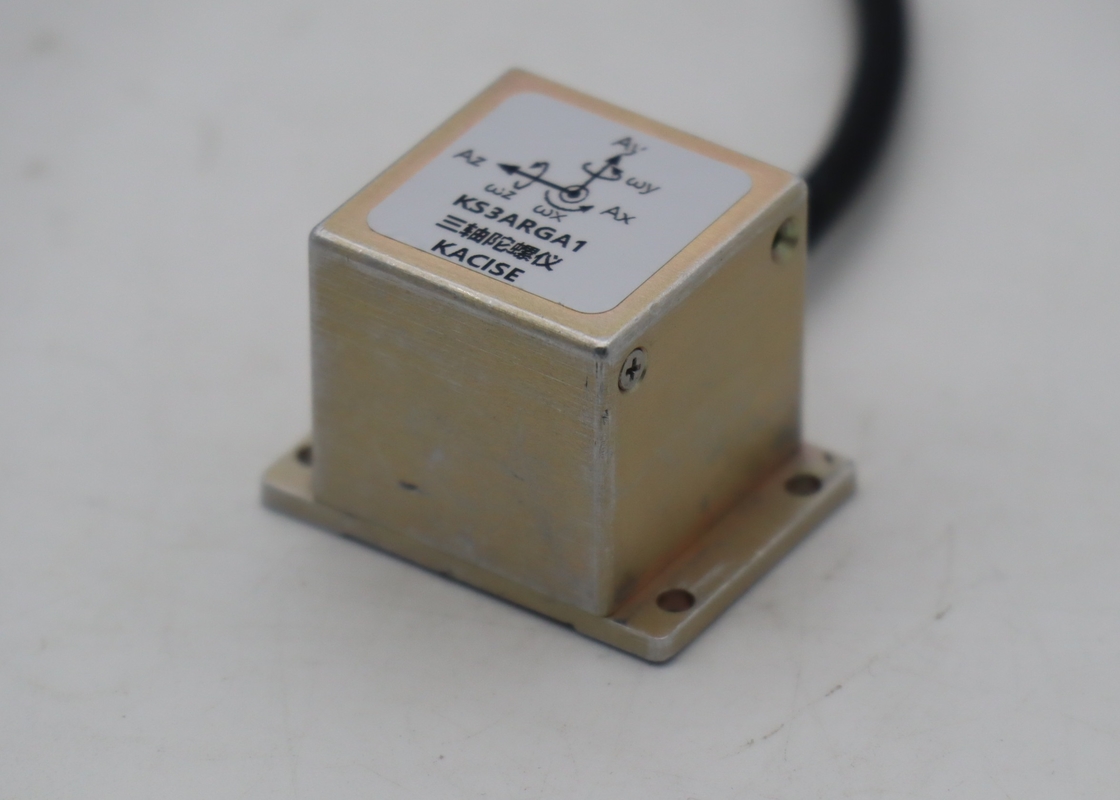

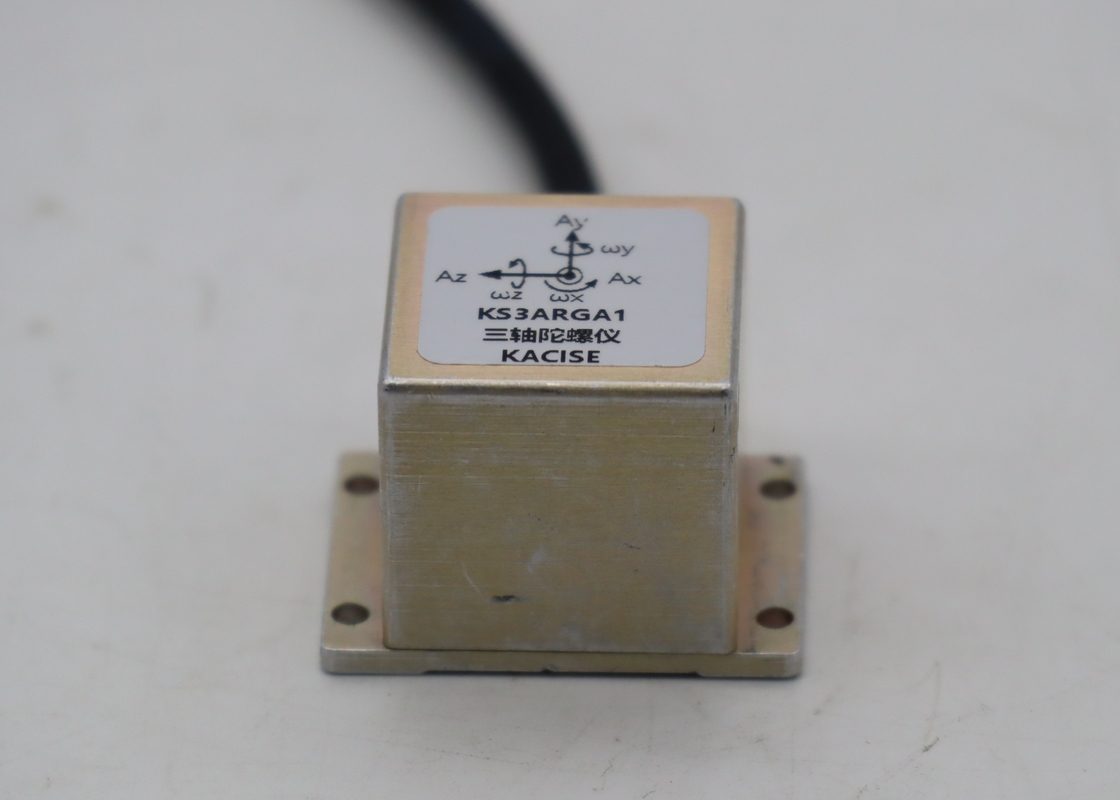

Developed by Kacise, the KS3ARG-A1 series is a three-axis universal angular rate gyro designed for measuring three-axis angular rates. Employing MEMS technology chips for each axis, it ensures high performance, cost-effectiveness, reliability, and rugged packaging. Equipped with a Self-Test function, the product also boasts features such as low power consumption, a wide operating temperature range, broad bandwidth, compact size, fast start, and DC input-DC output capabilities.
This technology finds broad utility across diverse industries, including automotive electronics, aircraft guidance and control, attitude reference systems, platform stabilization, robotics, antenna stabilization, cameras, digital camera gyros, and various other systems.
Features:
- fast start
- small size
- wide bandwidth
- wide operating temperature range
- low power consumption
- DC input DC output
Technical Parameters:
| Parameter |
ωx |
ωy |
ωz |
| Range(°/s) |
±250 |
±250 |
±250 |
| Offset voltage(V) |
2.5±0.05 |
2.5±0.05 |
2.5±0.05 |
| Scaling factor(mv/°/s) |
8±0.5 |
8±0.5 |
8±0.5 |
| Output voltage(V) |
0.5-4.5 |
0.5-4.5 |
0．5-4.5 |
| Nonlinearity(%FR) |
≤0.05 |
≤0.05 |
≤0.05 |
| Resolution/Threshold(°/s) |
≤0.1 |
≤0.1 |
≤0.1 |
| Cross coupling(%) |
≤2 |
≤2 |
≤2 |
| Output noise(°/s√Hz) |
<0.02 |
<0.02 |
<0.02 |
| run-up time(ms) |
≤20 |
≤20 |
≤20 |
| Bandwidth(Hz)can customize |
80 |
80 |
80 |
| G-value sensitivity(°/s/g) |
<0.02 |
| Mean time between failures(MTBF) |
100000hour |
| Oerating Environment |
| Operating temperature range(°C) |
-45～+80 |
| Storage temperature(°C) |
-65～+125 |
| Tolerated acceleration(g) |
20000(0.1ms) |
| Size(mm) |
34×25×24 |
| Weight(g) |
≤40 |
Dimension:
