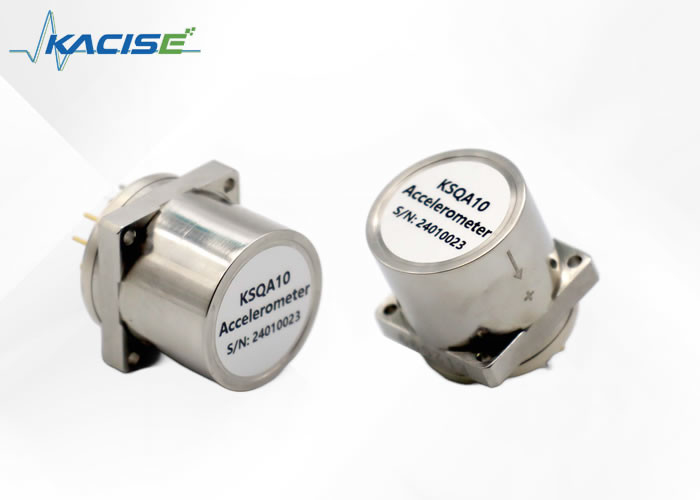

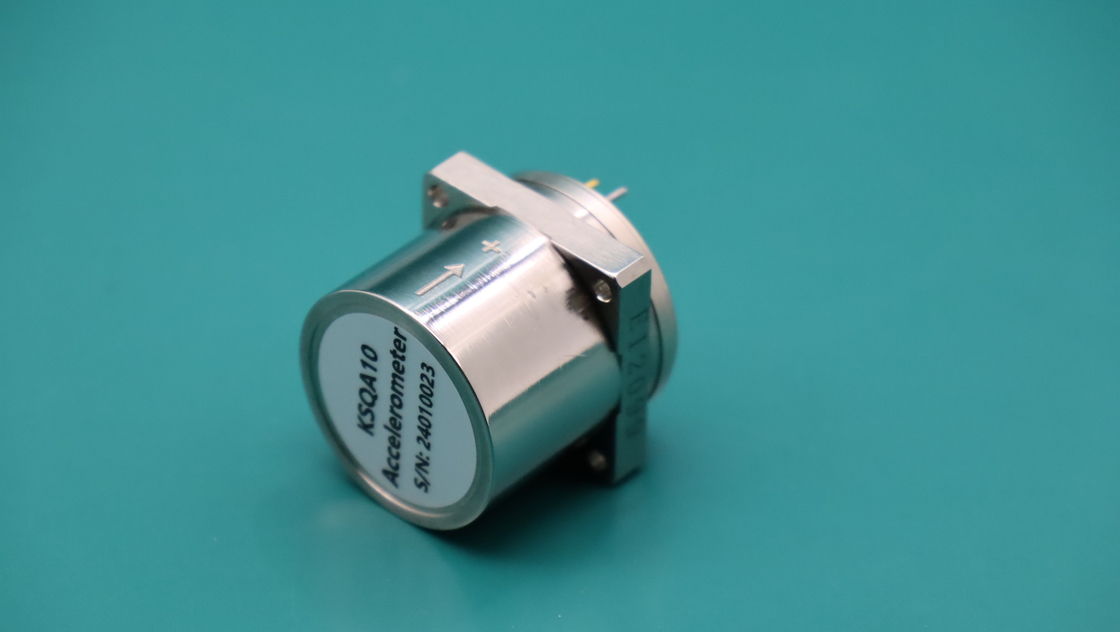

Product Description:
The Quartz Flexible Accelerometer is a highly precise instrument that is composed of quartz glass flexible support and advanced servo circuit based on the principle of inertia. This results in an output that is precisely proportional to the input acceleration when the carrier experiences acceleration.
The output form of our accelerometer is a current output with high output impedance. Users have the flexibility to choose the sampling resistance according to their requirement, without affecting the system's stability.
We have developed a series of Quartz Flexible Accelerometers to cater to varying needs. Our product range includes dozens of types, from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer. These accelerometers find extensive use in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields. They are used to provide signals for navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range

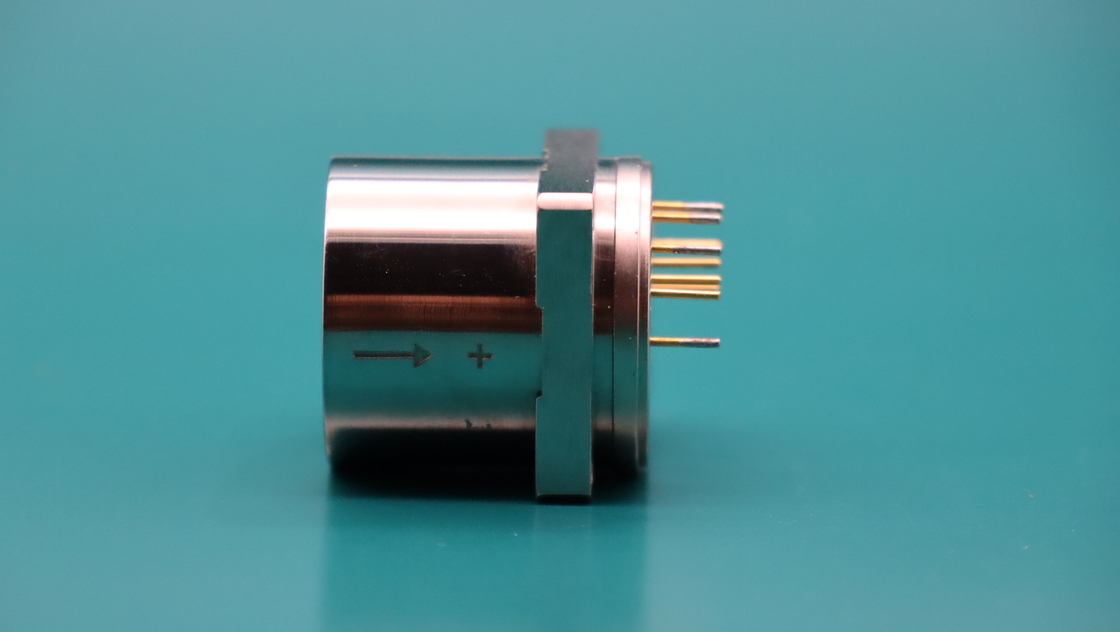

● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Technical Parameters:
| Parameter |
KSQA10A |
KSQA10B |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±20g |
±20g |
| Bias |
≤5mg |
≤5mg |
| Temperature Sensitivity |
≤30μg/°C |
≤50μg/°C |
| One-month Composite Repeatability (1σ) |
≤30μg |
≤50μg |
| Scale Factor |
1.2 ~ 1.6mA/g |
1.2 ~ 1.6mA/g |
| Temperature Sensitivity |
≤30ppm/°C |
≤80ppm/°C |
| One-month Composite Repeatability (1σ) |
≤30ppm |
≤50ppm |
| Linearity |
≤15μg/g2 |
≤40μg/g2 |
| Threshold |
<5μg |
<5μg |
| Resolution |
<5μg |
<5μg |
| Size |
Ø25.4×32mm |
Ø25.4×32mm |
| Weight |
≤70g |
≤70g |
| Environment |
| Operating Temperature |
-45°C~+80°C |
| Storage temperature |
-55°C～+80°C |
| Shock |
100g |
| Vibration Peak Sine |
15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Support and Services:
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Packing and Shipping:
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
