Product Description:

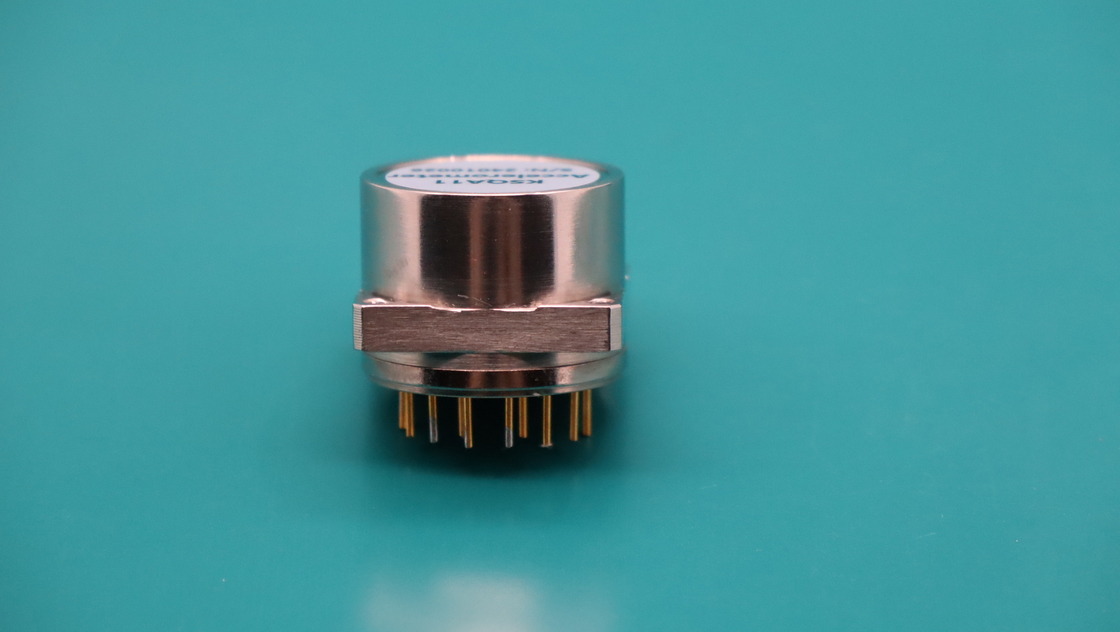

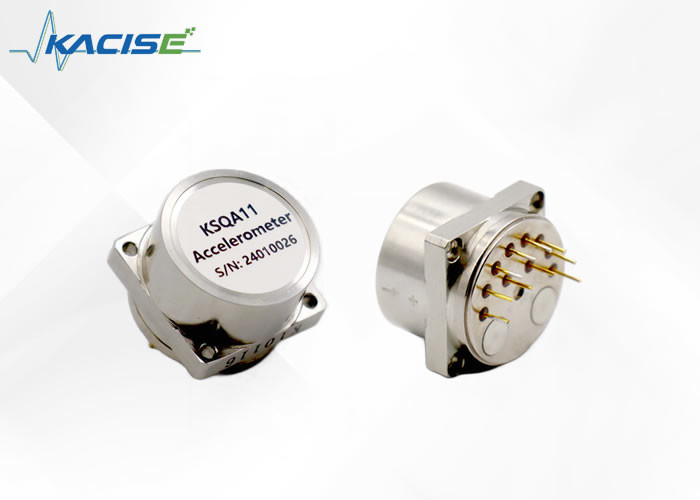

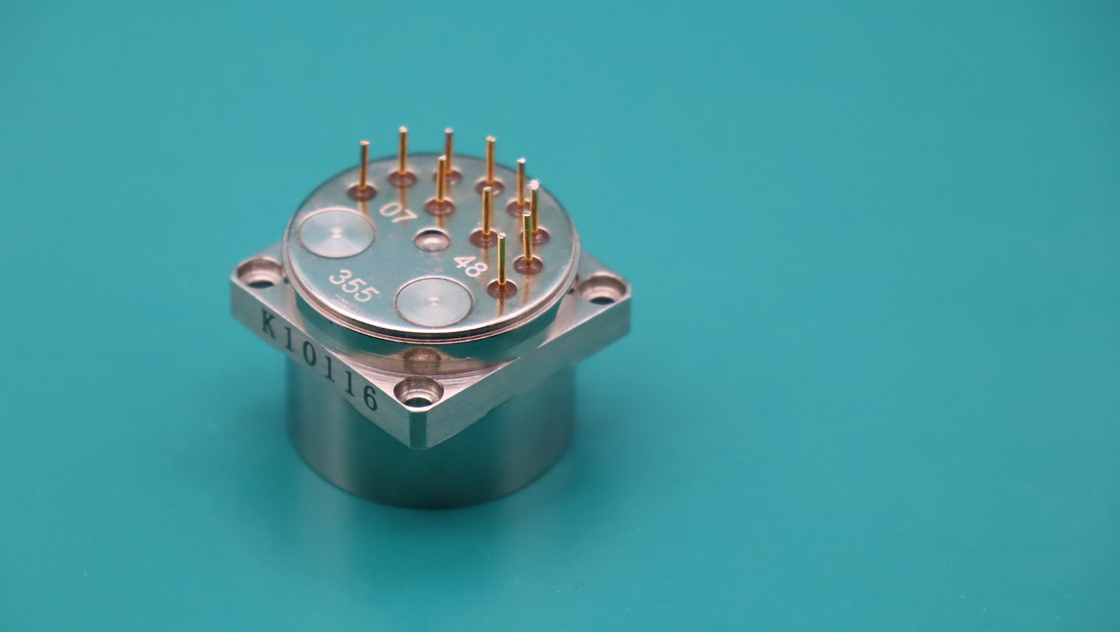

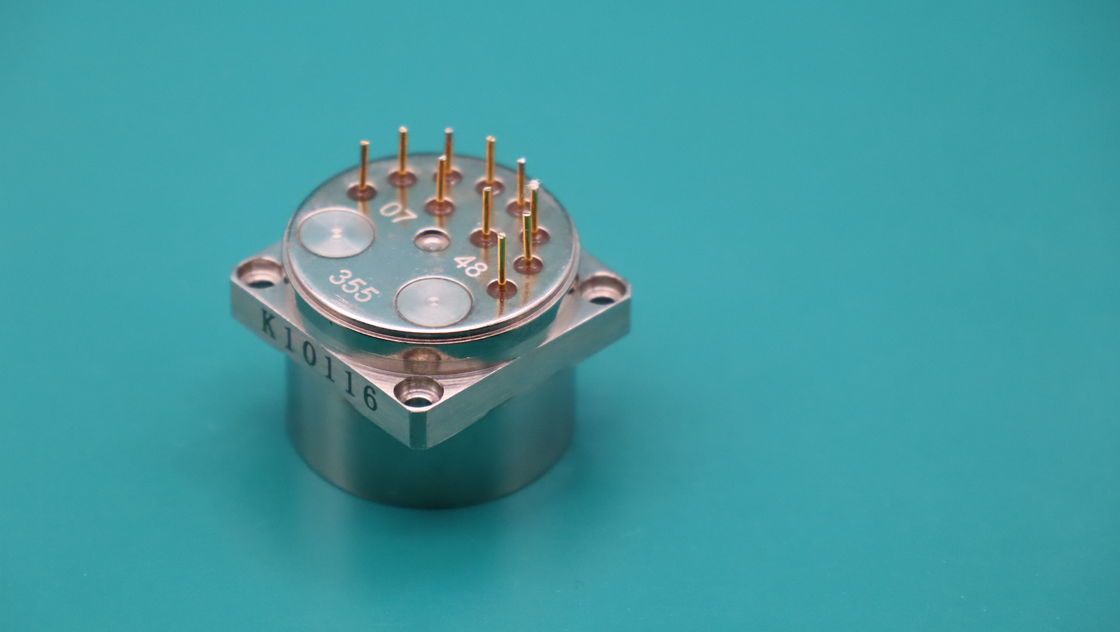

The Quartz flexible accelerometer is a highly precise instrument that comprises quartz glass flexible support and advanced servo circuit based on the principal of inertia. This accelerometer produces an output that is precisely proportional to the input acceleration. In other words, when the carrier is subjected to acceleration, the output of the accelerometer changes accordingly.
The accelerometer has a current output form of high output impedance. Users can choose the sampling resistance according to their requirements without affecting the stability of the system.
Currently, we offer a series of quartz flexible accelerometers that come in different types. We have the high-precision μg KSQA07 accelerometer, which is ideal for satellite microgravity measurement, and low-cost, anti-harsh environment KSQA13 accelerometer, among many others. These accelerometers are widely used in various fields such as aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and more. These accelerometers provide signals for navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Wide temperature range
● Wide load resistance range
● Small size and light weight
● Shock and vibration resistance
Technical Parameters:
| Parameter |
KSQA11 |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±30g |
| Bias |
≤8mg |
| Temperature Sensitivity |
≤40μg/°C |
| One-month Composite Repeatability (1σ) |
≤50μg |
| Scale Factor |
1.0 ~ 1.6mA/g |
| Temperature Sensitivity |
≤80ppm/°C |
| One-month Composite Repeatability (1σ) |
≤80ppm |
| Linearity |
≤40μg/g2 |

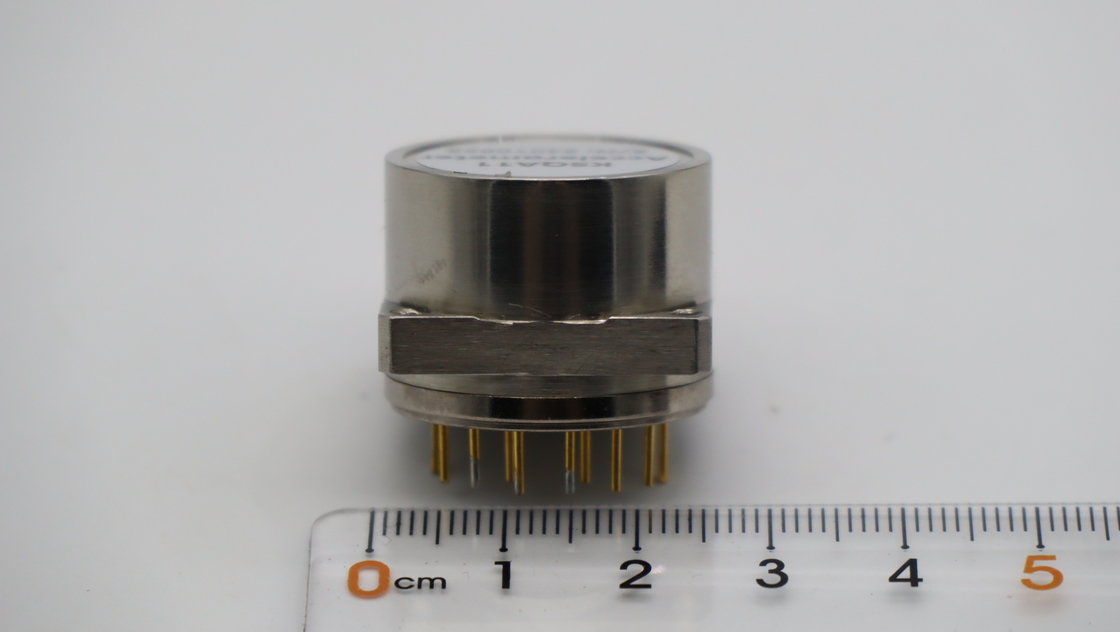

| Size |
Ø25×25mm |
| Weight |
≤50g |
| Environment |
| Operating Temperature |
-45°C~+100°C |
| Storage temperature |
-55°C～+110°C |
| Shock |
500g |
| Vibration Peak Sine |
25g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
