Universal Wireless Pressure Transmitter Waterproof For Industrial Process Control

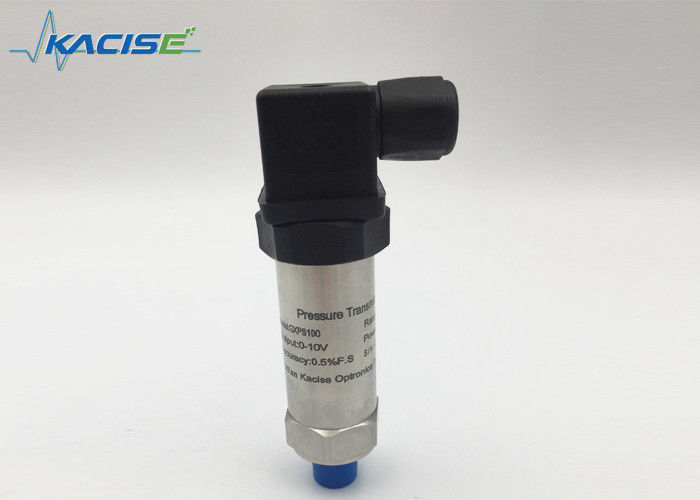

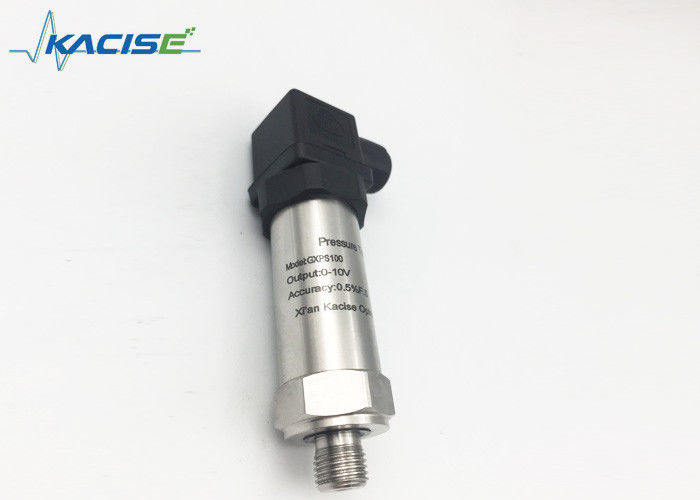

GXPS100 Universal Piezoresistive Pressure Transmitter
1. Feature
☆ Default accuracy: 0.5%F.S
☆ Diffused-Silicon oil filled core
☆ Multiple pressure range and output signal
☆ Various connector and pressure port
☆ Non-polarity 2 line current output
2. Application
☆ Gas storage facility
☆ Refrigerating machine
☆ Hydraulic and lubrication
☆ Constant pressure water supply
☆ Pipeline pressure
☆ Vessel pressure
☆ Petrochemical
☆ Industrial Process Control
3. Introduction
GXPS100 series pressure transmitter is a high-volume, civil and industrial use, cost-effective products. Widely used in gas, liquid pressure detection, such as water, oil, mild corrosive liquids and gas.
The product uses 1Cr18Ni9Ti stainless steel structure and imported international famous brand of diffusion of oil-filled pressure core body.
4. Parameter
| Spec. |
Value |
| Pressure range |
0~0.2MPa......60MPa
2bar…600bar
29psi…8700psi
20000MmH20…6118000mmH2O
1.97atm…592atm
|
| Load pressure |
1.5 times nominal value pressure (1.5X) |
| Rupture pressure |
3 times nominal value pressure (3X) |
| Accuracy |
±0.5%F.S(PT 300 or MARS for higher accuracy are available) |
| Stability |
Typical value 0.25%F.S, Max. value: 0.4%F.S |
| Operating temperature |
-40°C~120°C |
| Compensation temperature |
-10°C~70°C |
| Medium compatibility |
All Caustic Medium Compatible with 1Cr18Ni9Ti |
| Electrical performance |
2 wire system |
3 wire system |
| Output signal |
4~20mA |
0~5V |
1~5V |
0.5~4.5V |
0~10V |
| Power supply |
10~30Vdc |
8~30Vdc |
5V(ratio) |
11~30Vdc |
| Load pressure |
(U-10)/0.02(Ω) |
〉100kΩ |
| Insulation |
〉100M Ω@50V |
| Electric strength |
500V@60 second |
| Vibration/Impact |
10g/5~2000Hz, axes X/Y/Z20g sine 11ms |
| Pressure durable |
2×106pressure circle @25°C |
| Display range |
-999~1999@(PT110&PT111) |
| Contact capacity |
(24V, 1A)@PT111 |
| Electrical connection |
Hirsmann , air plugs, fixed cable, water proof cable |
| Pressure port |
M20×1.5, G1/4, G1/2, R1/2, NPT1/2 |
| Pressure type |
G, S |
Response time: 10ms |
| Certificate |
Intrinsically safe mode E, CE |
| EMI/EMC |
EMI: EN50081-1/-2; EMC: EN50082-2 |
5. Ordering information
GX-Type-Range-Output-Power-Pressure port-Electric connection
Type: PS100=universal type, PS100E=intrinsically safe mode, PS110=PS100+indicator
Range: 0~0.2…60MPa, 0~2bar…600bar= the upper limitation of the range
Output: A=4~20mA, V=0~5Vdc, V05=0.5~4.5Vdc, V1=1~5Vdc,V2=0~10Vdc
Power: 5Vdc, 24Vdc, 10~30Vdc
Pressure port: M=M20×1.5, G=G1/4, G2=G1/2, R2=R1/2, N2=NPT1/2
Electric connection: H=DIN43650-A, C=fixed cable
6.Electronic interface and signals definition
