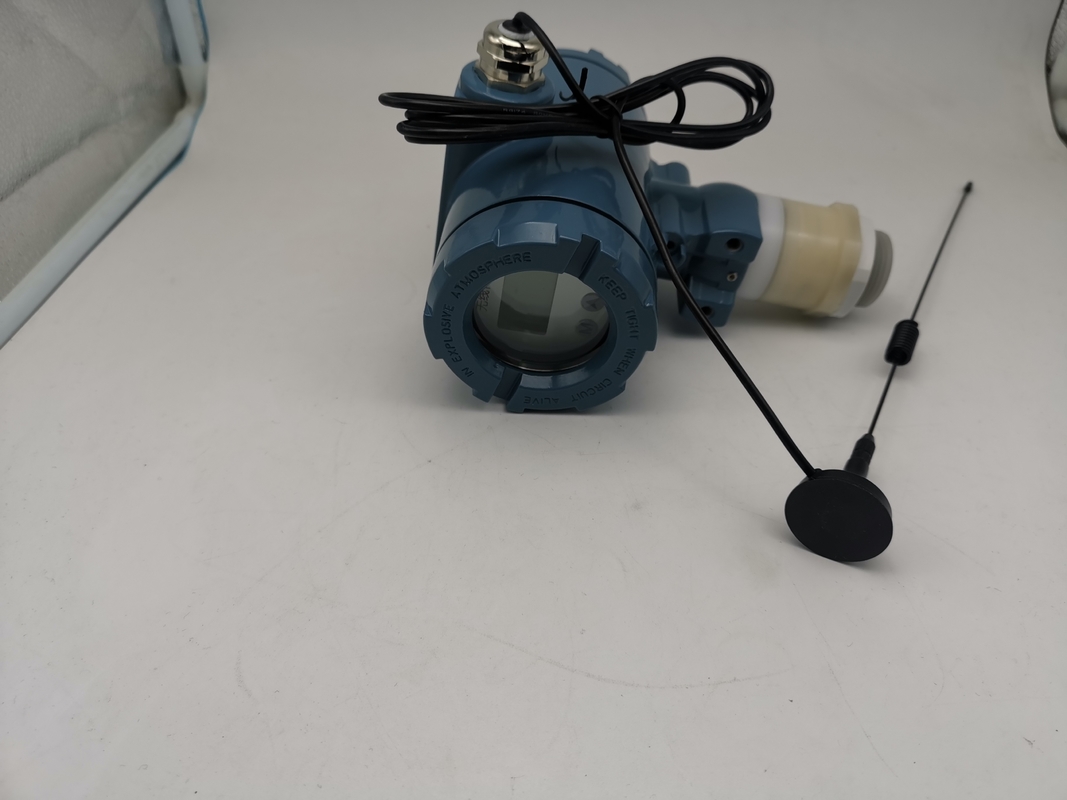

LCD Display Ultrasonic Level Transmitter Vertical Installation
Power supply: two DC3.6V disposable lithium batteries
◆ Wireless transmit power: <23 dBm
◆ Receiving sensitivity: <-135 dBm
◆ Theoretical bandwidth: 200Kbs
◆ Support wireless transmission of alarm status to server, server address and port can be configured
◆ Adopt precision digital temperature compensation and nonlinear correction technology, wide temperature range and full range precision compensation;
◆ A variety of data type indication (percentage, output current display);
◆ Special wide temperature LCD display (-30℃～80℃);
◆ Provide multiple power supply methods at the same time;
◆ Vertical installation or axial installation, providing a variety of liquid level/level interface and interface materials;
◆ With parameterized LCD and three setting buttons.
◆ According to user needs and site conditions, the collection frequency and collection time interval can be set.
◆ Battery power monitoring, when the power is low, the meter screen flashes and prompts to report to the centralized management platform at the same time.
◆ Water pressure/water level alarm threshold can be set and modified according to actual needs.
◆ Automatic alarm for water pressure/water level alarm threshold.
technical parameters
|
Enter
|
|
Measured variable
|
Liquid level, material level
|
|
Maximum measuring range
|
20-15000mm(Can be customized according to needs)
|
|
Output
|
|
Comprehensive accuracy
|
±1%FS/ 0.15℃
|
|
Temperature compensation
|
-10℃～70℃
|
|
Vibration influence
|
< ± 0.05％/g,All directions500Hz (conform to IEC 68 -2-64)
|
|
Rated conditions
Environmental conditions
|
|
Ambient temperature
|
-25～+85℃
|
|
Storage temperature
|
-40～+85℃
|
|
Protection level
|
IP65 ,conform to EN 60529
|
|
Electromagnetic Compatibility
|
EN 61326/A2 appendix A (2001 )
|
|
Display and control
|
|
show
|
SFTN LCD, white backlight, 5-digit display.
|
|
Limit value
|
Free setting
|
|
parameter settings
|
Use 3 buttons
|
|
unit
|
mm, the default unit is m.
|
|
weight
|
About 1.35kg
|
|
Non-liquid parts material
|
|
Connector
|
1NPT, stainless steel, length 20mm (materials and joint specifications can be customized according to customer requirements).
|
|
Electrical connections
|
Make the waterproof connector and air hole cable entrance comply with EN 175301 -803A standard
|
|
Measurement period
|
≤ 100ms
|
Selection reminder: For special requirements, please contact our company and indicate in the order.
Precautions:
1. If you need to calibrate the meter, please contact our company. Non-professionals are not allowed to calibrate the meter.
2. When calibrating the meter, please turn on the meter first, and calibrate it after 1 hour of constant temperature.
