20g Accelerometer Sensor Module High Temperature Stainless Steel

20g Accelerometer Sensor Module High Temperature Stainless Steel

20g Accelerometer Sensor

High Temperature Accelerometer Sensor

20g industrial accelerometer

Place of Origin:

China

পরিচিতিমুলক নাম:

Kacise

Model Number:

KSACT160 and KSAC-T185

আমাদের সাথে যোগাযোগ
একটি উদ্ধৃতি অনুরোধ করুন
পণ্যের বিবরণ
Input Range:
±20 g
Bias:
<20 mg
Scale Factor:
2.75 mA/g ±1.8%
Input voltage:
±12.5 to ±15.5 VDC
Quiescent current:
6 mA per supply
Core materials:
Stainless Steel
Operating temperature:
-40 to 185ºC/-40 to 160ºC
Weight:
55 grams
Size:
1.0 in. dia. X 0.73 in. high
বিশেষভাবে তুলে ধরা:

20g Accelerometer Sensor

,

High Temperature Accelerometer Sensor

,

20g industrial accelerometer

পেমেন্ট ও শিপিংয়ের শর্তাবলী
Minimum Order Quantity
1
Packaging Details
55 grams,1.0 in. dia. X 0.73 in. high,Stainless Steel
Supply Ability
100+
পণ্যের বর্ণনা

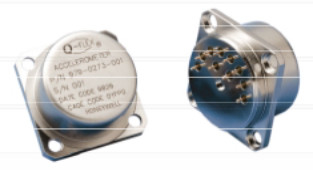

KSACT160 and KSAC-T185 Accelerometer

High Temperature Energy Sensors

For high-temperature Q-Flex® technology in a ruggedized package, Honeywell produces the QA-T160 and QA-T185 models for down-hole measurement-while- drilling and wireline applications.

As with the entire Q-Flex accelerometer family, QA-T160 and QA-T185 feature a patented Q-Flex etched-quartz- flexure seismic system. An amorphous quartz proofmass structure provides excellent bias, scale factor, and axis alignment stability.

The integral kacise develop an acceleration-proportional output current providing both static and dynamic acceleration measurements. By use of a customer-supplied output load resistor, appropriately scaled for the acceleration range of the application, the output current can be converted into a voltage.

The KSAC-T160 and KSAC -T185 also include a current- output internal temperature sensor. By applying temperature-compensating algorithms, bias, scale factor, and axis misalignment performance are dramatically improved.

Robust design and quality assurance provides superior reliability.



Features

  • High temperature capability
  • Environmentally rugged
  • Analog output
  • Square or round mounting flange options
  • Field-adjustable range
  • Internal temperature sensor for thermal compensation
  • Low power electronics
  • Built-in test

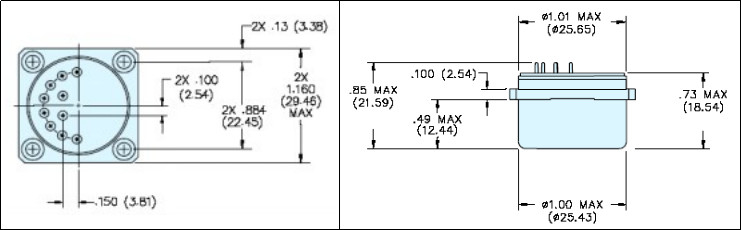

    Configuration Drawings20g Accelerometer Sensor Module High Temperature Stainless Steel 020g Accelerometer Sensor Module High Temperature Stainless Steel 1
