Name: KWS-901 Low Range Online Turbidity Analyzer With Detection Limit High Precision
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS-901
Price: 1020 USD
Availability: InStock

বাড়ি > পণ্য > পানির গুণমান সেন্সর >

KWS-901 Low Range Online Turbidity Analyzer With Detection Limit High Precision

Low Range Online Turbidity Analyzer

High Precision Online Turbidity Analyzer

Water Quality Turbidity Analyzer

Place of Origin:

China

পরিচিতিমুলক নাম:

Kacise

Model Number:

KWS-901

আমাদের সাথে যোগাযোগ

একটি উদ্ধৃতি অনুরোধ করুন

KWS-901 Low Range Online Turbidity Analyzer With Detection Limit High Precision

পণ্যের বিবরণ

Range:

0~10NTU

Accuracy:

0.01NTU or ±2% whichever is greater

Light Source:

LED

System Power Consumption:

0.6W (without rotating brush), 1W (when rotating brush work)

Power Supply:

DC 12~24V

Flow Range:

180~500mL/min

Water Inlet Pipe:

1/4” PE pipe

Output:

Modbus RS485

Maintain:

Light window self-cleaning brush

Casing material:

Sink: PC+ABS

বিশেষভাবে তুলে ধরা:

Low Range Online Turbidity Analyzer

High Precision Online Turbidity Analyzer

Water Quality Turbidity Analyzer

পেমেন্ট ও শিপিংয়ের শর্তাবলী

Minimum Order Quantity

মূল্য

1020usd/pc

Packaging Details

carton

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100+

সম্পর্কিত পণ্য

KCW102 নিম্ন-ফ্রিকোয়েন্সির ইলেক্ট্রোম্যাগনেটিক ওয়েভ ওয়াটার ট্রিটমেন্ট ডিভাইস

সেরা দাম পান

KCW101 ফ্রিকোয়েন্সি - মডুলেটেড ইলেক্ট্রোম্যাগনেটিক ওয়েভ ওয়াটার ট্রিটমেন্ট সরঞ্জাম

সেরা দাম পান

KHM100 অন-লাইন স্বয়ংক্রিয় ভারী ধাতু জল মান মনিটর

সেরা দাম পান

KCW104 উচ্চ-কার্যকারিতা ফ্রিকোয়েন্সি - সাফিং ডিভাইস

সেরা দাম পান

আমাদের সাথে যোগাযোগ

86--17719566736

এখনই যোগাযোগ করুন

পণ্যের বর্ণনা

KWS-901 Online Low Range Turbidity Analyzer

Introduction

KWS-901 online turbidity analyzer is a product specially developed for online monitoring of drinking water quality. It has the characteristics of ultra-low turbidity detection limit, high-precision measurement, long-term maintenance-free equipment, water-saving work and digital output, and supports cloud platform. Remote monitoring of data with mobile phone mobile terminal, and RS485-Modbus communication, can be widely used in on-line monitoring of turbidity of tap water, secondary water supply, pipe network tip water, direct drinking water, membrane filtered water, swimming pools, surface water, etc.

Working Principle

The turbidity online analyzer adopts the standard 90° scattering method detection principle, self-developed optical path and receiving structure, and adds real-time compensation algorithm to achieve high-precision turbidity measurement;
The sensor has its own cleaning wiper, which can effectively clean the light window and achieve long-term stable online monitoring requirements;
Self-developed follicles and measuring units can effectively filter the influent air bubbles, ensure the stability of the influent water, and further improve the measurement accuracy.

Technical Parameters

Item	Parameter
Model	KWS-901
Range	0~10NTU
Accuracy	0.01NTU or ±2% whichever is greater
Light Source	LED
System Power Consumption	0.6W (without rotating brush), 1W (when rotating brush work)
Power Supply	DC 12~24V
Flow Range	180~500mL/min
Operating Temperature	0~50℃(does not freeze)
Water Inlet Pipe	1/4” PE pipe
Water Outlet Pipe	3/8” PE pipe
Output	Modbus RS485
Maintain	Light window self-cleaning brush
Casing material	Sink: PC+ABS

Note: 1. The above technical parameters are the data in the laboratory standard solution environment;
2. The life of the sensor and the frequency of maintenance and calibration are related to the actual field conditions.

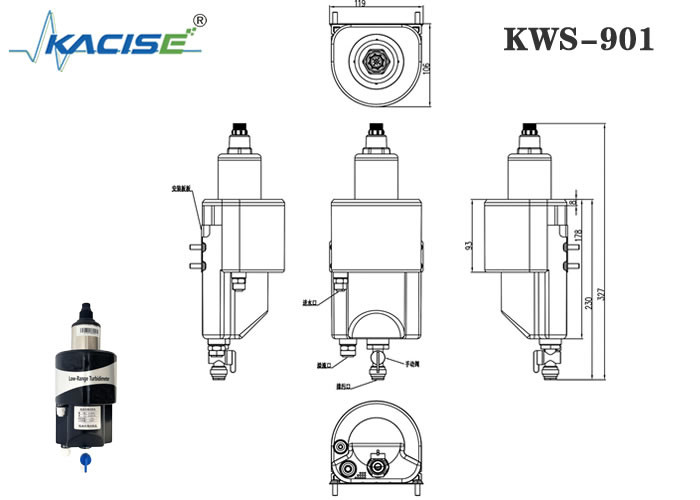

Dimension

KWS-901 Low Range Online Turbidity Analyzer With Detection Limit High Precision 0
