KLD803 80G FM Radar Level Sensor
Introduction
The benefits of choosing the HART protocol mainly include; digital capability, analog capability, availability & interoperability. This protocol can also be utilized with different devices and sensors. HART protocol-based devices are extensively accepted in industries.
Effect Of Radar Level Transmitter Frequency Range On Measurement
The radar level gauge emits electromagnetic waves through the antenna. The higher the frequency of the electromagnetic wave, the higher the energy of the electromagnetic wave. The shorter the wavelength, the more obvious the scattering phenomenon. Conversely, the lower the energy, the longer the wavelength, and the energy is not easily absorbed by the gas phase layer.
For the same size antenna, a liquid level sensor with a wavelength of 1.2 cm and a frequency of 26 GHZ has a gain of 6 times higher than that of a liquid level sensor with a wavelength of 3 cm and a frequency of 10 GHZ. (Remarks: Antenna gain is a parameter indicating the degree of radiation concentration of a directional antenna).
The overall beamwidth of a radar level gauge is inversely proportional to the frequency of the device. Therefore, for the same diameter antenna, if the frequency of the radar level gauge is increased, the beam width will be lower than that of the lower frequency equipment, and the narrow beam can minimize the influence of the nozzle, tank wall and interference.
At the same time, the measurement range of the radar level gauge is also affected by factors such as frequency, antenna size, dielectric constant of the liquid, and process conditions.
Feature
- High Frequency
- Support hart protocol
|

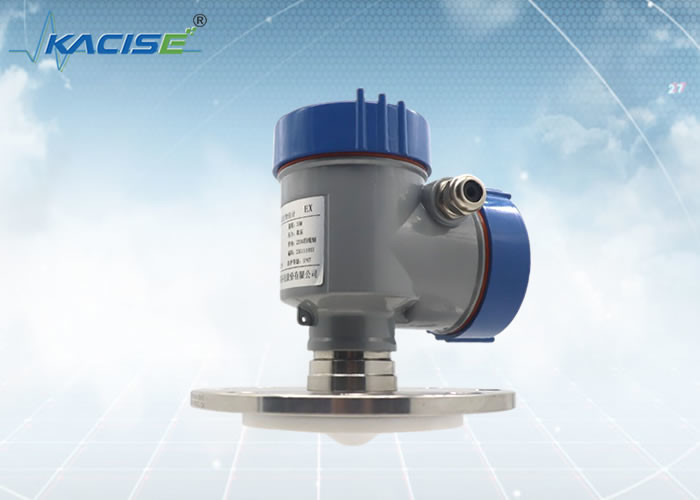

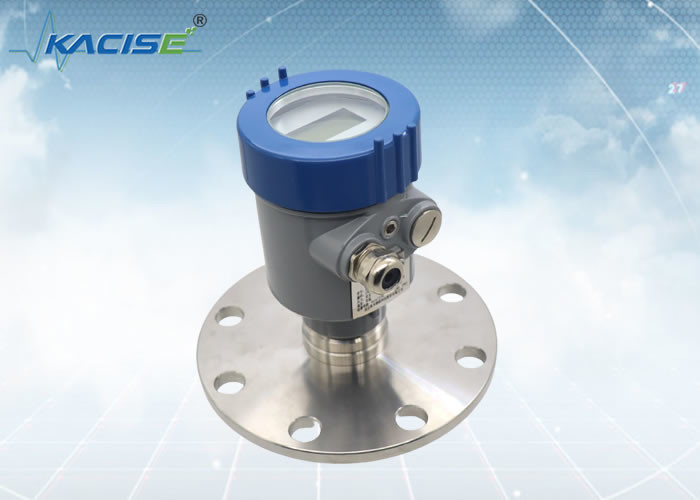

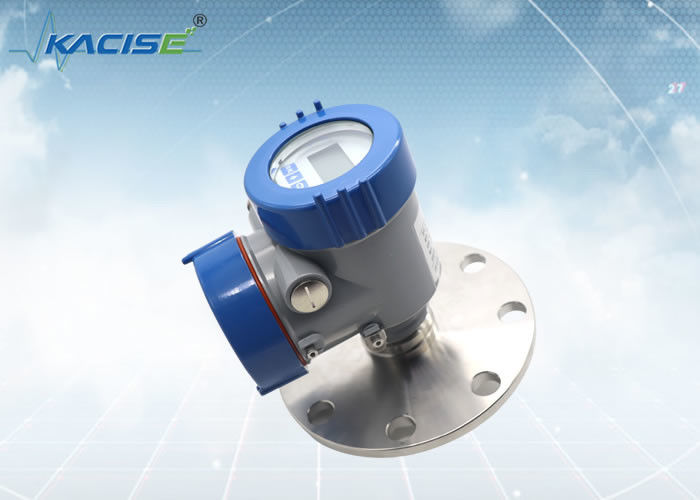

KLD803
|
Medium: strong corrosive liquid, steam, foam
Measuring range: 0.1m～10/20/30/60/100m
Process connection: flange ≥ DN50
Process temperature: -40～130℃
Process pressure: -0.1～2.5MPa

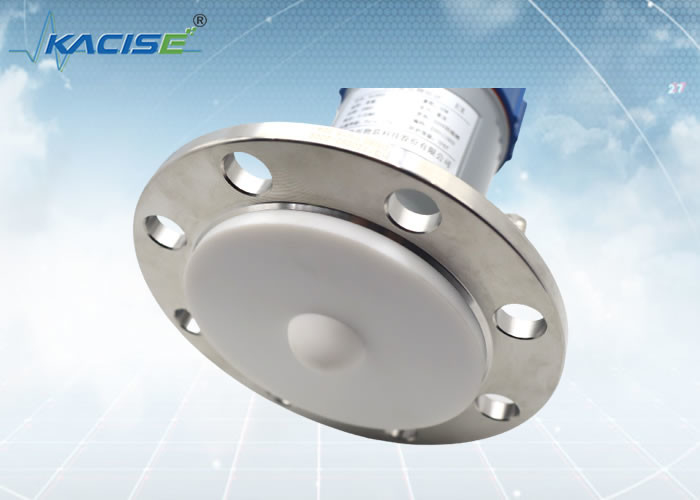

Antenna size: 34mm lens antenna (according to flange size)
Antenna material: PTFE
Accuracy: ±1mm (range below 35m)
±5mm (range between 35m and 100m)
Protection class: IP67
Center frequency: 80GHz
Launch angle: 3°
Power supply: two-wire /DC24V
four-wire /DC12~24V
four-wire /AC220V
Casing: aluminum/stainless steel
Signal output: two-wire /4...20mA/HART protocol
four-wire 4...20mA/ RS485 Modbus
|
Product Dimension
Unit in mm:
Installation Method
Flange Installation
When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.
- datum plane
- vessel center or axis of symmetry
Hoisting Installation
Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
