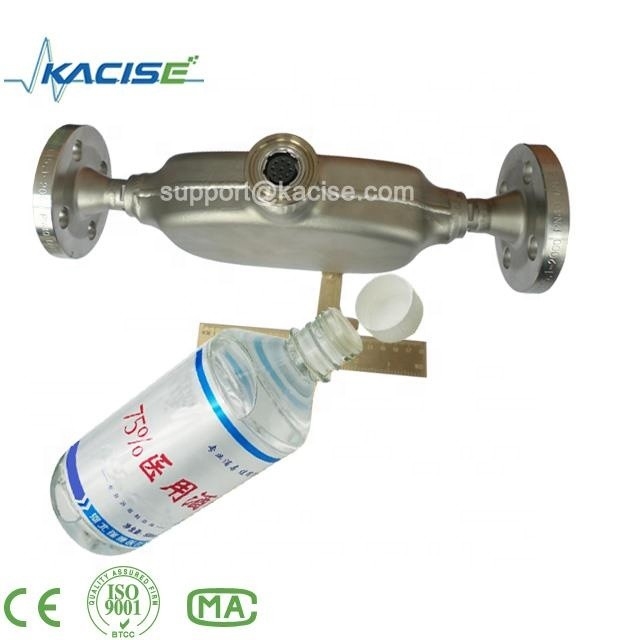

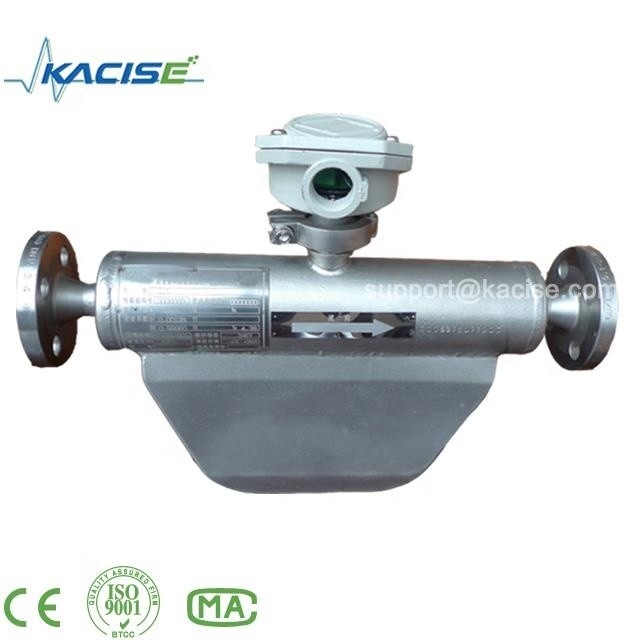

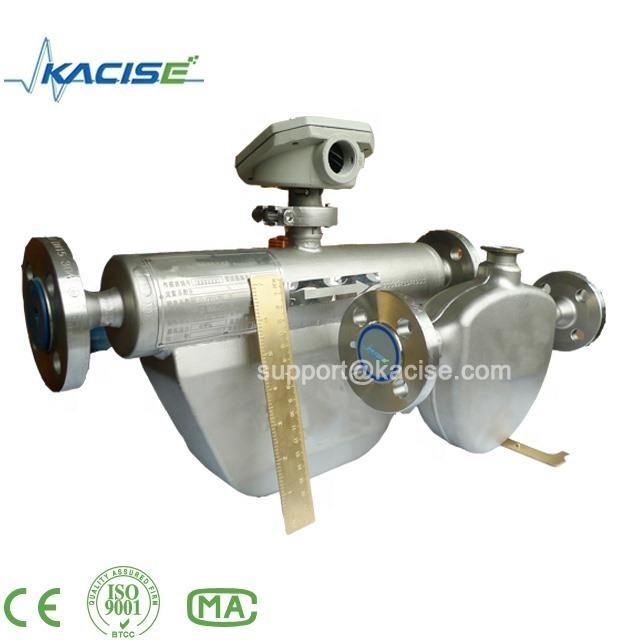

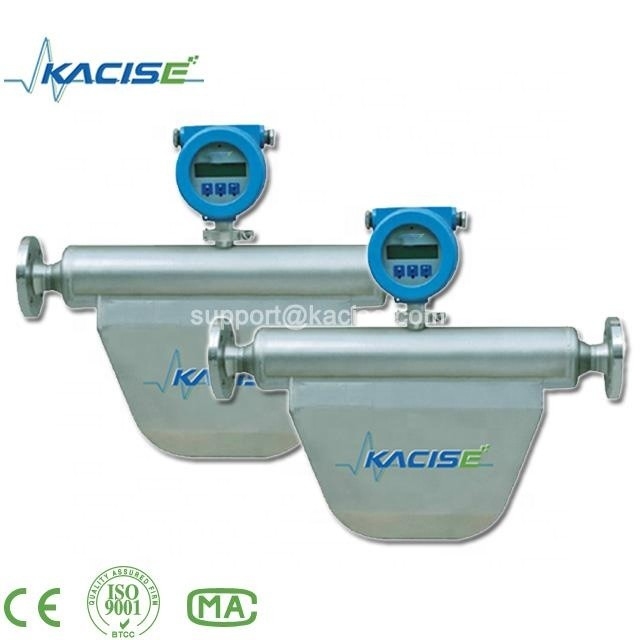

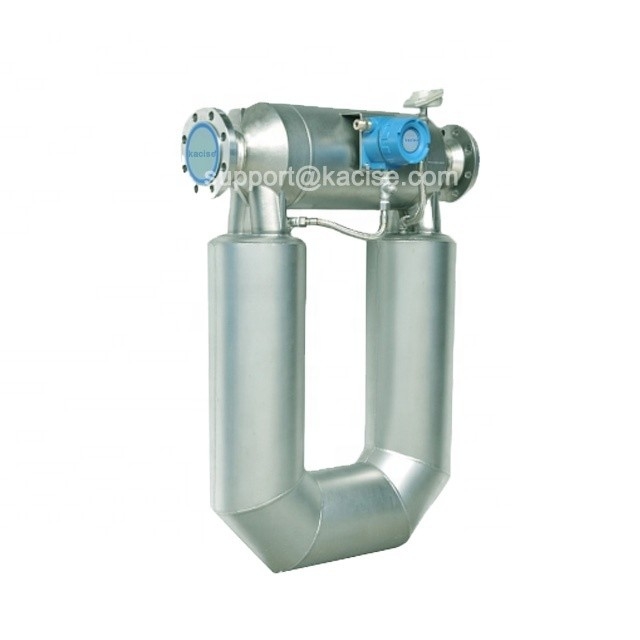

KFM101 Industrial water coriolis mass flow meter

আমাদের সাথে যোগাযোগ
একটি উদ্ধৃতি অনুরোধ করুন
পণ্যের বিবরণ
Pipe Diameter:
DN10-250mm
Accuracy:
±0.1%(liquid),±0.35%(gas)
Signal output:
4-20mA,0-10khz
Temp. range:
-40~350℃
Pressure:
≤6.3mpa
Material:
316L
Power supply:
24VDC 220VAC
Port:
Shanghai or other
পেমেন্ট ও শিপিংয়ের শর্তাবলী
মূল্য
$200.00 - $6,000.00/pieces
Packaging Details
Wooden crates or customer requirements
Supply Ability
2000 Piece/Pieces per Month negotiable
সম্পর্কিত পণ্য
আমাদের সাথে যোগাযোগ
86--17719566736
এখনই যোগাযোগ করুন
পণ্যের বর্ণনা

KFM101 Industrial water coriolis mass flow meter 0

 Industrial water coriolis mass flow meter features

1. Double-U or double-C flow tube ensures high accuracy and customer’s requirement.

2. Provides integrated mass flow, volum flow, density, temperature measurement and relative calculated parameter.

3. Easy on Installation, do not need rectifier and filter parts.

4. Fixed parts, maintenace free. High stability, no need for frequent disassembly calibration.

5. Allow low-range operation, reducing pressure loss and energy consumption waste.

6. Integrated installation, low installation costs.

7. Extremely high accuray and long-term stability, could be used for business transaction.

8. Ultra-wide measure range, could measure gas accurately.

9. Transmitter can be exchanged, and will not be influenced by area temperature.

KFM101 Industrial water coriolis mass flow meter 1

KFM101 Industrial water coriolis mass flow meter 2



Dimensions of large - scale instrument







Model

Weld Neck Flanges-ANSI B16.5





A





B





C





E





F





W





G





K





d





D

DN

LB

KMF-1-6c

100

150

670

510

740

858

1092

260

19.1

190.5

157.2

228.6

KMF-1-6CD

125

150

670

510

740

858

1092

260

22.4

215.9

185.7

254

KMF-1-6D

150

150

860

670

950

1130

1370

280

22.4

241.3

215.9

279.4



KFM101 Industrial water coriolis mass flow meter 3

KFM101 Industrial water coriolis mass flow meter 4

KFM101 Industrial water coriolis mass flow meter 5

KFM101 Industrial water coriolis mass flow meter 6



KFM101 Industrial water coriolis mass flow meter 7

KFM101 Industrial water coriolis mass flow meter 8

APPLIED RANGE

Applied Range

KFM101 Industrial water coriolis mass flow meter 9

KFM101 Industrial water coriolis mass flow meter 10



Company Show

KFM101 Industrial water coriolis mass flow meter 11

KFM101 Industrial water coriolis mass flow meter 12

KFM101 Industrial water coriolis mass flow meter 13
