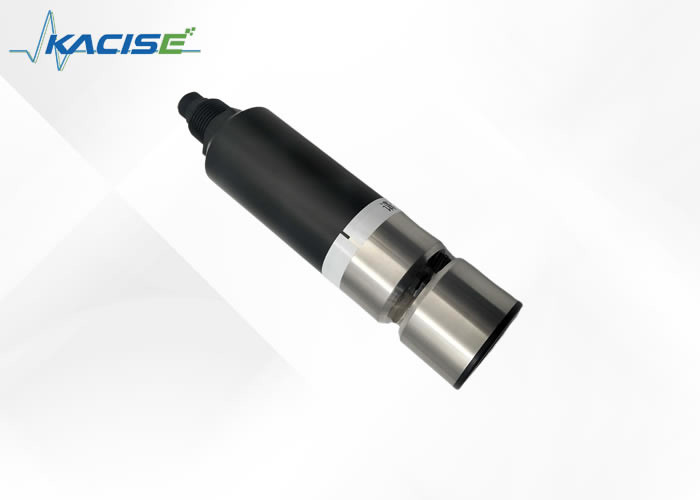

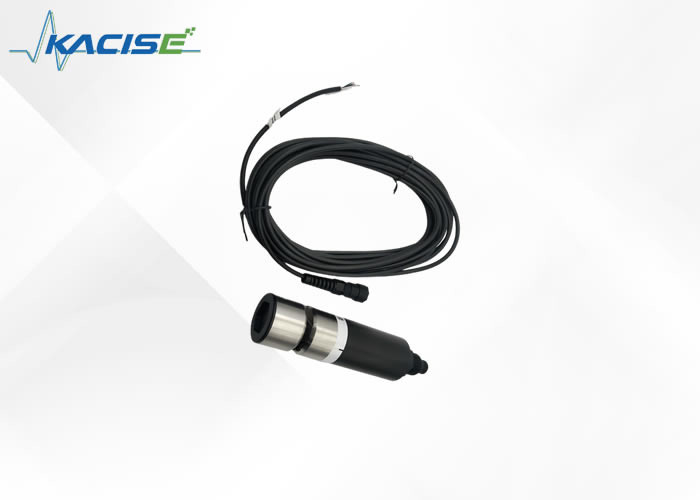

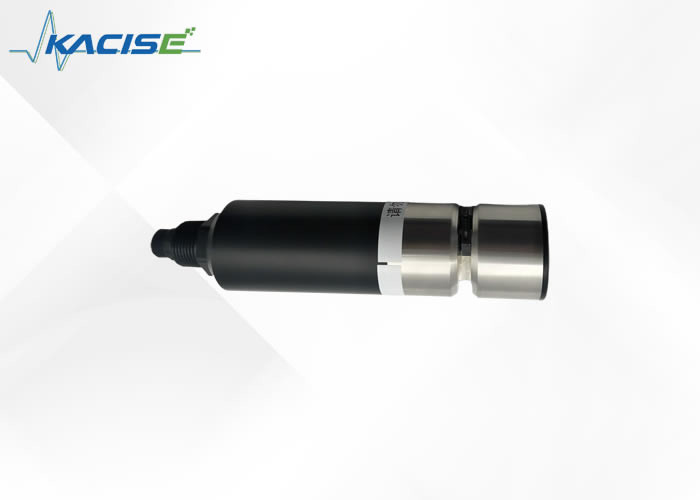

uv method chemical oxygen demand (cod) sensor in wastewater with RS485 output

uv method chemical oxygen demand (cod) sensor in wastewater with RS485 output

Place of Origin:

China

পরিচিতিমুলক নাম:

Kacise

সাক্ষ্যদান:

CE

Model Number:

KWS-100

আমাদের সাথে যোগাযোগ
একটি উদ্ধৃতি অনুরোধ করুন
পণ্যের বিবরণ
Product name:
COD Sensor
Application:
COD Analysor
Digital Sensor:
RS-485
Testing:
SAC, COD,TOC
Port:
Xi'an or other
পেমেন্ট ও শিপিংয়ের শর্তাবলী
Minimum Order Quantity
1pcs
মূল্য
$2,500.00 - $3,000.00/pieces
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
500 Piece/Pieces per Month
পণ্যের বর্ণনা
uv method chemical oxygen demand (cod) sensor in wastewater

Introduction

The COD sensor is Kacise's new generation of environmentally friendly COD / TOC sensors. It does not require reagents, is non-polluting, is more economical, and is more environmentally friendly. The water volume is small, easy to install, and water quality monitoring can be performed online. Automatically compensates for turbidity disturbances and is equipped with an automatic cleaning device that maintains excellent stability even over long periods of time.

Principle

Many organic substances dissolved in water absorb ultraviolet light. Therefore, by measuring the absorption of these organic substances by ultraviolet light at a wavelength of 254 nm, the total amount of organic pollutants in water can be measured. The Kacise COD series sensor uses two light sources, one 254nm ultraviolet light and one 850nm infrared light, which can automatically compensate the optical path attenuation and turbidity effects, thus achieving more stable and reliable measurement values.

Features

Digital sensor, RS-485 output, support MODBUS
No reagents, no pollution, more economical, more environmentally friendly
Can measure SAC, COD, TOC and other parameters
Automatically compensates for turbidity interference for outstanding test performance

Technical Specifications



Product
Measuring range
 Application field
KWS100A (40mm gap)
SAC 0.1 to 50 1/m
COD 0.15 to 75 mg/l equiv. KHP
TOC 0.06 to 30 mg/l equiv KHP
Tap water treatment
KWS100B (8mm gap)
SAC 0.5 to 250 1/m
COD 0.75 to 370 mg/l equiv. KHP
TOC 0.3 to 150 mg/l equiv KHP
Sewage treatment plant
outlet, natural waters
KWS100C (2mm gap)
SAC 1.5 to 700 1/m
COD 2.5 to 1000 mg/l equiv. KHP
TOC 0.9 to 410 mg/l equiv KHP
Industrial process control
