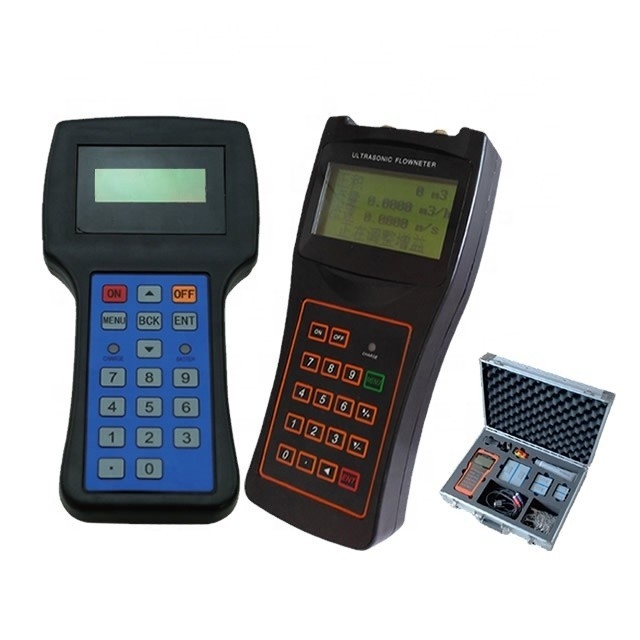

Portable handheld ultrasonic oil milk fuel flow meter

Category

Parameter

Host parameters

Principle

Transit time measure, 4 bytes of IEEE754 floating point arithmetic

Accuracy

1.0 %

Display

Support English, Italian, Chinese, etc.

Output

1 channel 4-20mA current output

1 channel pulse width is adjustable between 6~1000ms, 200ms(default)

1channel relay output

Data port

1 channel isolated RS232 serial port, by which the firmware can be upgraded from PC.

Pipe request

Tube material

Steel, stainless steel, cast iron, copper, aluminum, FRP, PVC, etc.

Pipe diameter

15~6000mm

Installation

If there is a bend, the sensor should be installed at a distance of 10D at least from the upstream bend, 5D at least from the downstream bend, and should be installed at a distance of 30D at least from the pumping hole.

Medium

Description

Clean water, sea water, industry water. Corrosive acid liquid and alkaline liquid, alcohol, beer, etc.

Temperature

-30°C~160°C

Turbidity

10000ppm not so much baubles

Flow speed

0 ~±10m/s

Working ambient

Temperature

Host: -20~60°C   Sensor: -30~160°C

Humidity

Host: 85%    Sensor: IP67

Electric source

3 built-in 1.2 capacity rechargeable Ni-MH battery 2000mAH, each is full of electricity sustainable work more than 10 hours, the use of AC90~ 260V power adapter, can realize continuous measurement

Power dissipation

1.5W

Category

Performance

Host parameters

Principle

Transit time measure, 4 bytes of IEEE754 floating point arithmetic

Accuracy

1 %

Display

320X240  pixel  LCD,  4  x  8  or  4  x  16  Character matrix

backlight LCD, support   English, Italian, Chinese    etc.

Output

1  channel  pulse  output  OCT (pulse  width  is  adjustable

Data port

1 channel isolated RS232 serial port.

Pipe request

Tube  material

Steel, stainless steel, copper, aluminum, FRP, PVC, etc.

Pipe diameter

15~6000mm

Installation

If there is a bend, the sensor should be installed at a distance of 10D at least from the upstream bend, 5D at least from the downstream bend, and should be installed at a distance of 30D at least from the pumping hole.

Medium

Description

Clean water, sea water, industry water. Corrosive acid liquid and alkaline liquid, alcohol, beer, etc.

Temperature

-30°C~160°C

Turbidity

10000ppm not so much baubles

Flow speed

0 ~±10m/s

Working ambient

Temperature

Host: -20~60°C, Sensor:-30~160°C

Humidity

Host: 85%, Sensor: IP67

Electric source

3   built-in   1.2V   capacity   rechargeable   Ni-MH   battery

2000mAH, each is full of electricity sustainable work more than 12 hours, the use of AC90 ~260V power adapter, can realize continuous measurement

Power dissipation

1.5W

Shell material

Inflaming retarding ABS

Main engine weight

390g
