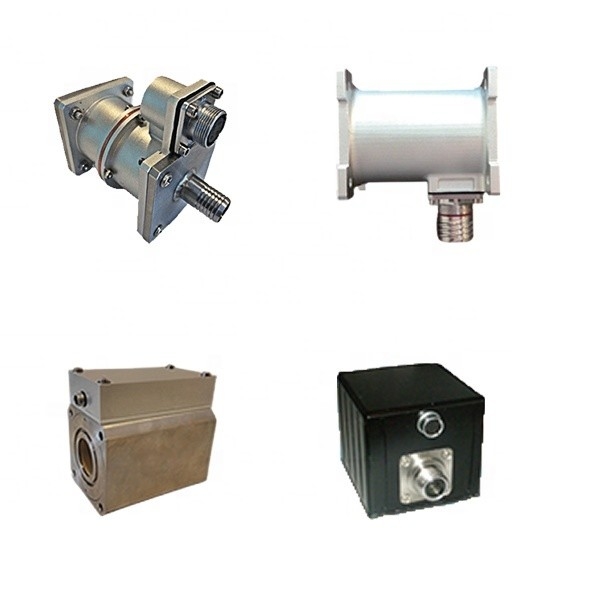

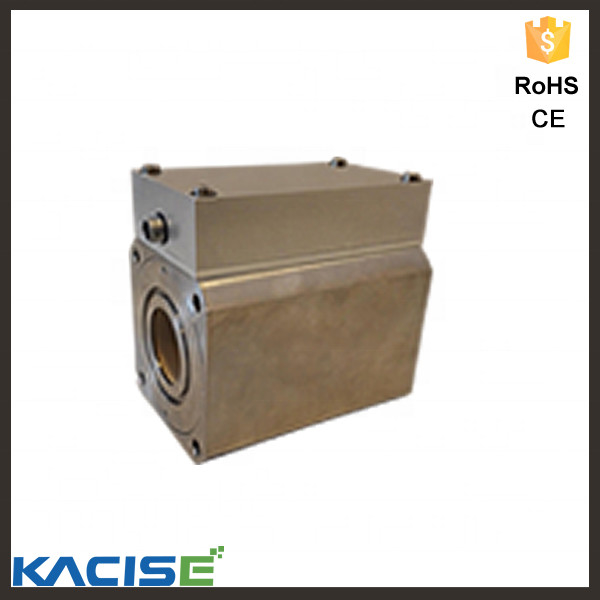

Description of  GX DC Series  wear debris sensor

Mechanical equipment fault occurs are mostly caused due to mechanical wear, wear particles exist in a large amount of information about wear condition, the monitoring can be used to judge the wear state or judgment occurred in the form of wear and tear. When the damage is going to happen, the number of metal particles in the lubricating oil will increase dramatically. Diameter of the metal particles will increase, according to the cumulative total number of detected metal particles, can be given key indicators: whether there is a fault, when it should be shut down, you can also run long, to prevent secondary damage, effectively reduce repair costs, reduce the cut-off time interval, so that the loss caused by interruption is minimized.

Metal CHECK sensor is a real time monitoring system of oil particles, inline of the oil pipeline, and 100% of the metal particles detected by the system, combined with the use of monitoring software, Metal CHECK oil pipeline may wear metal particles number of accumulating statistics, and the number of particles per unit of time by the trend analysis. Metal CHECK industrial, marine and aerospace has been widely used. The sensor uses electromagnetic induction to detect the number of the lubrication system of the metal particles, as determined extent of bearing or gearbox damage by data. The sensor must be installed before the filter, the lowest point in the return line position. Each detected a metal particle, particle sensors automatically accumulates count, and regularly sends up position this time period to detect the total number of particles.

Features

l  Full flow design

l  Reliable structure design

l  Easy to install, no moving parts

l  Transmission distance up to 1000 meters

l  On line, real-time detection of metal particles

l  Signal line tolerance 5KV high isolation voltage

l  100% detection of ferrous and non-ferrous metal particles

l  Multichannel detection of particles with different particle sizes

Specification

Dimension

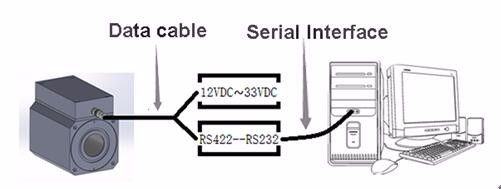

Electrical connection

Installation

1. Oil pipe to pass through the sensor before passing through the filter, so the detection is effective.

2. The sensor is fixed through the bottom bracket of the sensor, and the sensor is connected with the oil return line.

3. Select the installation position should avoid strong magnetic power, large vibration occasions.

Note: oil must be made through the sensor before passing through the filter.
