Optical Fiber Strapdown Inertial Navigation System For Large UAVs Flight Control

Large UAVs Inertial Navigation Unit

UAVs Flight Control Inertial Navigation System

Place of Origin:

China (Mainland)

পরিচিতিমুলক নাম:

Kacise

সাক্ষ্যদান:

certificate of explosion-proof, CE

Model Number:

KsINS- AIR

আমাদের সাথে যোগাযোগ

একটি উদ্ধৃতি অনুরোধ করুন

Optical Fiber Strapdown Inertial Navigation System For Large UAVs Flight Control

পণ্যের বিবরণ

Align time:

≤5min

Position accuracy:

Pure inertia: 0.8nmile/h (CEP); integrated navigation with satellite: altitude 10m; level 5m

Speed accuracy:

In integrated navigation mode: sky speed ≤ 0.2m/s, horizontal speed ≤ 0.1m/s

বিশেষভাবে তুলে ধরা:

Large UAVs Inertial Navigation Unit

UAVs Flight Control Inertial Navigation System

পেমেন্ট ও শিপিংয়ের শর্তাবলী

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Pieces per Week

সম্পর্কিত পণ্য

ভিডিও

Single Axis Fiber Optic Electronic Gyroscope Sensor Shocking Resistance

সেরা দাম পান

ভিডিও

Well Logging Dynamically Tuned Gyroscope For High Temperature Environment

সেরা দাম পান

Small Size Mems Gyroscope Sensor Angel Measuring Instruments Dip Performance

সেরা দাম পান

200Hz Single Axis Gyro Sensor , Gyroscope Sensor Module High Bias Stability

সেরা দাম পান

আমাদের সাথে যোগাযোগ

86--17719566736

এখনই যোগাযোগ করুন

পণ্যের বর্ণনা

KsINS- AIR fiber optic strapdown inertial navigation system

product description:

KsINS-AIR optical fiber strapdown inertial navigation system for large UAVS. The system can be sensitive to the angular motion and linear motion of the UAV carrier, and output the position, speed, heading, angular rate and linear acceleration information of the carrier in real time. It can be combined with the satellite receiver to complete the integrated navigation operation, which can meet the needs of attitude control, navigation and positioning of various UAVs.

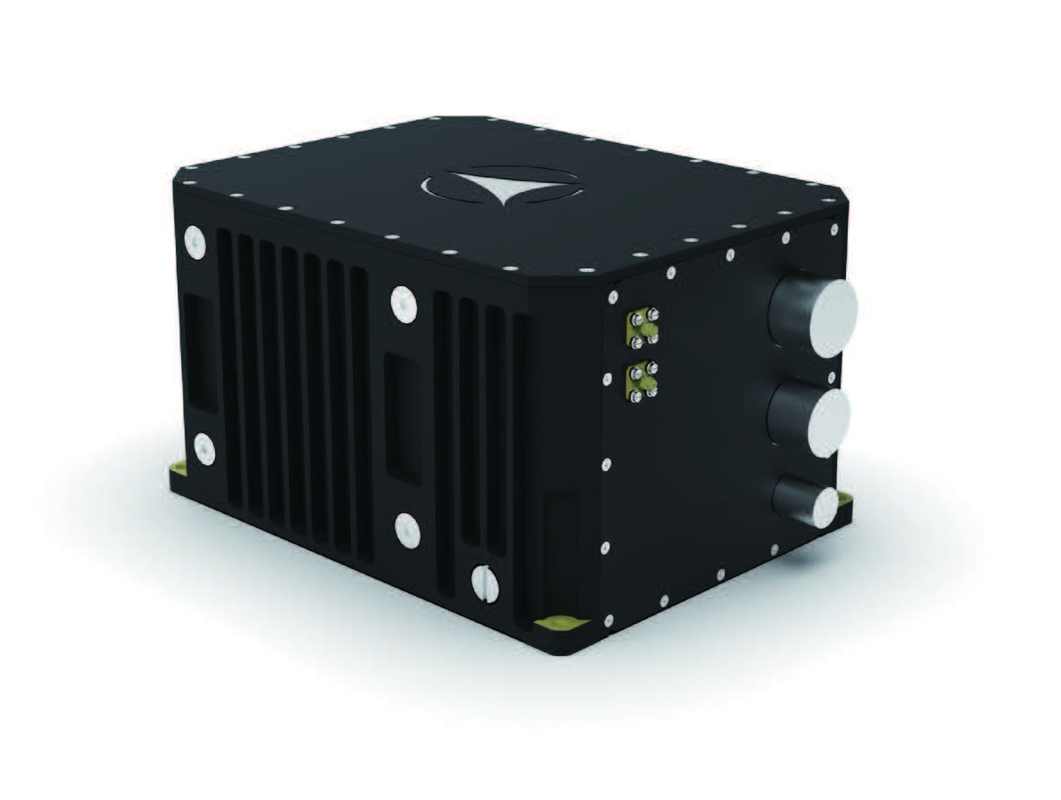

Optical Fiber Strapdown Inertial Navigation System For Large UAVs Flight Control 0

Features:

● High precision and high reliability

● Easy installation and built-in vibration reduction mode to meet the needs of harsh vibration environments

● Rich communication interfaces

● The output protocol is flexible and can be configured through test software

● Have a complete BIT strategy and passed the actual flight assessment

Application fields and application modes:

It can be used in the fields of high-altitude airships and large fixed-wing drones.

Performance indicators :

Align time	≤5min
Position accuracy	Pure inertia: 0.8nmile/h (CEP); integrated navigation with satellite: altitude 10m; level 5m
Speed accuracy	In integrated navigation mode: sky speed ≤ 0.2m/s, horizontal speed ≤ 0.1m/s
heading alignment accuracy	≤ 0.05° (1σ) (self-aligned)
Heading maintenance accuracy	0.01° /h (pure inertia), 0.02° (integrated navigation)
Attitude alignment accuracy	0.01°(1σ)
Attitude maintenance accuracy	0.02° (pure inertia), 0.01° (integrated navigation)

Application environment :

Working/storage temperature(℃)	-40℃ ~+60℃ /-45℃ ~+80℃
MTBF(h)	30000h
Dynamic Range	Angular velocity: ±300°/s; Acceleration: -25g~25g
Mechanical properties	Endurance science vibration environment: GJB1032 random vibration spectrum

Physical properties:

Dimensions

245mm×180mm×140mm

weight

≤ 8.0kg _

waterproof level

IP67

External Interface:

powered by	18V~36V
Power consumption	≤ 20W
Input/output interface	RS-422×4 (multiplexing), RS-232×1 (multiplexing), CAN×1; network port×1, pulse interface×2, Data storage 8G


Data output frequency	≤1000Hz

Company Information

Name: Optical Fiber Strapdown Inertial Navigation System For Large UAVs Flight Control
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KsINS- AIR
Price: 431.00 USD
Availability: InStock

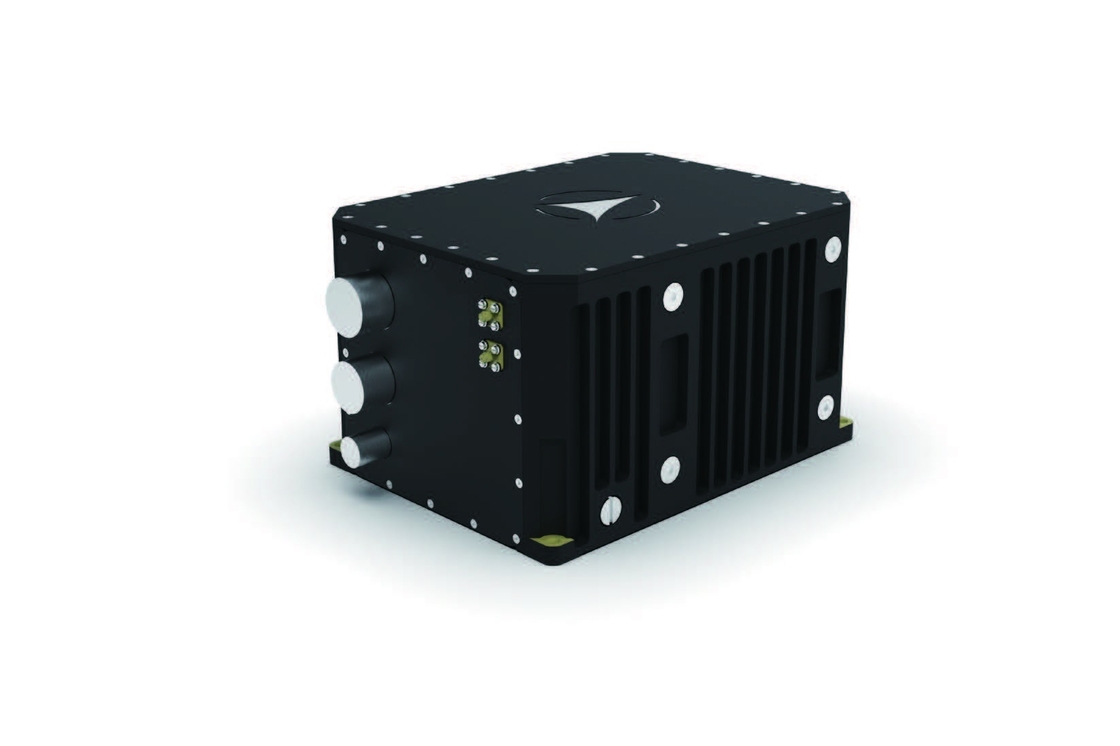

Optical Fiber Strapdown Inertial Navigation System For Large UAVs Flight Control 1
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing.
We supply high quality Turbine Gas Flow Meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.
