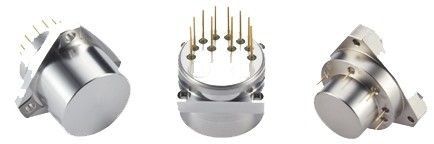

Product Description:
The KSJB3 series quartz flexible accelerometer is a small yet highly precise military-grade sensor designed for a variety of inertial navigation applications. It stands out for its exceptional long-term stability, repeatability, starting performance, adaptability to different environments, and high reliability. This adaptable sensor can be employed for static and dynamic testing and serves as both a standard vibration and inclination sensor. Its output current exhibits a linear relationship with the applied force or acceleration, offering users the flexibility to fine-tune output precision by selecting the appropriate sampling resistance. Furthermore, the built-in temperature sensor allows users to compensate for offset values and scale factors, mitigating the influence of ambient temperature variations. Its applications encompass inertial measurements in military inertial navigation systems and vibration isolation and inclination testing of precision instruments and equipment in aerospace, aviation, naval, and defense sectors.

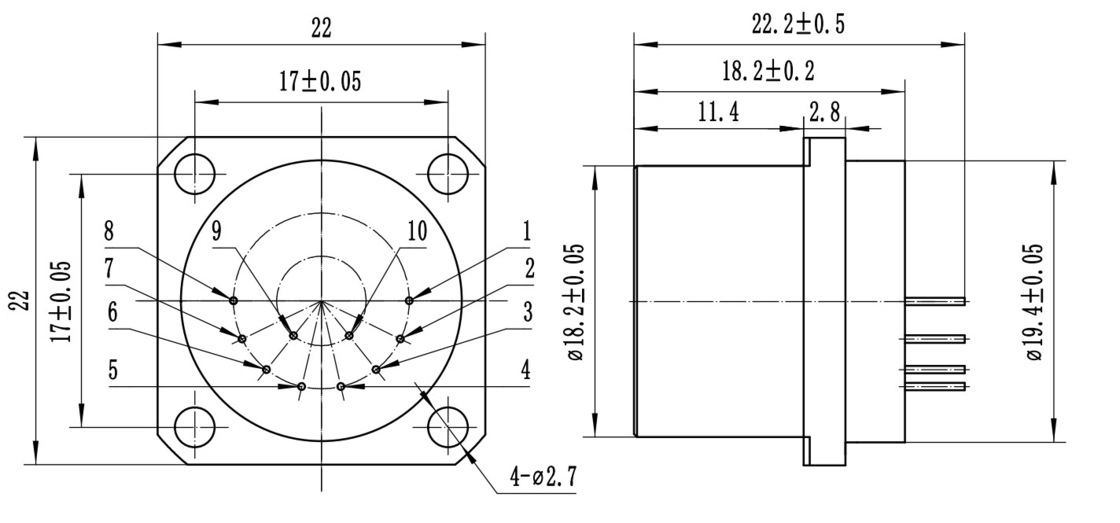

1．Square flange dimensions
Pin definition:
1, Signal output
2, air
3, power -15V
4, power +15V
5, power and signal ground
6, 7, 8, empty
9, -9V or pt1000
10, +9V or pt1000

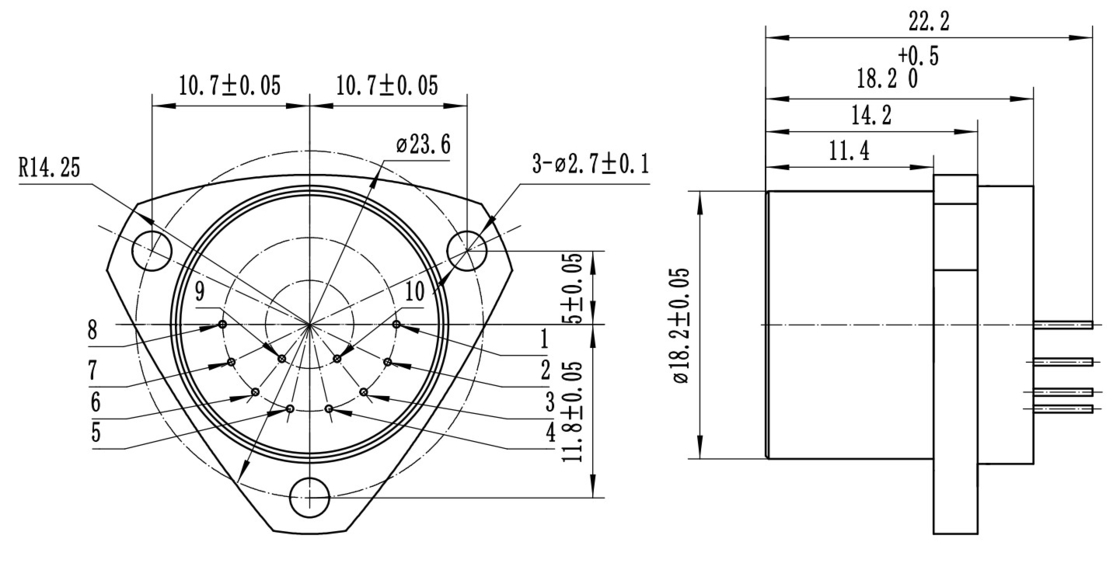

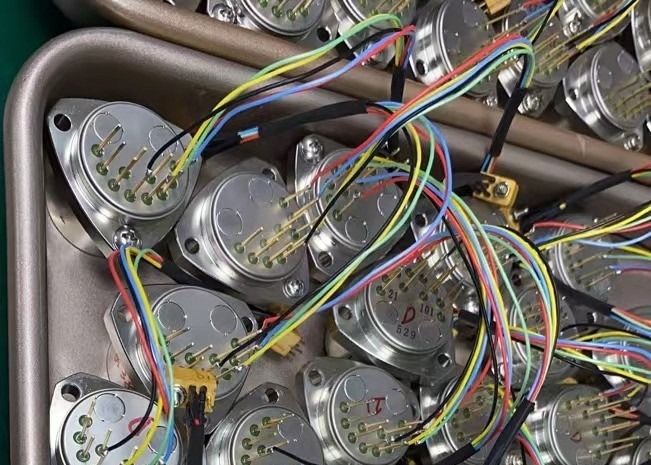

2．Triangular flange dimensions
3．Dimensions of inverted triangle flange
Technical Parameters:
| Number |
Parameters |
KSJB3-01 |
KSJB3-02 |
KSJB3-03 |
| 1 |
Scope |
±60g |
±60g |
±60g |
| 2 |
Threshold value |
5μg |
5μg |
5μg |
| 3 |
deviation value K0/K1 |
≤±5 mg |
≤±7 mg |
≤±5 mg |
| 4 |
scale factor K1 |
1.0±0.2 mA/g |
1.0±0.2 mA/g |
0.6±0.2 mA/g |
| 5 |
Second order nonlinear coefficient K2 |
≤±20μg /g2 |
≤±30μg /g2 |
≤±20μg /g2 |
| 6 |
0g 4 hours short-term stability |
≤10 μg |
≤20 μg |
≤20 μg |
| 7 |
1g 4 hours short-term stability |
≤10 ppm |
≤20 ppm |
≤20 ppm |
| 8 |
deviation value synthesis repeatability σK0 (1σ,one month) |
≤15 μg |
≤50 μg |
≤50 μg |
| 9 |
Scale factor integrated repeatability σK1/K1 (1σ,one month) |
≤15ppm |
≤50 ppm |
≤50ppm |
| 10 |
Comprehensive repeatability of nonlinear coefficients K2/K1(1σ,one month) |
≤±20 μg /g2 |
≤±30 μg /g2 |
≤±30 μg /g2 |
| 11 |
deviation value Temperature coefficient(The mean value of the whole temperature zone) |
≤±15 μg /℃ |
≤±50 μg /℃ |
≤±50 μg /℃ |
| 12 |
Scale factor Temperature coefficient(The mean value of the whole temperature zone) |
≤±15 ppm /℃ |
≤±80 ppm /℃ |
≤±50 ppm /℃ |
| 13 |
Noise(The sampling resistance is 840Ω) |
≤5mv |
≤8.4mv |
≤8.4mv |
| 14 |
Natural frequency |
350~800 Hz |
350~800 Hz |
350~800 Hz |
| 15 |
bandwidth |
800~2500 Hz |
800~2500 Hz |
800~2500 Hz |
| 16 |
Random vibration |
10g(20-2000Hz) |
10g(20-2000Hz) |
10g(20-2000Hz) |
| 17 |
strike |
150g,4.5ms,1/2sin |
150g,4.5ms,1/2sin |
150g,4.5ms,1/2sin |
| 18 |
Operating temperature range |
-55～+85℃ |
-55～+85℃ |
-55～+85℃ |
| 19 |
Storage temperature range |
-60~+120℃ |
-60~+120℃ |
60~+120℃ |
| 20 |
Power supply |
±12~±15V |
±12~±15V |
±12~±15V |
| 21 |
Current consumption |
≤±20mA |
≤±20mA |
≤±20mA |
| 22 |
Temperature sensor |
User customizable |
User customizable |
User customizable |
| 23 |
dimension |
Ф18.2X23mm |
Ф18.2X23mm |
Ф18.2X23mm |
| 24 |
weight |
≤30g |
≤30g |
≤30g |
Note:
1. Scale factor is adjusted according to user requirements;
2.Temperature sensor: divided into AD590, pt1000, 18B20,
3. Test cycle: divided into 1 month, 3 months, 6 months, 12 months, according to user requirements for testing;
4. According to user installation requirements; The dimensions can be slightly adjusted according to user requirements, and other test requirements can be carried out according to customer requirements.
Applications:
Kacise's KSJB3 accelerometer sensor is a vibration detection system that is widely used in acceleration measurement unit, motion velocity sensor and motion control applications. With a brand name of Kacise, model number of KSJB3, and place of origin being China (Mainland), the product has a certificate of explosion-proof and CE, and each unit has individual box and all boxes are packed in standard packages or customers requests available. The minimum order quantity is 1pcs, delivery time is 5-8 working days, payment terms are T/T, Western Union, MoneyGram, supply ability is 1000 Pieces per Week, storage temperature range is -60~+120℃, deviation value K0/K1 is ≤±5 Mg, weight is ≤30g, threshold value is 5μg, and operating temperature is -55°C To +85°C. This accelerometer sensor is suitable for motion control, monitoring vibration and movement, as well as inclination or tilt measurement in various industrial and consumer applications.
