Product Description:

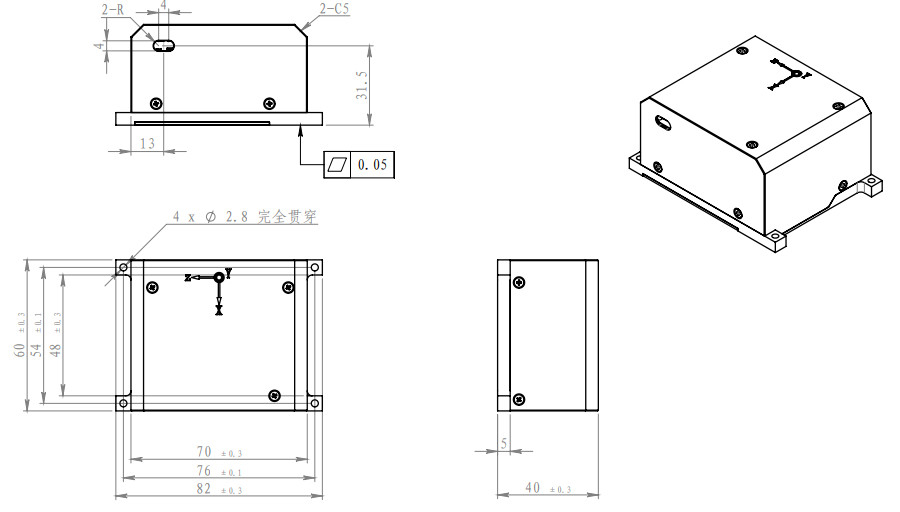

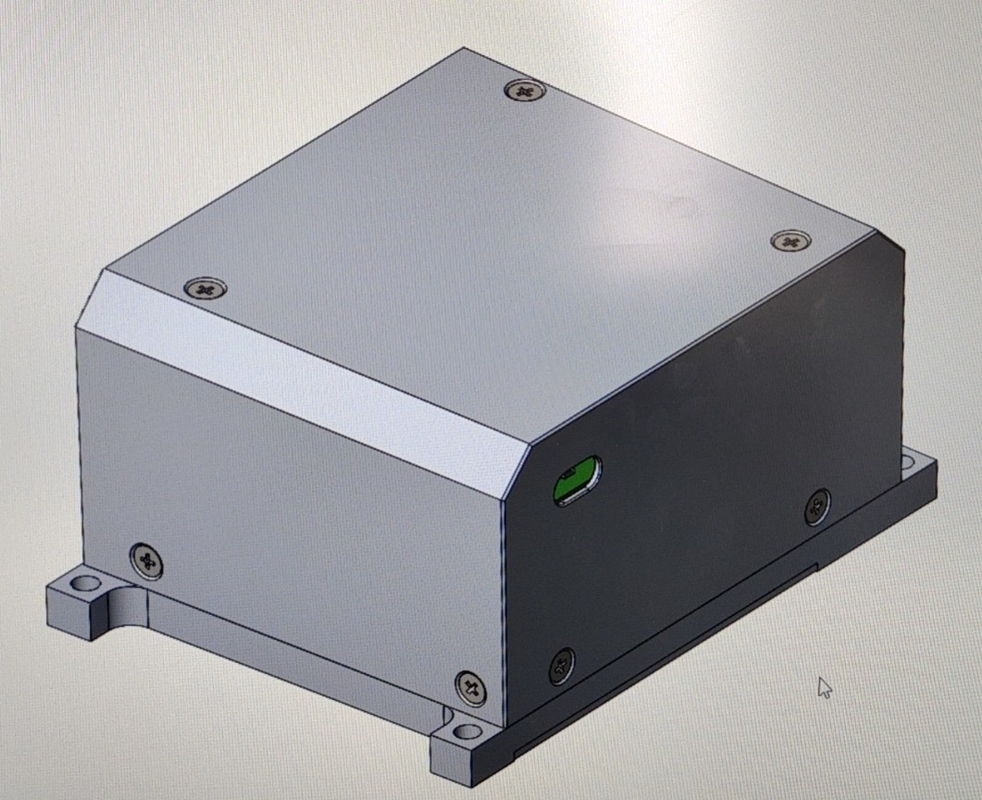

Depicted in the figure below, the KSFG3X36-1 fiber optic gyro is a three-axis gyro with low precision, offering advantages like a compact form factor, lightweight build, absence of moving parts, high reliability, and extended lifespan. Its digital output is easily integrated into systems, enabling its use in aviation, aerospace, maritime, defense, coal mine measurements, automotive electronics, and diverse fields.
The fiber optic gyroscope principle, rooted in optical principles, serves as the foundation for inertial navigation instruments. Optical fiber characteristics are harnessed to measure rotational angular speed, facilitating accurate determination of directions such as heading, pitch, and roll. The rotation of the optical loop induces changes in the optical path, and by detecting the resulting phase difference or interference fringe changes, the rotation angular speed of the optical path is measured.
Features:
- Product Name: Electronic Gyroscope Sensor, Gyro North Finder, Inertial Navigation Sensor
- Scale factor asymmetry(ppm): ≤50/≤100
- Range of measurement(°/s): -500~+500/-500~+500
- Zero bias stability(1,10s) (°/h): ≤0.5/≤1
- Operating temperature(℃): -40~+60
- Zero bias repeatability(1,10s) (°/h): ≤0.5/≤1
Technical Parameters:
| Number |
Parameter |
Units |
I |
II |
| 1 |
Zero bias stability(1s,10s) |
°/h |
≤0.5 |
≤1 |
| 2 |
Zero bias repeatability(1s,10s) |
°/h |
≤0.5 |
≤1 |
| 3 |
Zero bias stability at full temperature(1s,10s) |
°/h |
≤1 |
≤2 |
| 4 |
Random walk coefficients |
°/h1/2 |
≤0.01 |
≤0.1 |
| 5 |
Scale factor nonlinearity |
ppm |
≤50 |
≤100 |
| 6 |
Scale factor asymmetry |
ppm |
≤50 |
≤100 |
| 7 |
Repeatability of the scale factor |
ppm |
≤50 |
≤100 |
| 8 |
Full temperature scale factor change |
ppm |
≤250 |
≤500 |
| 9 |
Range of measurement |
°/s |
-500~+500 |
-500~+500 |
| 10 |
bandwidth |
Hz |
³500 |
³500 |
| 11 |
Steady-state power consumption |
W |
≤5.0 |
≤5.0 |
| 12 |
Resistance of insulation |
MΩ |
＞100 |
＞100 |
| 13 |
Operating temperature |
℃ |
-40~+60 |
-40~+60 |
| 14 |
Temperature of storage |
℃ |
-50~+75 |
-50~+75 |
| 15 |
weight |
g |
≤300 |
≤300 |
| 16 |
Dimensions |
mm |
60*70*40 |
60*70*40 |
Support and Services:
Electronic Gyroscope Sensor Technical Support and Service
We provide technical support and service for the Electronic Gyroscope Sensor to ensure an optimal user experience.
- 24/7 technical support
- Frequent software updates
- Troubleshooting assistance
- Replacement parts
- Installation assistance
- User manuals
- Live chat support
Packing and Shipping:
Packaging and Shipping The Electronic Gyroscope Sensor will be packaged and shipped in a box with a foam insert to protect it from any potential damage incurred during shipping. The box will be labeled with the product name and a barcode. The package will be shipped via a reliable shipping provider and tracking information will be provided.
