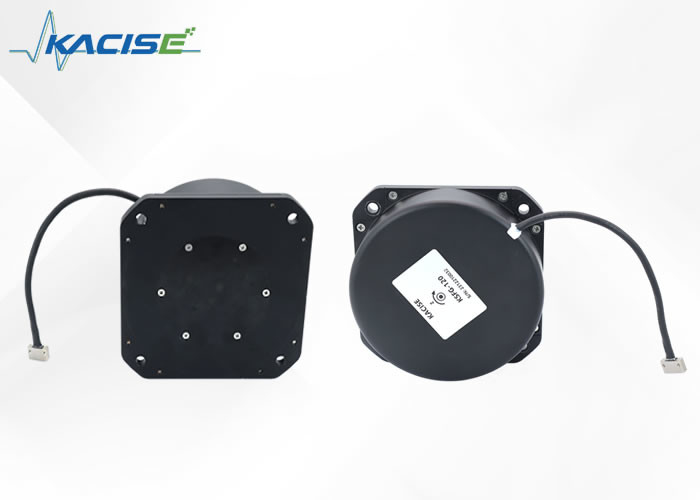

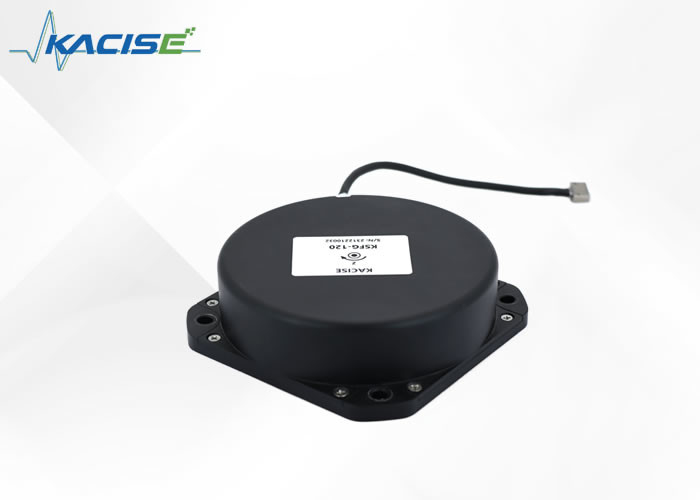

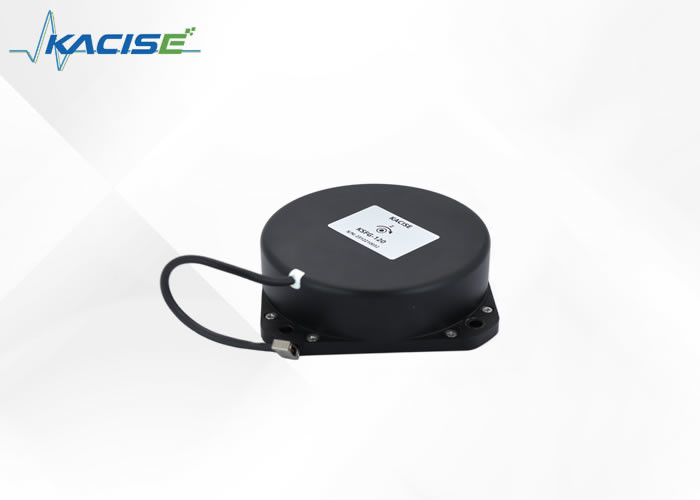

Product Description:
This product functions as an inertial angle rate sensor based on the optical Sagnac effect, measuring the rotational angular velocity along the carrier's sensitive axis. A digital closed-loop detection circuit extracts the optical path difference of clockwise light caused by external physical angular speed. Modulation and demodulation of the optical path signal's voltage enable closed-loop feedback and control, ensuring real-time detection of angular velocity signals.
Components and Functionality: Comprising an optical angular velocity sensitive unit and a signal detection module, the product provides information on uniaxial angle increments and internal temperature.
Areas of Use: Mainly suitable for photoelectric cranes, conventional cranes, flying platforms, inertial navigation, inertial measurement systems, optical instruments, photographic devices, platform stabilization equipment, inertial measurement instruments, and other applications.
Technical Parameters:
| Sn# |
Test item |
H |
L |
| 1 |
Dimensions (mm) |
120×120×38 |
120×120×38 |
| 2 |
Start time (s) |
5 |
5 |
| 3 |
Bias drift (°/h) (10s smooth, fix temperature) |
≤0.001 |
≤0.003 |
| 4 |
Bias drift (°/h) (10s smooth -45~+70℃) |
≤0.003 |
≤0.006 |
| 5 |
Bias repeatability (°/h) |
≤0.001 |
≤0.003 |
| 6 |
Random walk coefficient(°/h1/2) |
≤0.0003 |
≤0.0008 |
| 7 |
Scale factor non-linearity (ppm) |
≤5 |
≤10 |
| 8 |
Scale factor repeatability (ppm) |
≤5 |
≤10 |
| 9 |
Operate temperature (℃) |
-45～+70 |
-45～+70 |
| 10 |
Storage temperature (℃) |
-50～+80 |
-50～+80 |
| 11 |
Dynamic range (°/s) |
±300 |
±300 |
| 12 |
Supply voltage (V) |
±5 |
±5 |
| 13 |
Steady-state power consumption (full temperature) (W) |
<6 |
<6 |
| 14 |
Weight (g) |
＜1000 |
＜1000 |
Dimensions
Support and Services:
The technical support and service for the Electronic Gyroscope Sensor include:
- Providing online and offline technical support services.
- Making sure the product is in full working condition.
- Providing free repair services if the product has any issues.
- Providing customers with comprehensive product training.
- Providing timely updates on product information.
- Taking customer feedback and suggestions seriously.
Packing and Shipping:
Packaging and Shipping for Electronic Gyroscope Sensor
All orders of electronic gyroscope sensor are shipped in secure packaging. The packaging includes the following components:
- A foam cushion to secure the device
- An anti-static bag for added protection
- A cardboard box to protect from external damage
All orders are shipped via a reputable carrier, such as UPS or FedEx.
