Product Description:

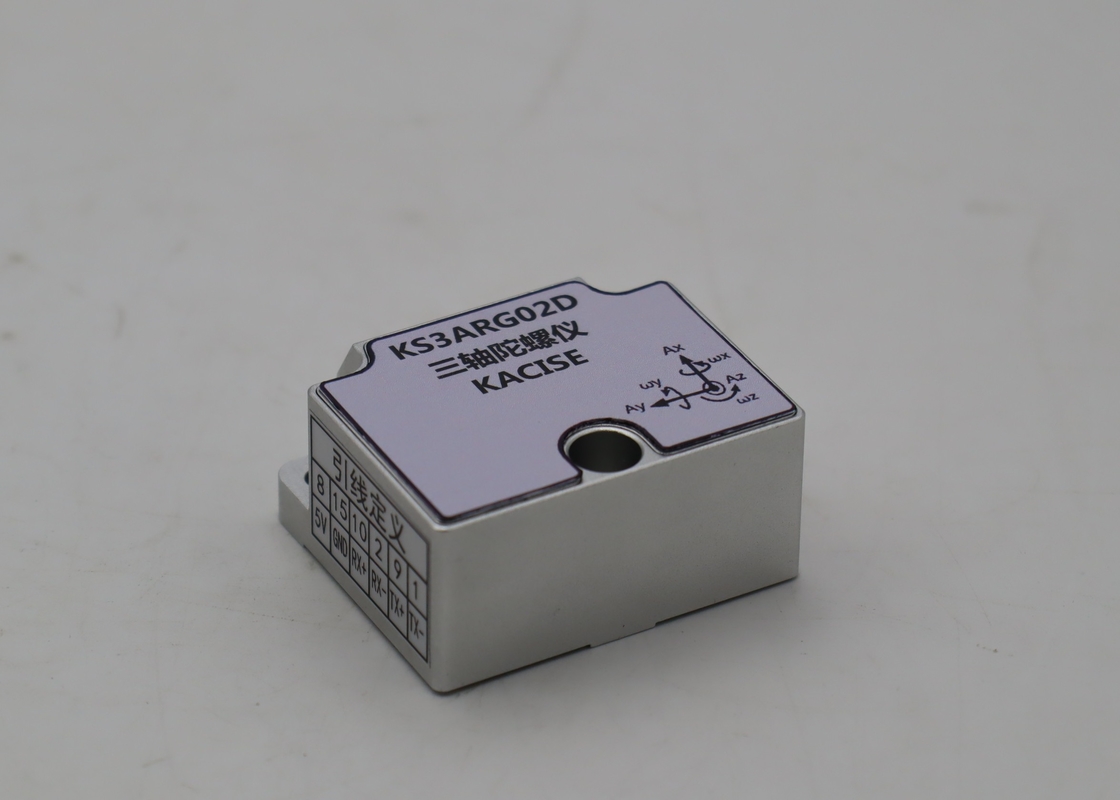

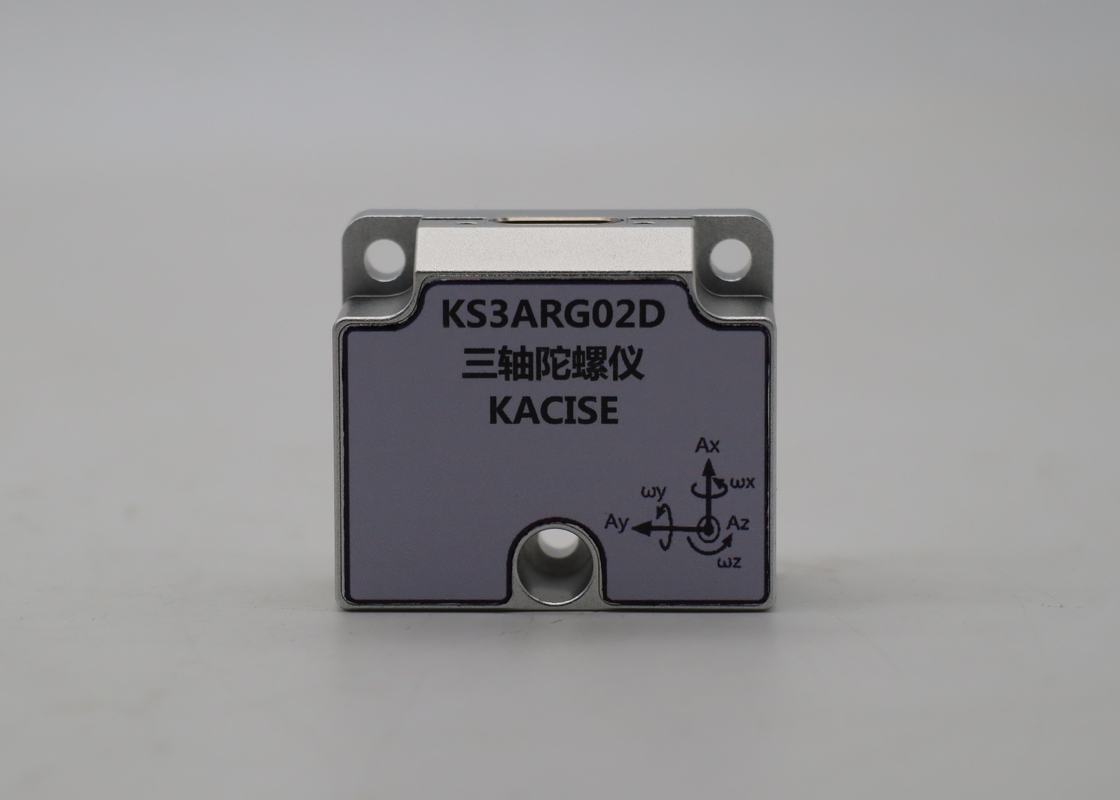

The KS3ARG-02D series introduces a solid-state angular rate sensor (gyro) designed for precision angular rate measurement. Utilizing micromechanoelectronic system (MEMS) technology chips manufactured through the bipolar metal oxide semiconductor (BIMOS) production process and employing spherical grid arrangement of current carrier welding technology, this sensor ensures high reliability and package ruggedness. Featuring a Self-Test function for in-machine detection (BIT), zero bias calibration, temperature drift compensation, wide measurement range, wide bandwidth, non-linear correction, and more, it stands out with its wide operating temperature range, compact size, light weight, and high impact acceleration resistance.
Functioning as an essential inertial measurement component, this product exhibits versatility across a spectrum of technical applications. Its usage spans intelligent automotive systems, geological exploration endeavors, robotic technologies, missile guidance and control systems, aircraft stability control mechanisms, strapdown inertial navigation solutions, antenna stabilization tasks, cameras, and other related fields.
Features:
- Small size
- Light weight
- Wide bandwidth
- Wide measurement range
- Temperature drift compensation
- Bias calibration
- High impact acceleration resistance
-
Technical Parameters:
| Performance parameter |
KS3ARG-02D |
| gyro |
range
(deg/s)
|
±500(triaxial) |
| Zero-bias(deg/s) |
≤±0.1(In 500°/s) |
| Zero-bias stability(deg/h) |
≤0.5allan deviation |
| Zero-bias repeatability(deg/s) |
≤0.05 |
| nonlinearity(%FR) |
≤0.05 |
| Random walk(°/√h) |
0.15 |
| Mean time between failures(Kh MTBF) |
10 |
| Interface characteristic |
power(V) |
DC5 |
| power dissipation(W @5V DC) |
≤1 |
| electrical interface |
RS422 |
| data updating rate(can set) |
2000(Hz@460800) |
| operating environment |
operating temperature(°C) |
-40~+80 |
| storage temperature(°C) |
-55~+85 |
| Vibration(g @ 20~2000 Hz) |
6.06 |
| Shock(g , 0.1 ms, 1/2 Sine) |
5000 |
| physical property |
Size(mm) |
45×39×20 |
| Weight(g) |
≤60 |
Dimension figure
Support and Services:
Electronic Gyroscope Sensor
Technical Support and Services
Our Electronic Gyroscope Sensor is designed to provide accurate and reliable measurements of rotational motion in various applications. Our team of experts is dedicated to providing top-notch technical support and services to ensure that our customers get the most out of our product.
Technical Support
Our technical support team is available to assist with any inquiries or issues related to our Electronic Gyroscope Sensor. We offer online support through our website, email, and phone. Our team is trained to provide prompt and efficient solutions to any technical problems that may arise.
Customization Services
We understand that every application may have unique requirements, and our team is equipped to provide customization services to meet those specific needs. We work closely with our customers to understand their requirements and provide tailored solutions to ensure the best performance of our product.
Warranty
We stand behind the quality and reliability of our Electronic Gyroscope Sensor. We offer a one-year warranty against defects in material and workmanship. In the rare case of any issues, our team will work to quickly resolve the problem and provide a replacement if necessary.
Upgrades and Improvements
We are committed to continuously improving our product to meet the evolving needs of our customers.
Thank you for choosing our Electronic Gyroscope Sensor. If you have any further questions or require technical support, please do not hesitate to contact us.
