Product Description:

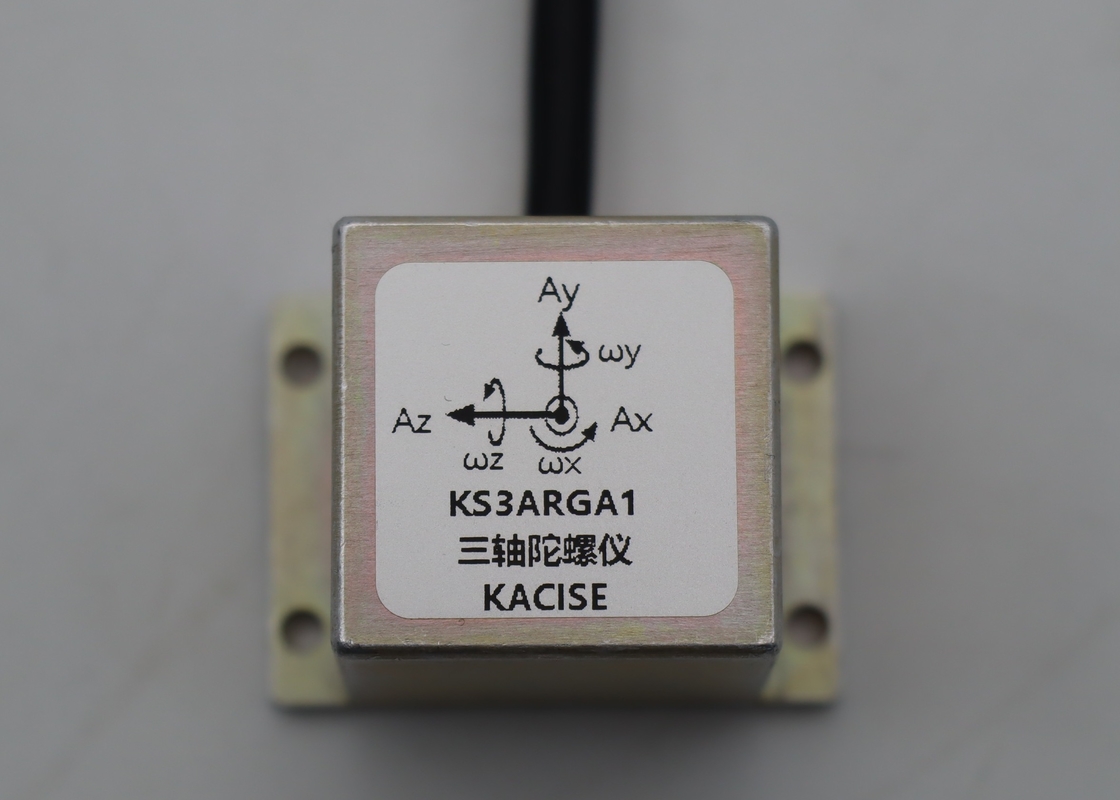

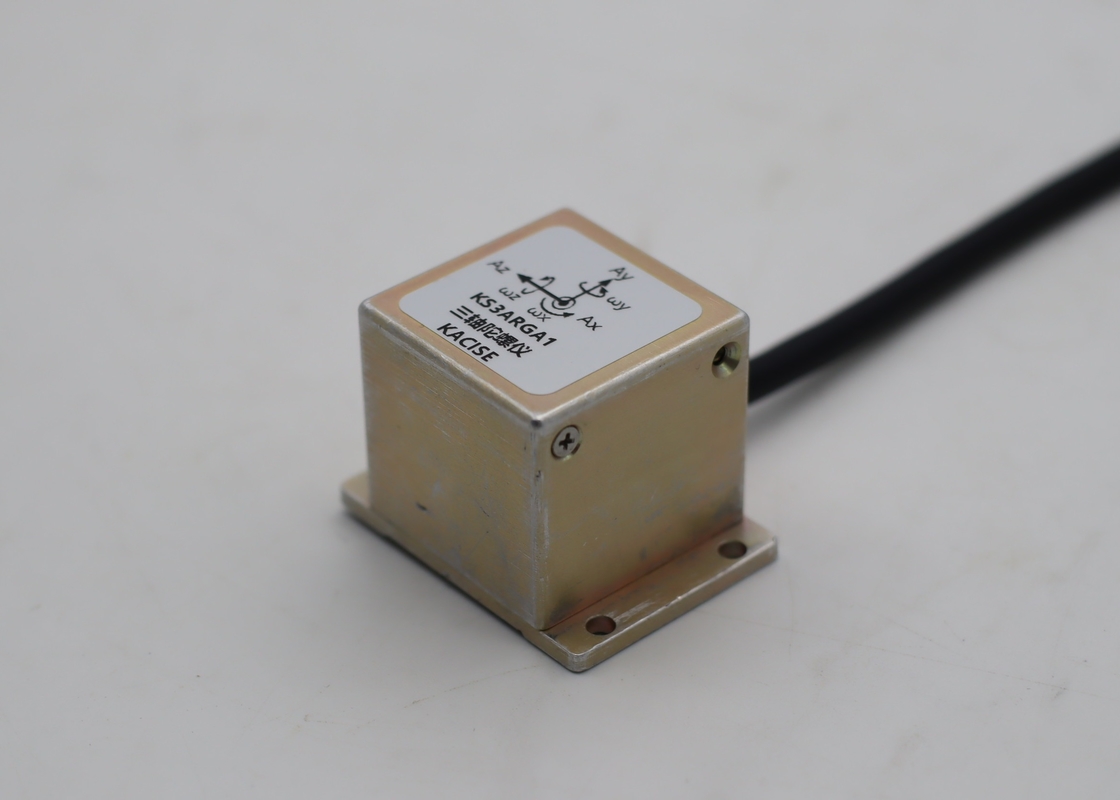

KS3ARG-A1 series three-axis universal angular rate gyro is developed by Kacise, which is used to measure the three-axis angular rate sensor. Each of the three axis angular rate gyro uses MEMS technology chip, with high performance, low cost, high reliability and high package ruggedness, and has Self-Test function. In addition, the product also has low power consumption, wide operating temperature range, wide bandwidth, small size, fast start, DC input DC output and so on.
It can be widely used in automotive electronics, aircraft guidance and control, attitude reference system, platform stabilization, robot, antenna stabilization, camera, digital camera gyro and other systems.
Features:
- fast start
- small size
- wide bandwidth
- wide operating temperature range
- low power consumption
- DC input DC output
Technical Parameters:
| Parameter |
ωx |
ωy |
ωz |
| Range(°/s) |
±250 |
±250 |
±250 |
| Offset voltage(V) |
2.5±0.05 |
2.5±0.05 |
2.5±0.05 |
| Scaling factor(mv/°/s) |
8±0.5 |
8±0.5 |
8±0.5 |
| Output voltage(V) |
0.5-4.5 |
0.5-4.5 |
0．5-4.5 |
| Nonlinearity(%FR) |
≤0.05 |
≤0.05 |
≤0.05 |
| Resolution/Threshold(°/s) |
≤0.1 |
≤0.1 |
≤0.1 |
| Cross coupling(%) |
≤2 |
≤2 |
≤2 |
| Output noise(°/s√Hz) |
<0.02 |
<0.02 |
<0.02 |
| run-up time(ms) |
≤20 |
≤20 |
≤20 |
| Bandwidth(Hz)can customize |
80 |
80 |
80 |
| G-value sensitivity(°/s/g) |
<0.02 |
| Mean time between failures(MTBF) |
100000hour |
| Oerating Environment |
| Operating temperature range(°C) |
-45～+80 |
| Storage temperature(°C) |
-65～+125 |
| Tolerated acceleration(g) |
20000(0.1ms) |
| Size(mm) |
34×25×24 |
| Weight(g) |
≤40 |
Dimension figure
Support and Services:
Electronic Gyroscope Sensor
Technical Support and Services
Our Electronic Gyroscope Sensor is designed to provide accurate and reliable measurements for a variety of applications. To ensure the best performance and user experience, we offer comprehensive technical support and services for our product.
Product Support
- Installation and setup assistance
- Troubleshooting and technical issue resolution
- Product manuals and documentation
- Firmware updates and bug fixes
- Product warranty and repair services
Application Support
We understand that every application has unique requirements and challenges. Our team of experts is available to provide guidance and support for integrating our Electronic Gyroscope Sensor into your specific application.
Training and Resources
To help you get the most out of our product, we offer training and resources such as:
- Product tutorials and demos
- Webinars and workshops
- Technical articles and whitepapers
- Online support forum and knowledge base
Customization and OEM Services
We also offer customization and OEM services for our Electronic Gyroscope Sensor to meet the specific needs of your business or project. Our team will work closely with you to develop a tailored solution that fits your requirements and budget.
For any technical support or service inquiries, please contact our customer support team. Thank you for choosing our product.
Packing and Shipping:
Electronic Gyroscope Sensor Packaging and Shipping
Our Electronic Gyroscope Sensor is carefully packaged to ensure safe and secure delivery to our customers. Each package includes the following:
- Electronic Gyroscope Sensor
- User manual
- Warranty card
The packaging is made from durable and eco-friendly materials to minimize waste and reduce our environmental impact.
Shipping Information
Our Electronic Gyroscope Sensor can be shipped worldwide. We offer multiple shipping options to meet our customers' needs:
- Standard Shipping: Estimated delivery time of 7-14 business days.
- Express Shipping: Estimated delivery time of 3-5 business days.
- International Shipping: Estimated delivery time varies by country.
Once your order has been shipped, you will receive a tracking number via email to monitor the status of your delivery.
Please note that shipping costs and delivery times may vary depending on your location and chosen shipping method.
Customs and Duties
Customers are responsible for any customs and duties fees that may apply to their order. These fees are not included in the total cost at checkout and must be paid upon delivery.
