Product Description:

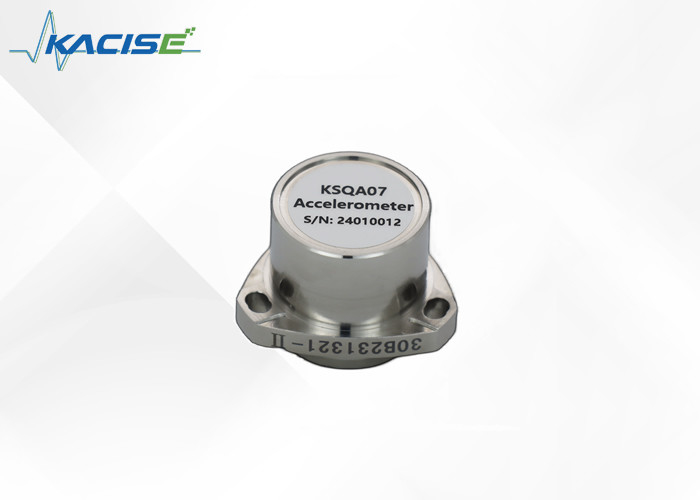

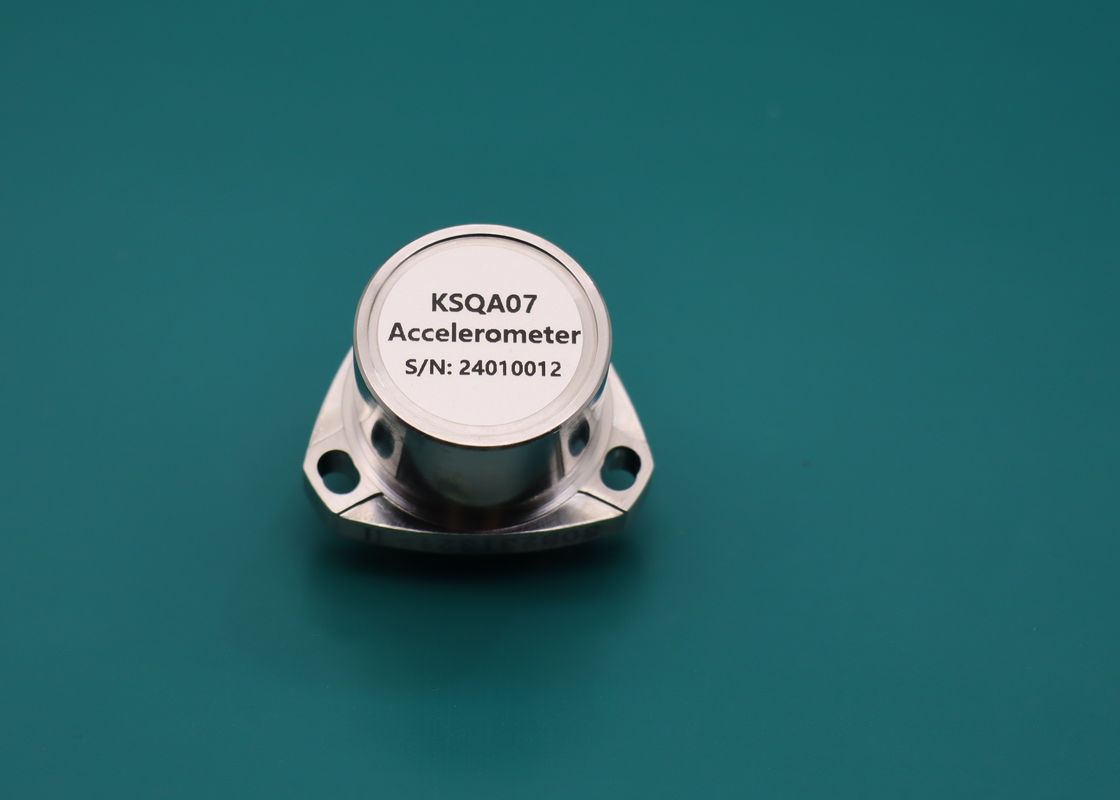

Quartz Flexible Accelerometer: Precision Instrument for Accurate Acceleration Measurements
The quartz flexible accelerometer is a state-of-the-art precision instrument that comprises a quartz glass flexible support and advanced servo circuit based on the principle of inertia. When a carrier is subjected to acceleration, the output of the accelerometer is precisely proportional to the input acceleration.
One of the notable features of our accelerometer is its current output form of high output impedance. Users can choose the sampling resistance according to their requirements without affecting the stability of the system, ensuring optimal performance and accuracy in their measurements.
Our quartz flexible accelerometer comes in a range of products that cater to various applications. Our accelerometer types range from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to low-cost, anti-harsh environment KSQA13 accelerometer, totaling dozens in number.
Our accelerometer is widely used in the aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields, providing signals for navigation, guidance, control, leveling, monitoring, and other systems. This makes our accelerometer the perfect solution for those looking for a reliable and accurate instrument to measure acceleration.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range

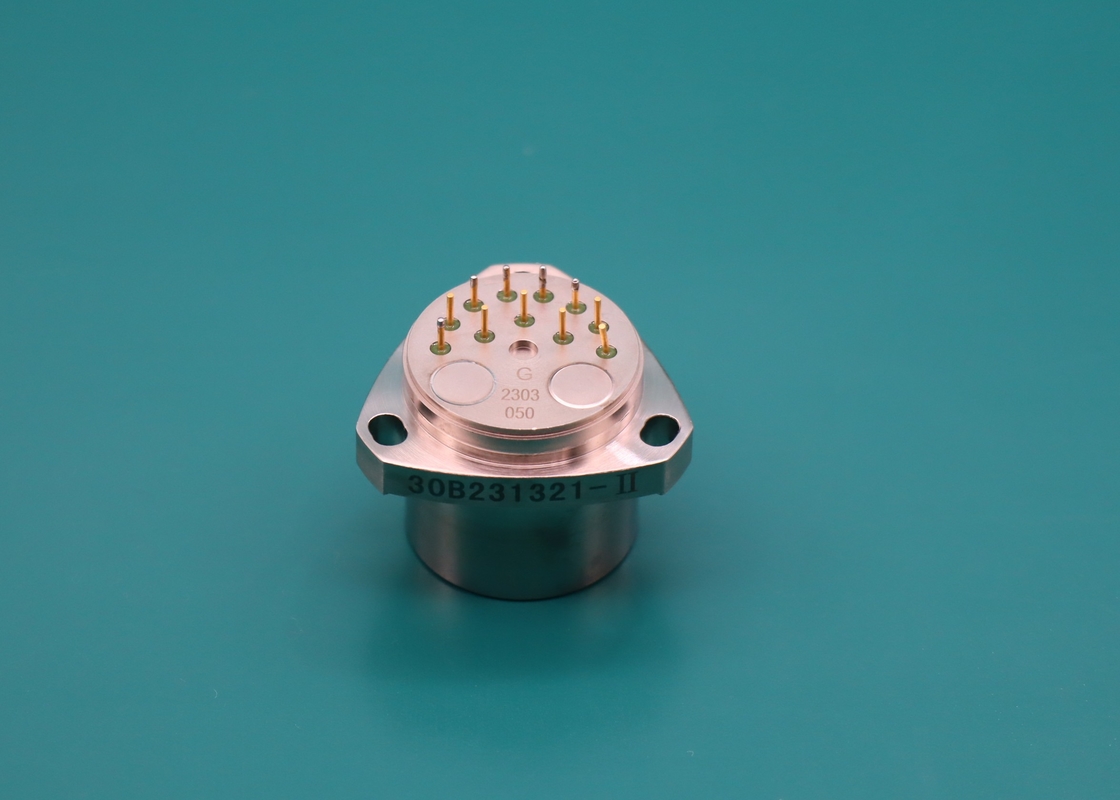

● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Technical Parameters:
| Parameter |
KSQA07A |
KSQA07B |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±50g |
±20g |
| Bias |
≤5mg |
≤5mg |
| Temperature Sensitivity |
≤10μg/°C |
≤20μg/°C |
| One-month Composite Repeatability (1σ) |
≤10μg |
≤20μg |
| Six-month Composite Repeatability (1σ) |
≤15μg |
|
| Scale Factor |
1.2 ~ 1.6mA/g |
1.2 ~ 1.6mA/g |
| Temperature Sensitivity |
≤10ppm/°C |
≤30ppm/°C |
| One-month Composite Repeatability (1σ) |
≤10ppm |
≤30ppm |
| Six-month Composite Repeatability (1σ) |
≤30ppm |
|
| Linearity |
≤10μg/g2 |
≤30μg/g2 |
| Threshold |
<1μg |
<5μg |
| Resolution |
<1μg |
<5μg |
| Size |
Ø25.4×29mm |
Ø25.4×29mm |

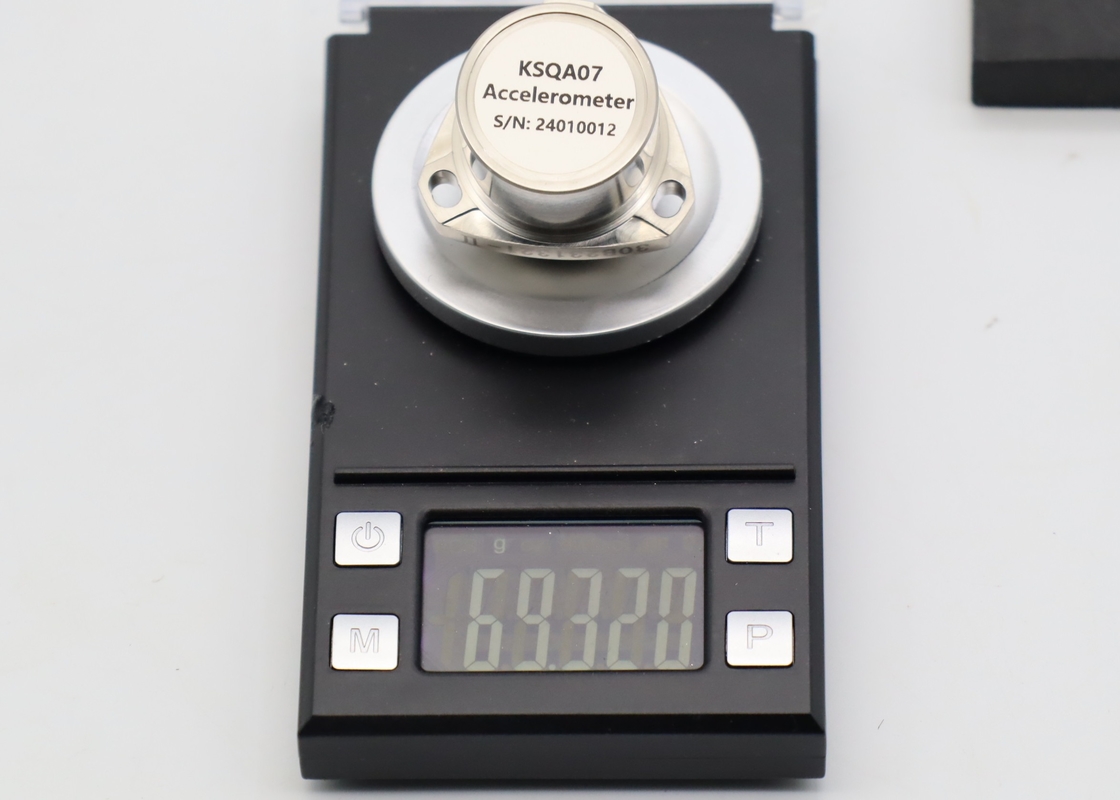

| Weight |
≤75g |
≤75g |
| Environment |
| Operating Temperature |
-45°C~+80°C |
| Storage temperature |
-55°C～+80°C |
| Shock |
100g |
| Vibration Peak Sine |
15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
