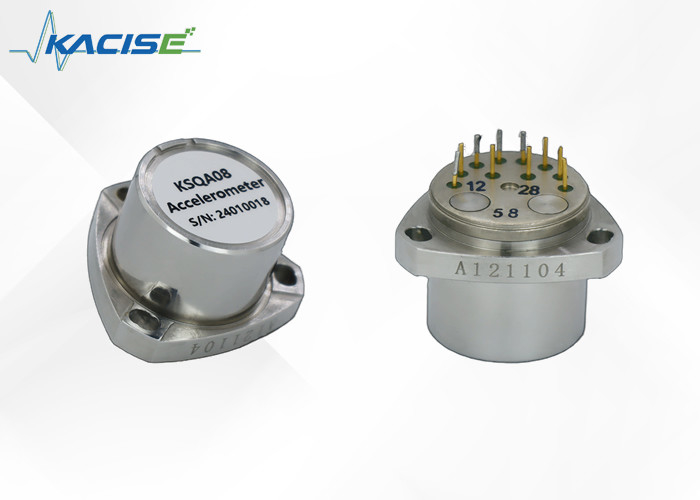

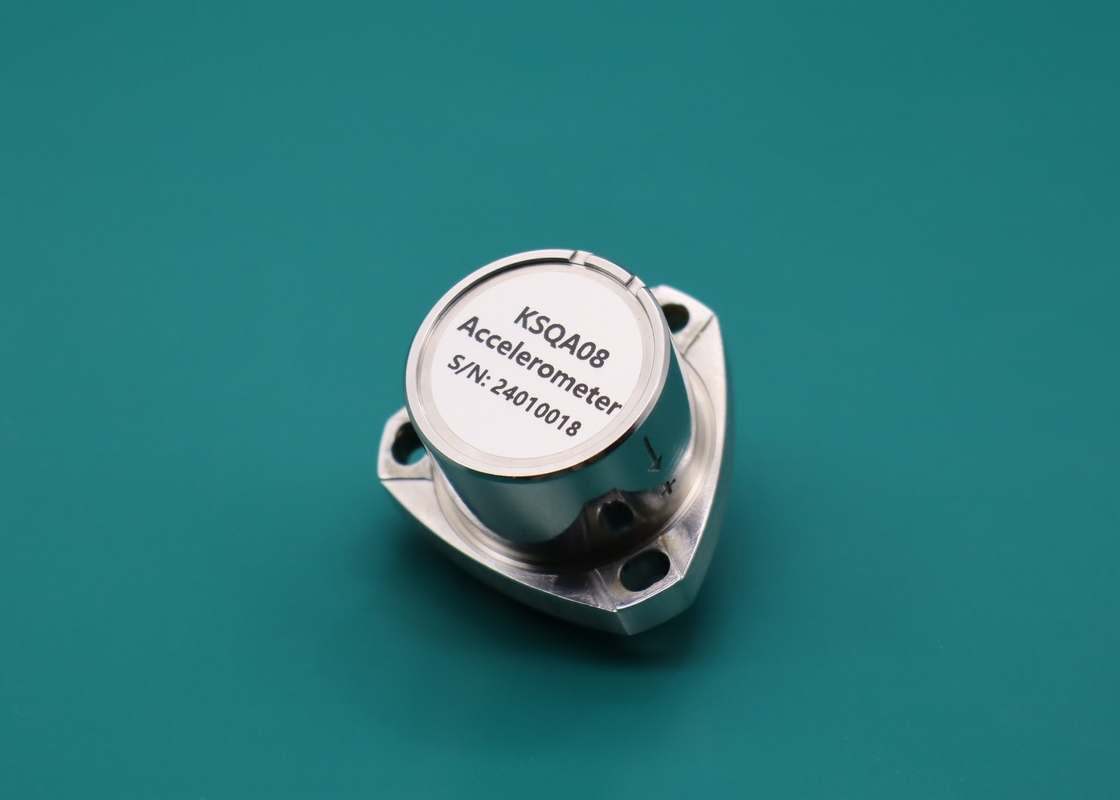

Product Description:
The Quartz Flexible Accelerometer is a precision instrument that is made up of quartz glass flexible support and an advanced servo circuit. The device operates on the principle of inertia. When the carrier undergoes an acceleration, the output of the accelerometer is proportionate to the input acceleration. As a result, users can rely on the output to be precisely indicative of the acceleration experienced.
The accelerometer we offer includes a high output impedance and uses a current output form. Users have the flexibility to choose a sampling resistance according to their needs without having to worry about any disruption in the stability of their system.
We offer a range of quartz flexible accelerometers, from the high-precision μg KSQA07 accelerometer, which is designed for satellite microgravity measurement, to the low-cost anti-harsh environment KSQA13 accelerometer. Our products cover dozens of types and are widely utilized in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering and other fields. These accelerometers are used to provide signals for navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range

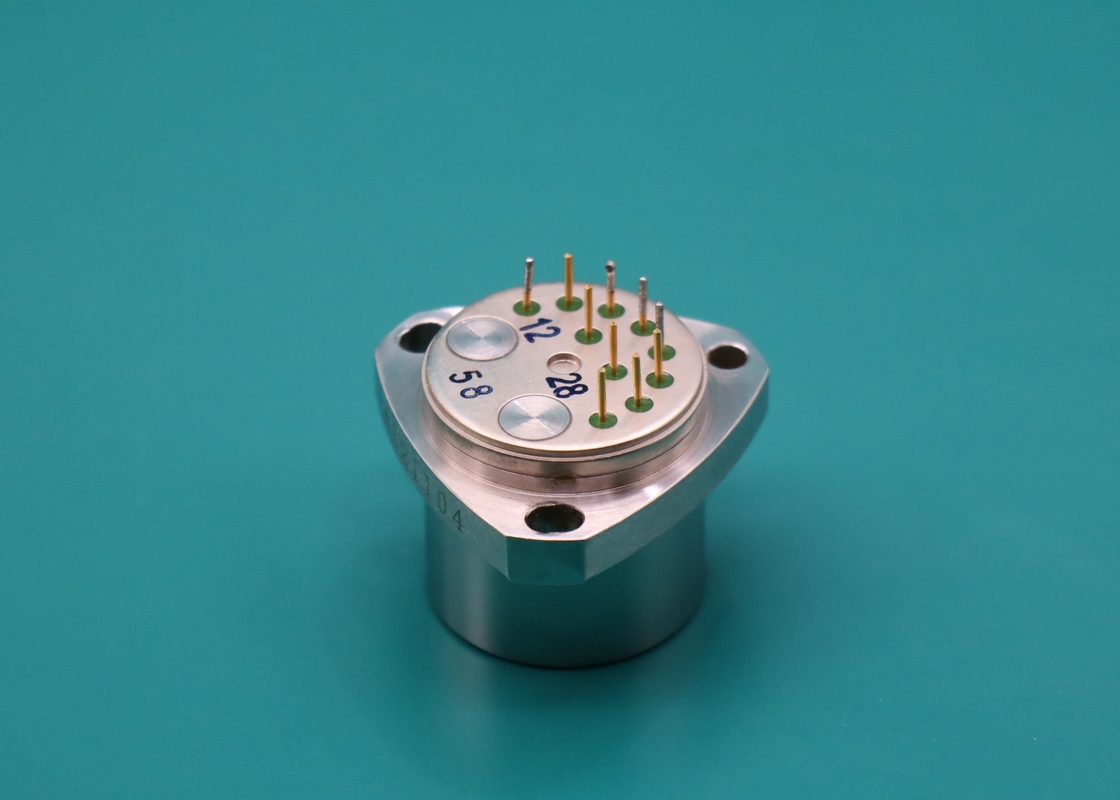

● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Technical Parameters:
| Parameter |
KSQA08A |
KSQA08B |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±20g |
±20g |
| Bias |
≤5mg |
≤5mg |
| Temperature Sensitivity |
≤10μg/°C |
≤30μg/°C |
| One-month Composite Repeatability (1σ) |
≤10μg |
≤30μg |
| Six-month Composite Repeatability (1σ) |
≤30μg |
|
| Scale Factor |
1.2 ~ 1.6mA/g |
1.2 ~ 1.6mA/g |
| Temperature Sensitivity |
≤10ppm/°C |
≤50ppm/°C |
| One-month Composite Repeatability (1σ) |
≤10ppm |
≤40ppm |
| Six-month Composite Repeatability (1σ) |
≤50ppm |
|
| Linearity |
≤10μg/g2 |
≤40μg/g2 |
| Threshold |
<1μg |
<5μg |
| Resolution |
<1μg |
<5μg |
| Size |
Ø25.4×30mm |
Ø25.4×30mm |
| Weight |
≤70g |
≤70g |
| Environment |
| Operating Temperature |
-45°C~+80°C |
| Storage temperature |
-55°C～+80°C |
| Shock |
100g |
| Vibration Peak Sine |
15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Our Accelerometer Sensor product comes with technical support and services to ensure that you get the best performance out of your device. Our team of experts are available to answer any questions you may have about the product including installation, configuration, and troubleshooting. Additionally, we offer calibration services to ensure that your sensor is providing accurate and reliable data. Our team can also assist in the development of custom software and firmware solutions to meet your specific needs.
Packing and Shipping:
Product Packaging:
Our Accelerometer Sensor product comes in a sturdy cardboard box with foam inserts to ensure safe transport and storage. The product is also protected by a plastic cover to prevent any scratches or damage during shipping.
Shipping:
We offer free standard shipping for our Accelerometer Sensor product within the continental United States. For international orders, shipping fees will apply and may vary depending on the destination country. Please allow 1-2 business days for processing and 3-5 business days for delivery within the US. International delivery times may vary depending on the destination country.
