Product Description:

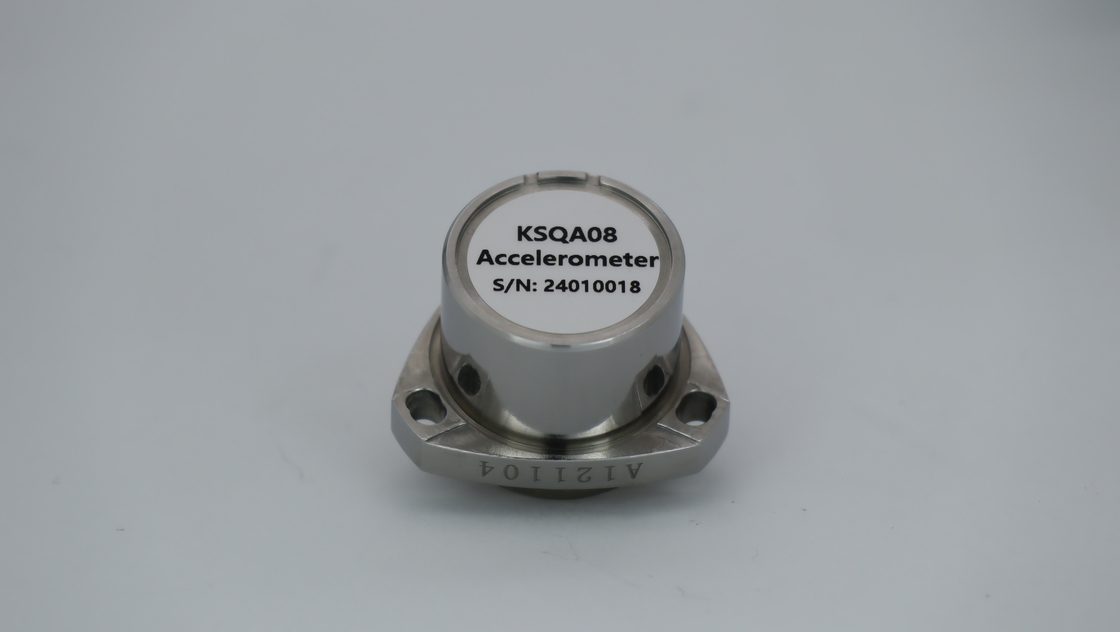

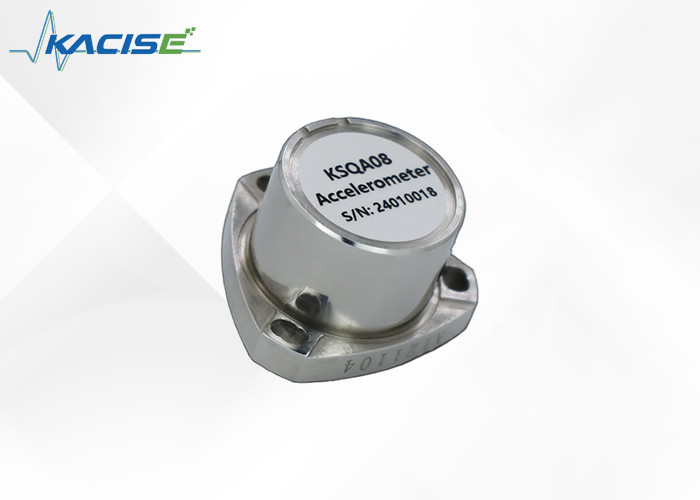

Quartz flexible accelerometer - Precision Instrument for Acceleration Measurement
The Quartz flexible accelerometer is a precision instrument that comprises quartz glass flexible support and advanced servo circuit based on the principal of inertia. This accelerometer is designed to provide precise measurements of acceleration, making it an efficient tool for various applications.
Working Principle of Quartz Flexible Accelerometer
When the carrier is subjected to acceleration, the output of the accelerometer is precisely proportional to the input acceleration. The accelerometer has a current output form of high output impedance, and users can choose the sampling resistance according to their requirement without affecting the stability of the system.
Types and Applications
Our quartz flexible accelerometer products come in a series of types, ranging from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer. With dozens of options available, these accelerometers are widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields to provide signals for navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Technical Parameters:
| Parameter |
KSQA08A |
KSQA08B |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±20g |
±20g |
| Bias |
≤5mg |
≤5mg |
| Temperature Sensitivity |
≤10μg/°C |
≤30μg/°C |
| One-month Composite Repeatability (1σ) |
≤10μg |
≤30μg |
| Six-month Composite Repeatability (1σ) |
≤30μg |
|
| Scale Factor |
1.2 ~ 1.6mA/g |
1.2 ~ 1.6mA/g |
| Temperature Sensitivity |
≤10ppm/°C |
≤50ppm/°C |
| One-month Composite Repeatability (1σ) |
≤10ppm |
≤40ppm |
| Six-month Composite Repeatability (1σ) |
≤50ppm |
|
| Linearity |
≤10μg/g2 |
≤40μg/g2 |
| Threshold |
<1μg |
<5μg |
| Resolution |
<1μg |
<5μg |
| Size |
Ø25.4×30mm |
Ø25.4×30mm |

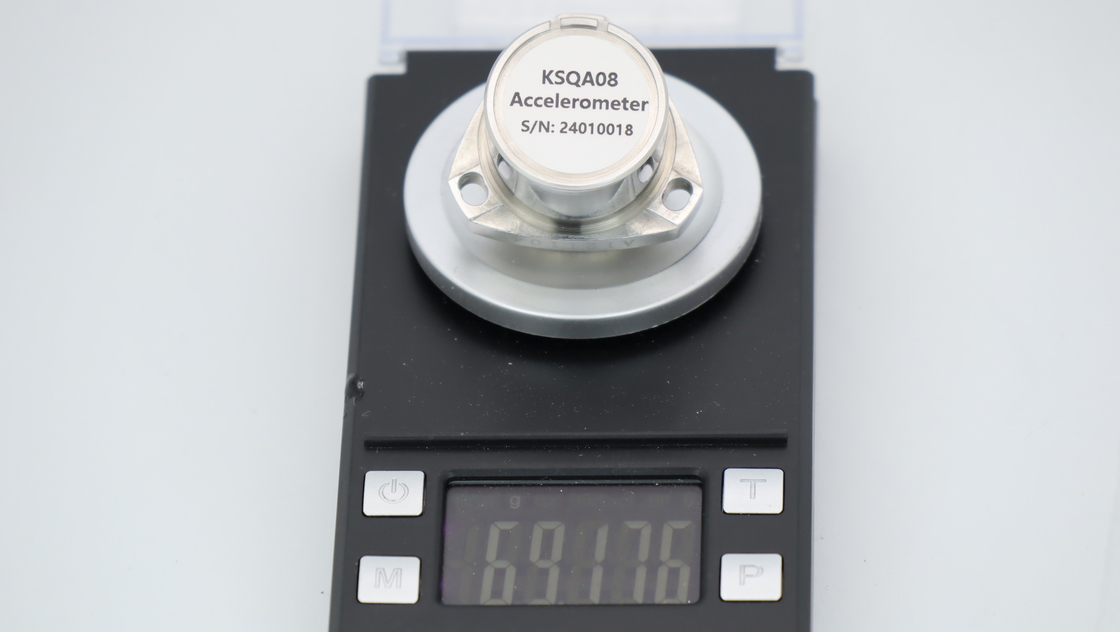

| Weight |
≤70g |
≤70g |
| Environment |
| Operating Temperature |
-45°C~+80°C |
| Storage temperature |
-55°C～+80°C |
| Shock |
100g |
| Vibration Peak Sine |
15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
