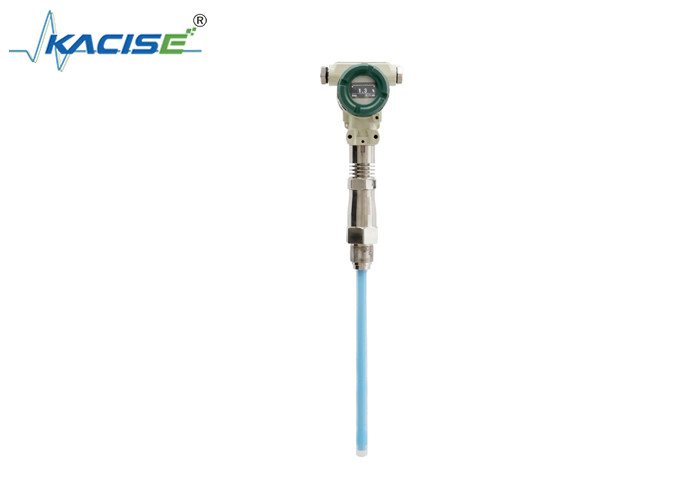

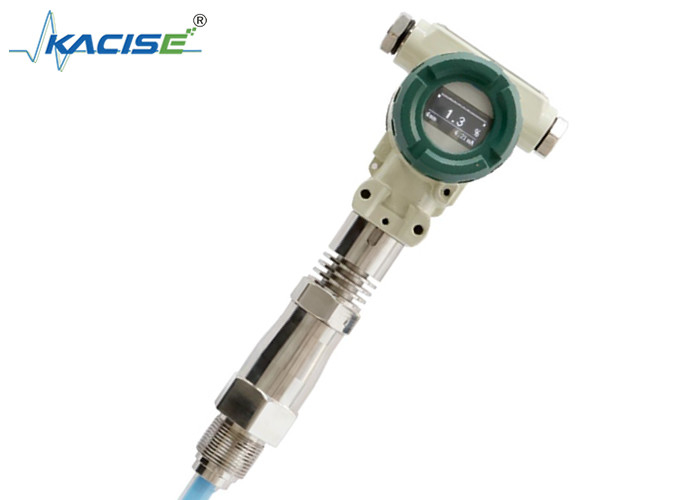

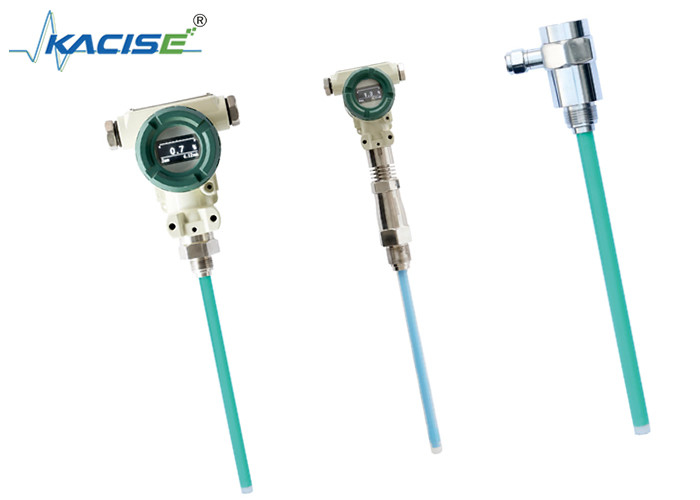

KCF6052-1-900mm Precise Capacitive Level Switch Probe -55℃～+125 ℃ 0.01~30 M Range

Product Description:

The KCF6052 capacitive liquid level sensor is designed to handle challenging substances like sewage, high-viscosity liquids, aerosols, and materials prone to crystallization or adhesion. It features a robust, impact-resistant design with no moving or elastic parts, ensuring high reliability and precision while offering excellent cost performance. This sensor can replace various level sensors for measuring different media.

At the heart of the KCF6052 is an advanced radio frequency capacitance detection circuit. This circuit converts signals from the internal processor into standard electrical signals with high accuracy, utilizing temperature compensation and linear correction. The sensor employs tomographic scanning technology to automatically detect the dielectric constant and temperature changes of the medium. Its superior anti-hanging, anti-condensation, and anti-bubble features allow it to adapt to different measurement requirements without the need for recalibration, even in complex environments.

Feature:

• Automatic adaptation, automatic calibration, long-term stable output of real height value.
• Anti-hanging, anti-condensation, anti-bubble and other anti-fouling ability is super strong.
• Simple structure, no moving parts, high reliability, less maintenance.
• A variety of signal outputs are available for easy access to different systems.
• It is not affected by the temperature, specific gravity, pressure and other factors of the measured liquid.
• The highest temperature resistance is ≤250℃, the highest pressure resistance is ≤4MPa, and the service life is long.
• Good sealing performance, protection grade IP68 (except 6052).
• Perfect over-current, over-voltage, power polarity protection measures.
• Measuring cycle: 0.5 seconds
• Long-term stability: ≤0.1%FS/year
• Temperature drift: ≤0.02%FS/℃ (in the range of -40℃～+80℃)
• Measurement accuracy:

When the measurement range is within 300mm, the absolute error is within ±3mm (including 3mm);

When the measurement range is 300-700mm, the accuracy level is 1.0;

When the measurement range is 700-2000mm, the accuracy level is 0.5;

Technical Parameters:

●Detection range: 0.01~30 m

●Accuracy: level 0.2, level 0.5

●Pressure range: -0.1MPa~32MPa

●Probe temperature: -50~250 ℃

●Ambient temperature: -20~60 ℃

●Storage Temperature: -55℃～+125 ℃

●Output signal: 4～20mA,4 ~ 20mA with HART communication/485/CAN bus communication

●Supply voltage: 12～28VDC (should be powered by the safety barrier)

●Fixation: Screw mounting M20×1.5,M27×2,

Flange mounting DN25,DN40,DN50.Special specifications can be customized

●Wetted material: 316 Stainless steel,1Gr18Ni19Tior or PTFE

●Long-term stability: ≤0.2%FS/Year,

●Temperature drift:≤0.02%FS/℃ ( range of 0～70℃)

●Explosion levels: Intrinsically Safe ExiraⅡC T6, Flameproof Ext II C T5

●Protection:IP67

●Intrinsically Safe parameters:Ui:28VDC,Ii:93mA, Pi: 0.65W, Ci: 0.042uf, Li: 0mH

Installation

Before installation, you must check the product model, technical parameters, installation port, and application environment in detail to ensure that the on-site sensor matches the installation environment. If you find any problems, contact the sales staff as soon as possible to confirm subsequent installation matters or return and exchange matters, so as to avoid damage caused by wrong use. Inaccurate measurement or product damage occurs.

Warning: It is forbidden to install live, disassemble, collide, drop, or hit hard

The liquid level sensor has a variety of installation and fixing methods to adapt to different site conditions. The specific installation is as follows.

1. The sensor is installed on a sealed metal container, which can be connected by flange or thread. When the measuring medium has no stirring, liquid impact, violent swing, etc., it can be installed in a plug-in type, as shown in the figure below: plug-in type installation

2. The sensor is installed on the container where there is stirring, liquid impact, violent swing, etc. in the measurement medium. The sensor can be installed with a connected pipe outside the container through a flange or threaded connection, as shown in the figure below: external installation

3. The measurement medium has stirring, liquid impact, violent swing, etc., and the container does not have the conditions for external installation of connecting pipes. When plug-in installation must be used, the sensor must be equipped with a protective tube. The measuring range exceeds 1000mm, and the container must be reserved. Or install a fixed bracket to ensure that the sensor is damaged due to violent impact of liquid.

4. The sensor can be connected by flange or thread when the non-metallic container or the installation surface is insulated from the inner edge of the container. The sensor option must use an auxiliary electrode or a protective sleeve structure. If the required structure is not adopted, the normal operation of the sensor cannot be guaranteed. Output, you need to install the auxiliary electrode yourself (use one end of the metal wire to connect the sensor shell/flange, and add a counterweight to the bottom of the container at the other end, and reserve a certain length for the wire to avoid damaging the wire), as shown in the figure below: On a non-metallic container , threaded or flange mounted

5. The sensor can be connected to the mounting bracket by flange or thread on the open container. The sensor option must use an auxiliary electrode or a protective sleeve structure. If the required structure is not adopted, the normal working output of the sensor cannot be guaranteed, and an auxiliary device needs to be installed by itself. Electrodes (connect one end of the metal wire to the sensor shell/flange, add a counterweight object to the bottom of the container at one end, reserve a certain length for the wire to avoid damage to the wire), as shown in the figure below: on the open container, install the bracket (the installation position is at a distance from The distance from the pool wall must be greater than 10CM, otherwise the measurement will be inaccurate.

Applications:

Equipped with various output signals such as 4 ~ 20mA, 4 ~ 20mA with HART Communication/485/CAN Bus Communication, the Kacise Fluid Level Meter is highly versatile and can be integrated into different systems.

The range of this fluid level meter is 0.01~30 M, making it suitable for measuring the fluid level in different tank sizes. The power supply voltage of 12～28VDC makes it ideal to be powered by the safety barrier, ensuring safety and reliability.

With a probe temperature range of -50~250 ℃, this fluid level meter can perform even in extreme temperatures. The wetted material is made of 316 Stainless Steel, 1Gr18Ni19Tior or PTFE, providing durability and ensuring it can withstand harsh environments.

Capacitance fuel level sensors used in GPS tracking solutions are becoming increasingly popular in the industry. The Kacise Fluid Level Meter is also a capacitive level switch and can also be used as a capacitive fluid level sensor.

The Kacise Fluid Level Meter is perfect for industries such as oil and gas, chemical, water treatment, and many more. With its accurate and reliable fluid level measurement, it can be used in a wide range of applications, including but not limited to:

• Monitoring the fluid level in storage tanks
• Controlling the fluid level in mixing tanks
• Managing the fluid level in chemical reactors
• Regulating the fluid level in water treatment plants
• Measuring the fluid level in oil and gas exploration and production

The Kacise Fluid Level Meter comes packed in a carton, ensuring it arrives at the customer's location safely. Payment terms require 100% payment in advance.
