Product Description:

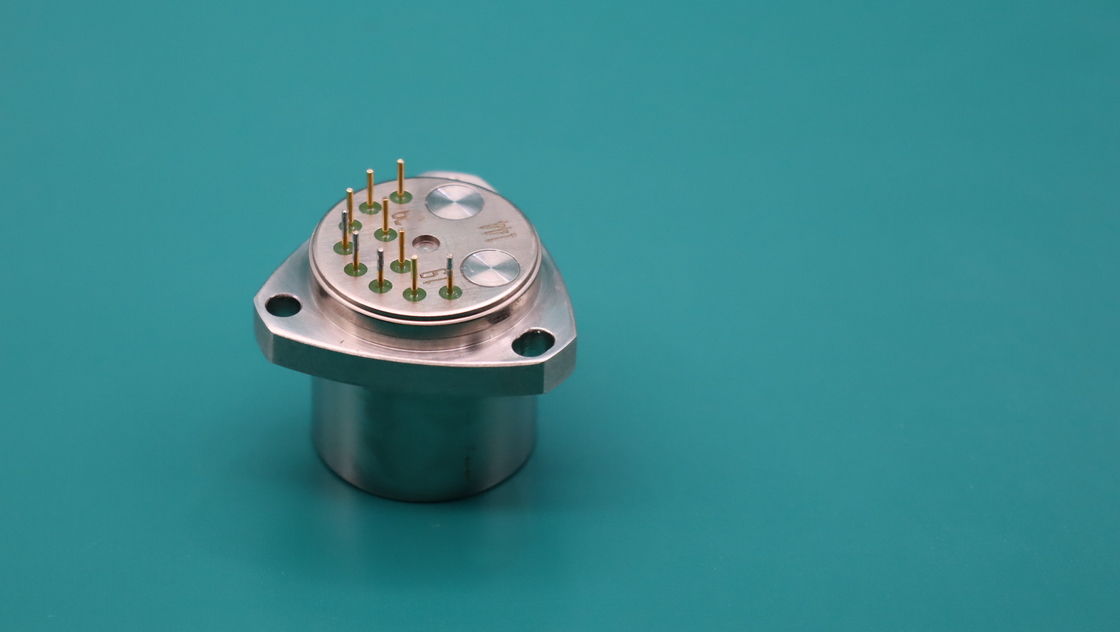

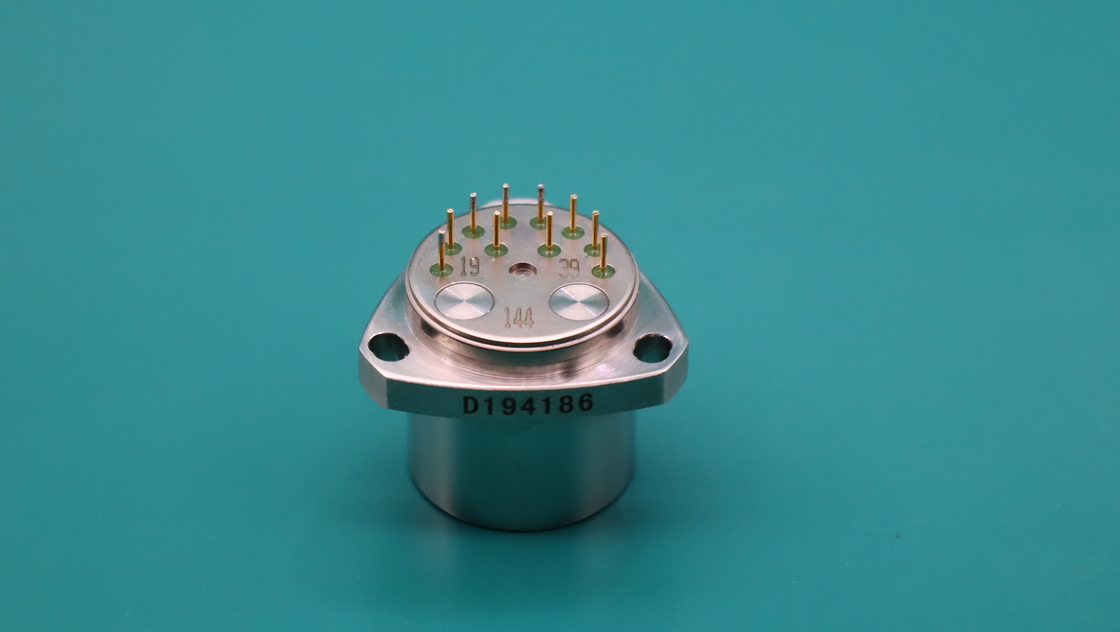

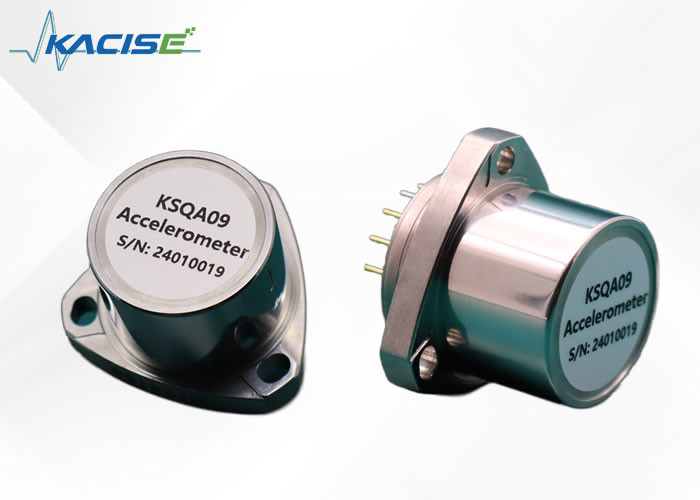

The Quartz Flexible Accelerometer is an instrument that has been precisely crafted for accuracy and precision. It comprises of quartz glass flexible support and advanced servo circuit, following the principal of inertia. When the system is subjected to acceleration, the result is an output that accurately reflects the input acceleration.
The accelerometer outputs a high output impedance in the form of a current. Users can select their sampling resistance depending on their requirements without disrupting the stability of the system.
Our Quartz Flexible Accelerometer has undergone extensive research and development. As a result, we have developed a range of products, which cater to different requirements. Our portfolio includes the high-precision μg KSQA07 accelerometer for satellite microgravity measurements. At the same time, we also offer the low-cost, anti-harsh environment KSQA13 accelerometer.
Our accelerometers are utilised in various industries, including aerospace, aviation, navigation, ship, vehicle, petroleum, and geotechnical engineering. They provide signals for navigation, guidance, control, leveling, monitoring and other systems, making them a versatile and reliable instrument for our customers.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Technical Parameters:
| Parameter | KSQA09A | KSQA09B |
| Power supply parameter |
| Power Voltage | ±12~±18V DC |
| Product performance |
| Input Range | ±80g | ±40g |
| Bias | ≤5mg | ≤5mg |
| Temperature Sensitivity | ≤30μg/°C | ≤50μg/°C |
| One-month Composite Repeatability (1σ) | ≤30μg | ≤60μg |
| Scale Factor | 0.9 ~ 1.3mA/g | 0.9 ~ 1.3mA/g |
| Temperature Sensitivity | ≤50ppm/°C | ≤80ppm/°C |
| One-month Composite Repeatability (1σ) | ≤40ppm | ≤60ppm |
| Linearity | ≤40μg/g2 | ≤40μg/g2 |
| Threshold | <5μg | <5μg |
| Resolution | <5μg | <5μg |
| Size | Ø25.4×30mm | Ø25.4×30mm |
| Weight | ≤80g | ≤80g |
| Environment |
| Operating Temperature | -45°C~+80°C |
| Storage temperature | -55°C～+80°C |
| Shock | 100g |
| Vibration Peak Sine | 20g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
