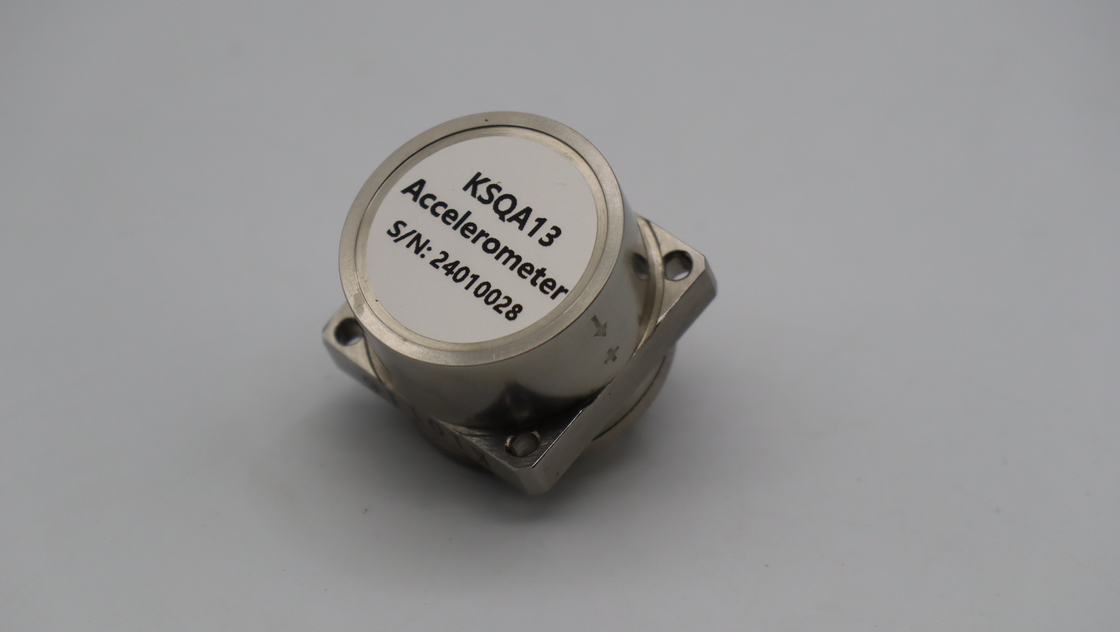

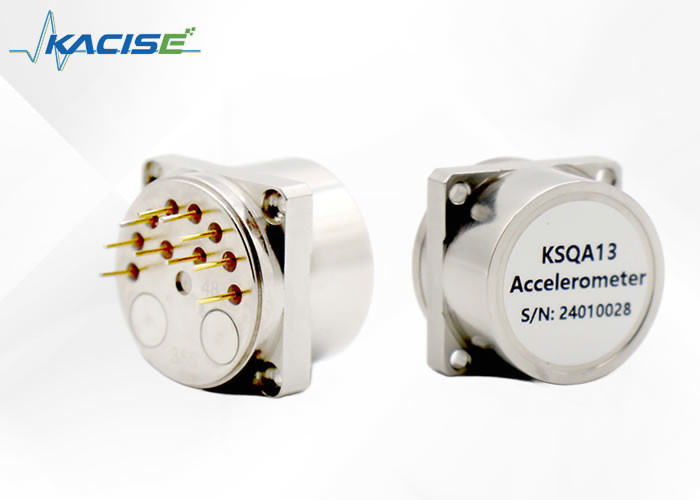

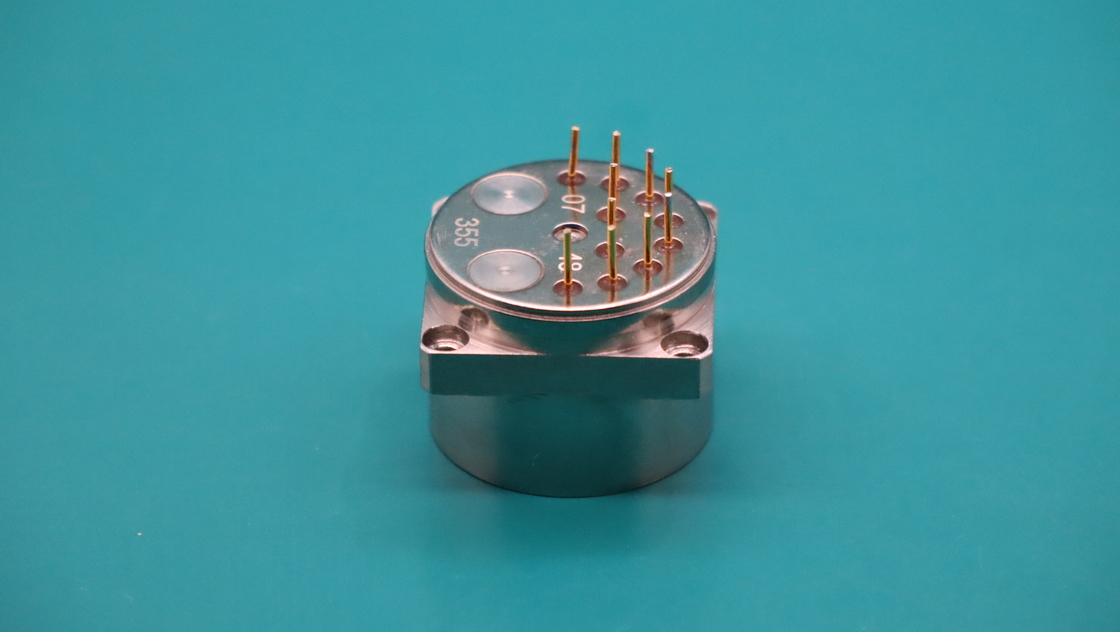

Product Description:
The Quartz Flexible Accelerometer is a precision instrument that consists of a quartz glass flexible support and an advanced servo circuit based on the principle of inertia. If the carrier experiences an acceleration, the output of the accelerometer will be precisely proportional to the input acceleration.
The current output form of our accelerometer maintains a high output impedance, which allows users to choose the sampling resistance according to their individual requirements. This process does not affect the stability of the system.
At present, our Quartz Flexible Accelerometer forms a series of products of various types, ranging from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer, with dozens of other types available. The accelerometer is widely used in various fields, including aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering and many more. It provides signals for navigation, guidance, control, leveling, monitoring and other systems.
Features:
● Excellent index repeatability
● Analog output
● Wide temperature range
● Wide load resistance range
● Small size and light weight
● Shock and vibration resistance
● High temperature resistance
Technical Parameters:
| Parameter | KSQA13 |
| Power supply parameter |
| Power Voltage | ±12~±18V DC |
| Product performance |
| Input Range | ±10g |
| Bias | ≤10mg |
| Temperature Sensitivity | ≤100μg/°C |
| Three-hour Stability(1σ) | ≤100μg |
| Scale Factor | 2.3 ~ 3.5mA/g |
| Temperature Sensitivity | ≤100ppm/°C |
| Three-hour Stability (1σ) | ≤100ppm |
| Size | Ø25×25mm |
| Weight | ≤60g |
| Environment |
| Operating Temperature | -45°C~+100°C |
| Storage temperature | -55°C～+120°C |
| Shock | 500g |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Our Accelerometer Sensor product technical support and services include:
- Assistance with installation and setup
- Troubleshooting and diagnostics
- Repair and replacement services
- Technical documentation and resources
Packing and Shipping:
Product Packaging:
The accelerometer sensor will be packaged in a sturdy cardboard box with cushioning material to prevent damage during transit. The box will also be labeled with the product name and any necessary handling instructions.
Shipping:
The product will be shipped via standard ground shipping unless expedited shipping is requested and paid for by the customer. Shipping costs will be calculated based on the destination and weight of the package. Customers will receive a tracking number once the package has been shipped.
