Name: KSGYR105F Fibre Optic Gyroscope 98×98×35mm -40°C～+70°C
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR105F
Price: 431.00 USD
Availability: InStock

বাড়ি > পণ্য > ইলেকট্রনিক জাইরোস্কোপ সেন্সর >

KSGYR105F Fibre Optic Gyroscope 98×98×35mm -40°C～+70°C

Fibre Optic Gyroscope with wide temperature range

Compact Fibre Optic Gyroscope 98x98x35mm

Fibre Optic Gyroscope for fluid level measurement

Place of Origin:

china

পরিচিতিমুলক নাম:

KACISE

সাক্ষ্যদান:

Model Number:

KSGYR105F

আমাদের সাথে যোগাযোগ

একটি উদ্ধৃতি অনুরোধ করুন

KSGYR105F Fibre Optic Gyroscope 98×98×35mm -40°C～+70°C

পণ্যের বিবরণ

Supply voltage:

+5V

Dimensions:

98×98×35mm

Start time:

≤5s

Operate temperature:

-40°C～+70°C

Weight:

<550g

Power dissipation (full temperature):

<4W

বিশেষভাবে তুলে ধরা:

Fibre Optic Gyroscope with wide temperature range

Compact Fibre Optic Gyroscope 98x98x35mm

Fibre Optic Gyroscope for fluid level measurement

পেমেন্ট ও শিপিংয়ের শর্তাবলী

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Supply Ability

1000 Piece/Pieces per Week negotiable

সম্পর্কিত পণ্য

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

সেরা দাম পান

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

সেরা দাম পান

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

সেরা দাম পান

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

সেরা দাম পান

আমাদের সাথে যোগাযোগ

86--17719566736

এখনই যোগাযোগ করুন

পণ্যের বর্ণনা

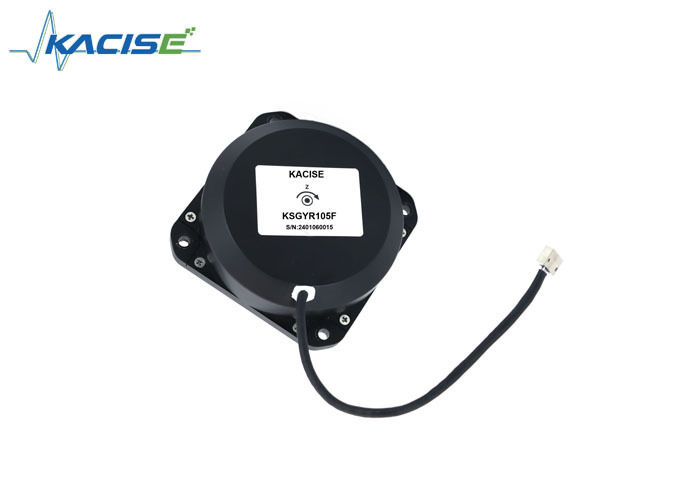

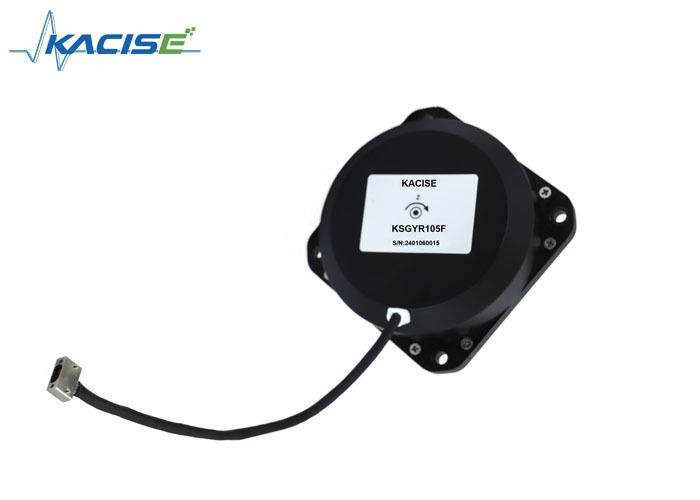

KSGYR105F Fibre Optic Gyroscope

Product Attributes

Supply voltage	+5V
Dimensions	98×98×35mm
Start time	≤5s
Operate temperature	-40°C～+70°C
Weight	<550g
Power dissipation (full temperature)	<4W

Product Description

KSGYR105F Fibre Optic Gyroscope

This inertial angle rate sensor measures rotational angular velocity along the sensitive axis using the optical Sagnac effect. It employs a digital closed-loop detection circuit to extract optical path differences caused by external angular speed, with voltage signal modulation and demodulation for real-time angular velocity detection.

Function

Comprising an optical angular velocity sensitive unit and signal detection components, this product provides uniaxial angle increment information and internal temperature data.

Features

Accurately measures angular speed of moving objects
All solid state design with no rotating or friction parts
Long operational lifespan
Instant start capability
Simple structural design
Low bias performance

Applications

Gimbal camera systems
Flight control platforms
Inertial navigation systems
Inertial monitoring systems
Optical, photography and stabilization platforms
Inertial measurement units

Technical Specifications

Parameter	KSGYR105FH	KSGYR105FL
Power supply parameter
Supply voltage	+5V	+5V
Product performance
Dimensions	98×98×35mm	98×98×35mm
Start time	≤5s	≤5s
Bias (10s smooth, fix temperature)	≤0.015°/h	≤0.03°/h
Bias stability (10s smooth -45°C~+70°C)	≤0.03°/h	≤0.06°/h
Bias repeatability	≤0.005°/h	≤0.01°/h
Random walk	≤0.001°/h1/2	≤0.002°/h1/2
Scale factor non-linearity	≤10ppm	≤20ppm
Scale factor repeatability	≤10ppm	≤20ppm
Dynamic range	±300°/s	±300°/s
Power dissipation (full temperature)	<4W	<4W
Weight	<550g	<550g
Environment
Operate temperature	-40°C～+70°C	-40°C～+70°C
Storage temperature	-45°C～+80°C	-45°C～+80°C
