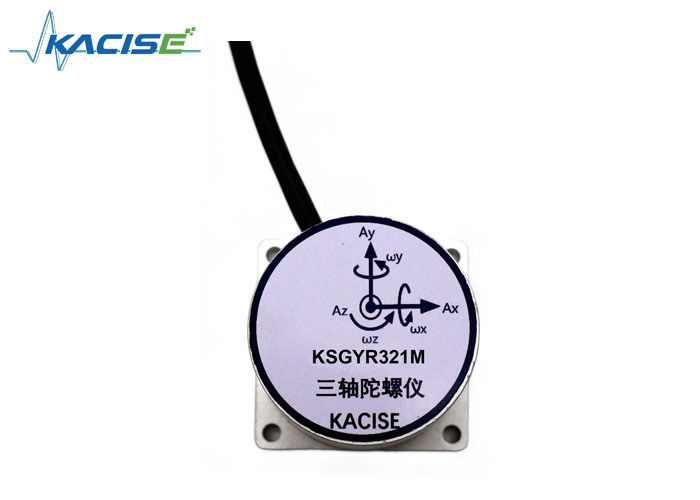

Name: KSGYR321M MEMS Gyroscope ±300°/s Range High Precision
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR321M
Price: 431.00 USD
Availability: InStock

বাড়ি > পণ্য > ইলেকট্রনিক জাইরোস্কোপ সেন্সর >

KSGYR321M MEMS Gyroscope ±300°/s Range High Precision

high precision MEMS gyroscope

MEMS gyroscope ±300°/s range

fluid level meter gyroscope

Place of Origin:

CHINA

পরিচিতিমুলক নাম:

KACISE

সাক্ষ্যদান:

Model Number:

KSGYR321M

আমাদের সাথে যোগাযোগ

একটি উদ্ধৃতি অনুরোধ করুন

KSGYR321M MEMS Gyroscope ±300°/s Range High Precision

পণ্যের বিবরণ

পরিসীমা (°/গুলি):

± 300 (বিকল্প)

পক্ষপাতের স্থায়িত্ব (ডিগ্রি/এইচ ， অ্যালান বিচ্যুতি):

≤12

পক্ষপাত পুনরাবৃত্তিযোগ্যতা (ডিগ্রি/গুলি):

≤0.15

অরৈখিকতা (%এফআর):

≤0.1

রেজোলিউশন (ডিগ্রি/গুলি):

≤0.05

ব্যান্ডউইথ (এইচজেড):

≥80

বিশেষভাবে তুলে ধরা:

high precision MEMS gyroscope

MEMS gyroscope ±300°/s range

fluid level meter gyroscope

পেমেন্ট ও শিপিংয়ের শর্তাবলী

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Supply Ability

1000 Piece/Pieces per Week negotiable

সম্পর্কিত পণ্য

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

সেরা দাম পান

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

সেরা দাম পান

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

সেরা দাম পান

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

সেরা দাম পান

আমাদের সাথে যোগাযোগ

86--17719566736

এখনই যোগাযোগ করুন

পণ্যের বর্ণনা

KSGYR321M High Precision MEMS Gyroscope ±300°/s Range

Key Specifications

Attribute	Value
Range (°/s)	±300 (options)
Bias stability (deg/h, allan deviation)	≤12
Bias repeatability (deg/s)	≤0.15
Nonlinearity (%F.R)	≤0.1
Resolution (deg/s)	≤0.05
Bandwidth (Hz)	≥80

Product Overview

The KSGYR321M is a high-performance three-axis digital gyroscope featuring compact size and exceptional overload resistance. Designed for precision navigation, control systems, and dynamic measurement applications in demanding environments, this MEMS-based inertial device delivers reliable angular velocity measurement under harsh conditions.

Applications

Ideal for systems requiring wide operating temperature range, fast startup, and high precision including:

Weapon guidance and control systems
Engineering equipment control
Platform stabilization
Pipeline robotics
Underwater vehicles

Key Features

Exceptional stability and precision
Optional analog and digital outputs
Wide measurement range
Rapid startup capability

Technical Specifications

Parameter	Specification
Number of Axes	3
Power Voltage	5V DC
Power Consumption @25°C	1W
Supply Current	≤200mA
Output	RS422
Data Update Rate	400Hz (configurable)
Dimensions	Ø39.5mm × 28.5mm
Startup Time	1s
Bias	±1°/s
Bias Stability	≤12°/h
Bias Temperature Sensitivity	≤3°/s
Scale Factor Nonlinearity	≤0.1%
Threshold	≤0.05°/s
Resolution	≤0.05°/s
Bandwidth	≥80Hz
Weight	<100g
Range	±300°/s
Operating Temperature	-40°C to +80°C
Storage Temperature	-55°C to +85°C
Shock Resistance	10000g
