Name: KSACC114Q Quartz Flexible Accelerometer ±20g Range ≤70g
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSACC114Q
Price: 431.00 USD
Availability: InStock

বাড়ি > পণ্য > ইলেকট্রনিক জাইরোস্কোপ সেন্সর >

KSACC114Q Quartz Flexible Accelerometer ±20g Range ≤70g

quartz flexible accelerometer ±20g range

quartz accelerometer with warranty

fluid level meter accelerometer

Place of Origin:

CHINA

পরিচিতিমুলক নাম:

KACISE

সাক্ষ্যদান:

Model Number:

KSACC114Q

আমাদের সাথে যোগাযোগ

একটি উদ্ধৃতি অনুরোধ করুন

KSACC114Q Quartz Flexible Accelerometer ±20g Range ≤70g

পণ্যের বিবরণ

Power Voltage:

±12~±18V DC

Weight:

≤70g

Size:

Ø25.4×32mm

Resolution:

<5μg

Operating Temperature:

-45°C~+80°C

Storage temperature:

-55°C～+80°C

বিশেষভাবে তুলে ধরা:

quartz flexible accelerometer ±20g range

quartz accelerometer with warranty

fluid level meter accelerometer

পেমেন্ট ও শিপিংয়ের শর্তাবলী

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

সম্পর্কিত পণ্য

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

সেরা দাম পান

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

সেরা দাম পান

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

সেরা দাম পান

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

সেরা দাম পান

আমাদের সাথে যোগাযোগ

86--17719566736

এখনই যোগাযোগ করুন

পণ্যের বর্ণনা

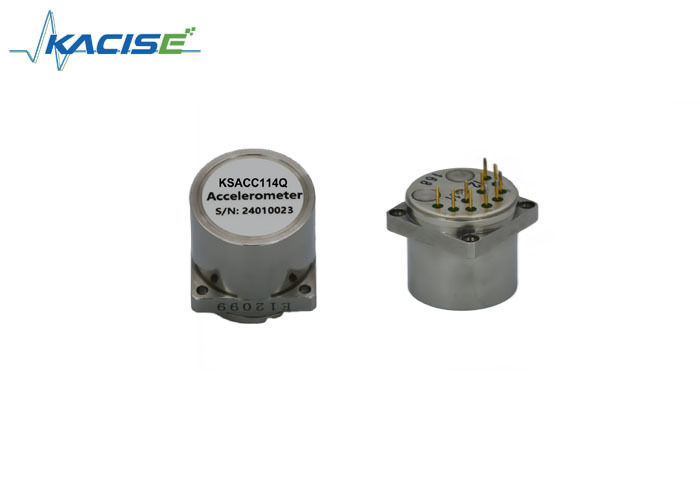

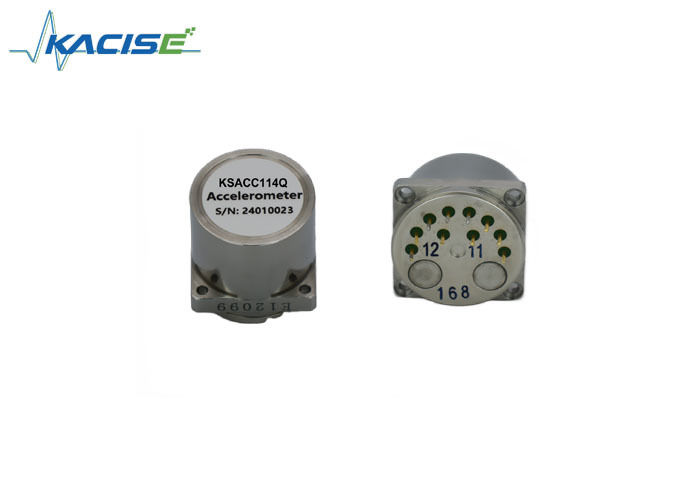

KSACC114Q Quartz Flexible Accelerometer

Product Attributes

Attribute	Value
Power Voltage	±12~±18V DC
Weight	≤70g
Size	Ø25.4×32mm
Resolution	<5μg
Operating Temperature	-45°C~+80°C
Storage temperature	-55°C～+80°C

Product Description

The KSACC114Q Quartz Flexible Accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier is subjected to acceleration, the output is precisely proportional to the input acceleration.

Our accelerometer features current output with high output impedance, allowing users to select sampling resistance according to their requirements without affecting system stability.

We offer a complete series of quartz flexible accelerometers, ranging from high-precision μg KSACC111Q models for satellite microgravity measurement to cost-effective, rugged KSACC111Q models. These products are widely used in aerospace, aviation, navigation, marine, vehicle, petroleum, and geotechnical engineering applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features

Excellent index repeatability
Analog output
Built-in digital temperature sensor
Wide load resistance range
Designed for inertial navigation systems in next-generation weaponry
Two models available

Applications

Inertial monitoring systems
Inertial navigation systems
Flight control systems
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement units
Motion monitoring equipment

Technical Specifications

Power Supply Parameters
Power Voltage	±12~±18V DC	±12~±18V DC
Product Performance
Input Range	±20g	±20g
Bias	≤5mg	≤5mg
Temperature Sensitivity	≤30μg/°C	≤50μg/°C
One-month Composite Repeatability (1σ)	≤30μg	≤50μg
Scale Factor	1.2 ~ 1.6mA/g	1.2 ~ 1.6mA/g
Temperature Sensitivity	≤30ppm/°C	≤80ppm/°C
One-month Composite Repeatability (1σ)	≤30ppm	≤50ppm
Linearity	≤15μg/g2	≤40μg/g2
Threshold	<5μg	<5μg
Resolution	<5μg	<5μg
Size	Ø25.4×32mm	Ø25.4×32mm
Weight	≤70g	≤70g
Environmental Specifications
Operating Temperature	-45°C~+80°C	-45°C~+80°C
Storage temperature	-55°C～+80°C	-55°C～+80°C
Shock	100g	100g
Vibration Peak Sine	15g@20Hz ~ 2000Hz	15g@20Hz ~ 2000Hz
