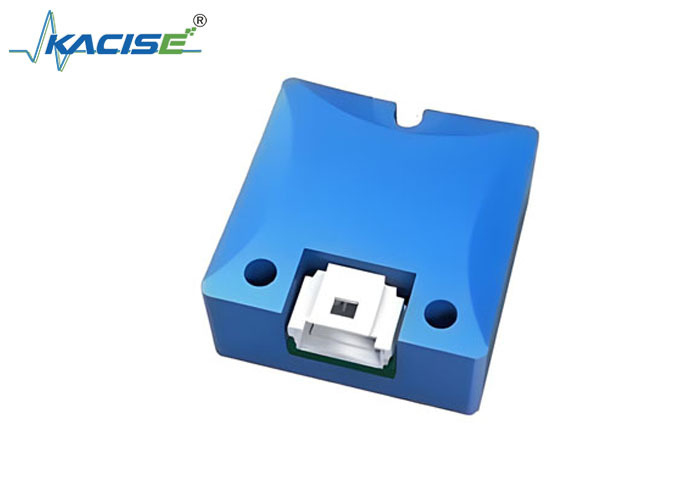

KSIMU010M High-Performance 6-Axis IMU Sensor 100Hz Output

The KSIMU010M is a durable, industrial-grade high-performance Inertial Measurement Unit (IMU) based on MEMS accelerometers and gyroscopes, offering a highly cost-effective solution for various applications.

• Precision-calibrated 6-axis inertial system
• 3-axis gyroscope and 3-axis accelerometer output
• Data output rate: 100 Hz (optional 1000 Hz)
• Measurement range: Gyro ±500 °/s, Accelerometer ±16g
• Bias instability: Gyroscope 2 °/h, Accelerometer 0.1 mg
• Compact size: 22.4 * 22.4 * 9.0 mm
• Lightweight: <10 g
• Wide temperature range: -40 ºC to +85 ºC

• Anti-vibration and posture control in industrial applications
• Automation machinery
• Robot control
• Platform stability and control
• Instrumentation

Compact and lightweight, the KSIMU010M features an ultra-durable aluminum alloy housing, ensuring high reliability even in harsh environments. It has been widely used in dynamic control and attitude systems including unmanned aerial vehicles (UAVs), remotely operated vehicles (ROVs), smart agriculture, machinery control, platform stabilization, AGVs, and robotics.
